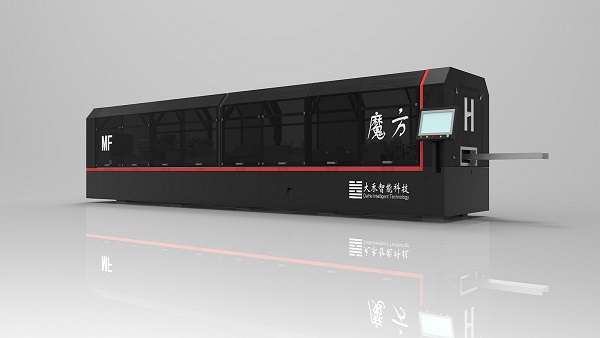

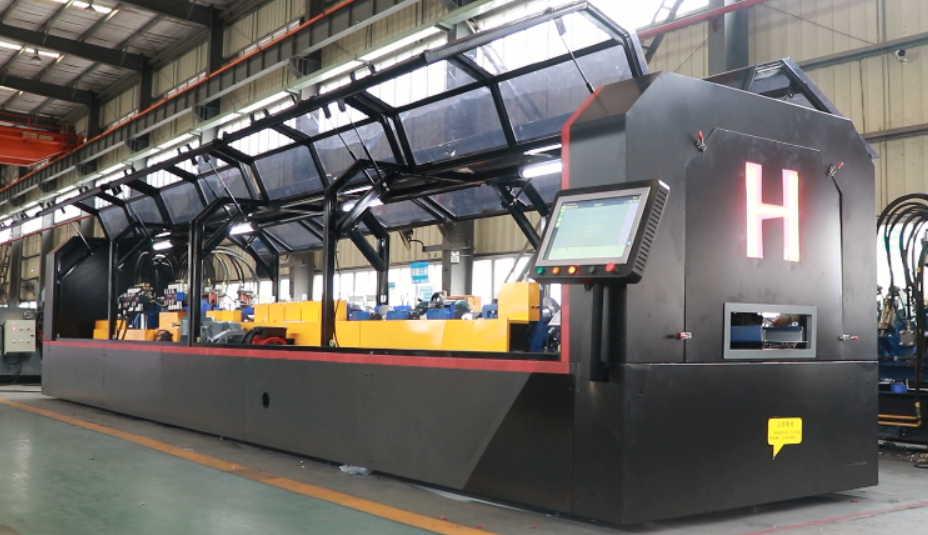

Light Gauge Steel Framing Machine MF300

1、Product specification

2、flow chart

Hydraulic Decoiler→ Feed And Leveling Device→ Hydraulic punching→ Roll Forming System→ Hydraulic Cutting→ Product Support Frame

Machine Components

1.Hydraulic Decoiler

Tightening of coil: By Hydraulic

Weight capacity of decoiler : 4.0T

2.Feeding and Leveling Device

It used for making the material flat before feeding into the roll forming machine

11 rollers (five upper and six lower)

3.Hydraulic Punching

PLC control punching system.

Punching Type: Hydraulic Punching

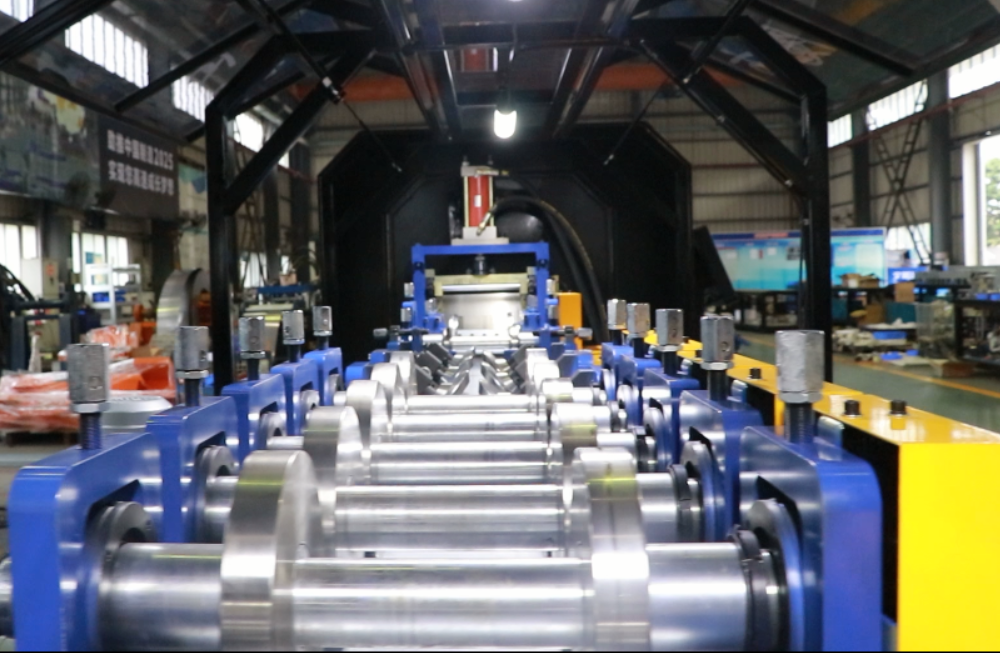

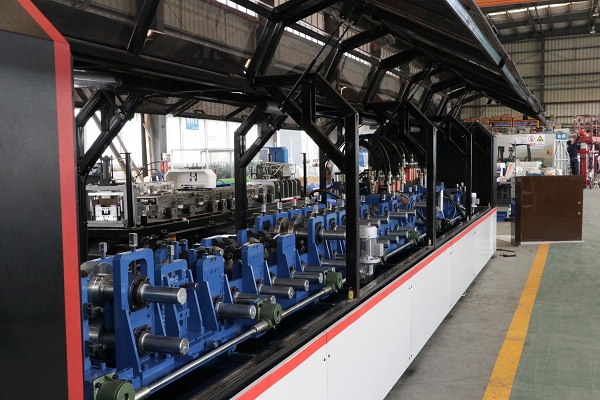

4.Rolling Forming System

Main motor type: Servo motor

Drive by double chains

18 group’s rollers

5.Hydraulic Cutting

Cutting type: Hydraulic cutting

6.Online Printer

Integrated ink jet (single sprinkler head, fixed side waist and high spray)

7.Safety Covers Guard

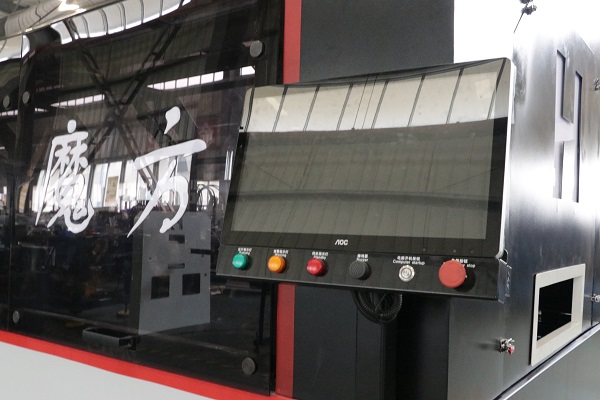

8.Industry computer control panel

9.Product support frame

10.PLC Control System

Control the quantity &punching length& cutting length automatically
