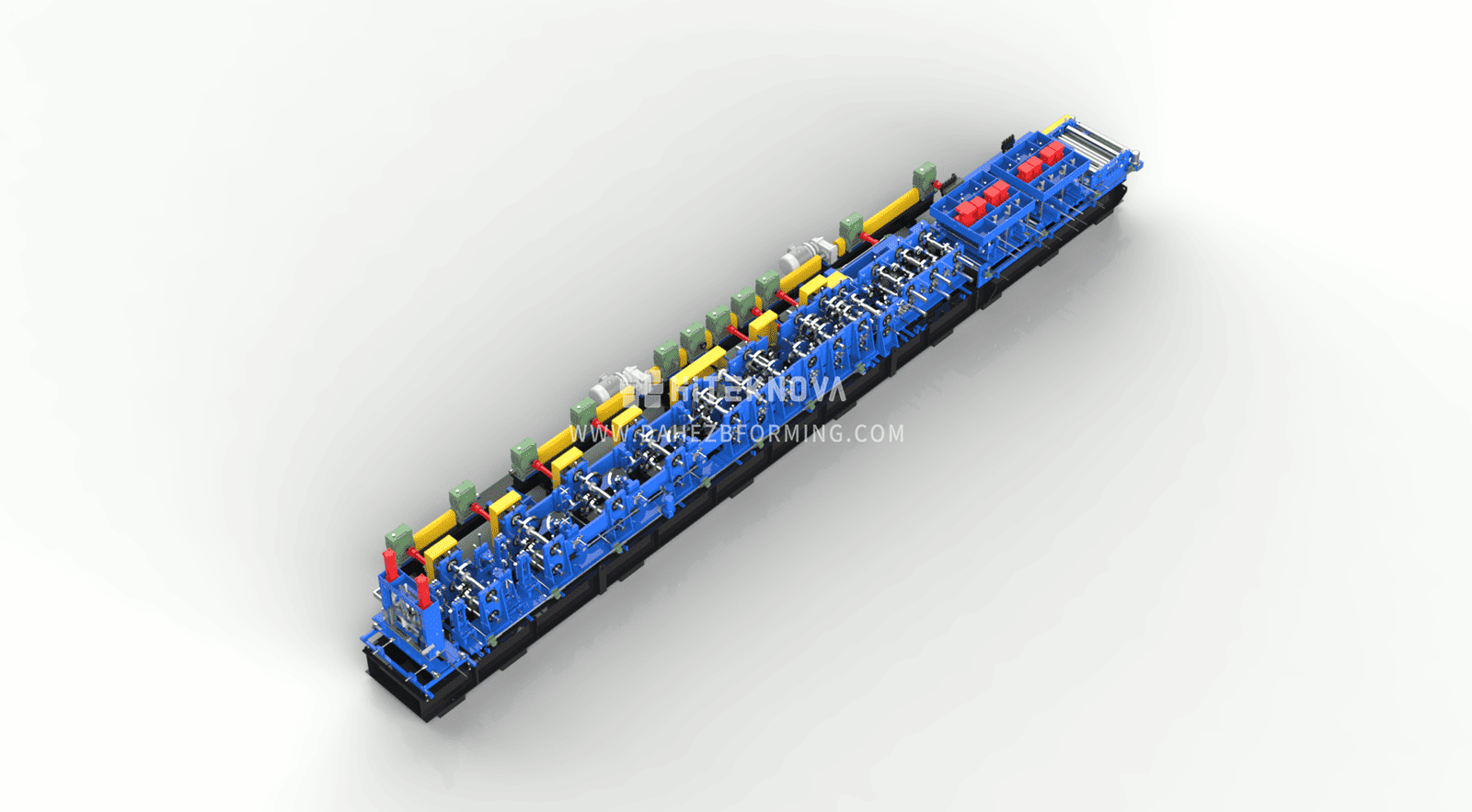

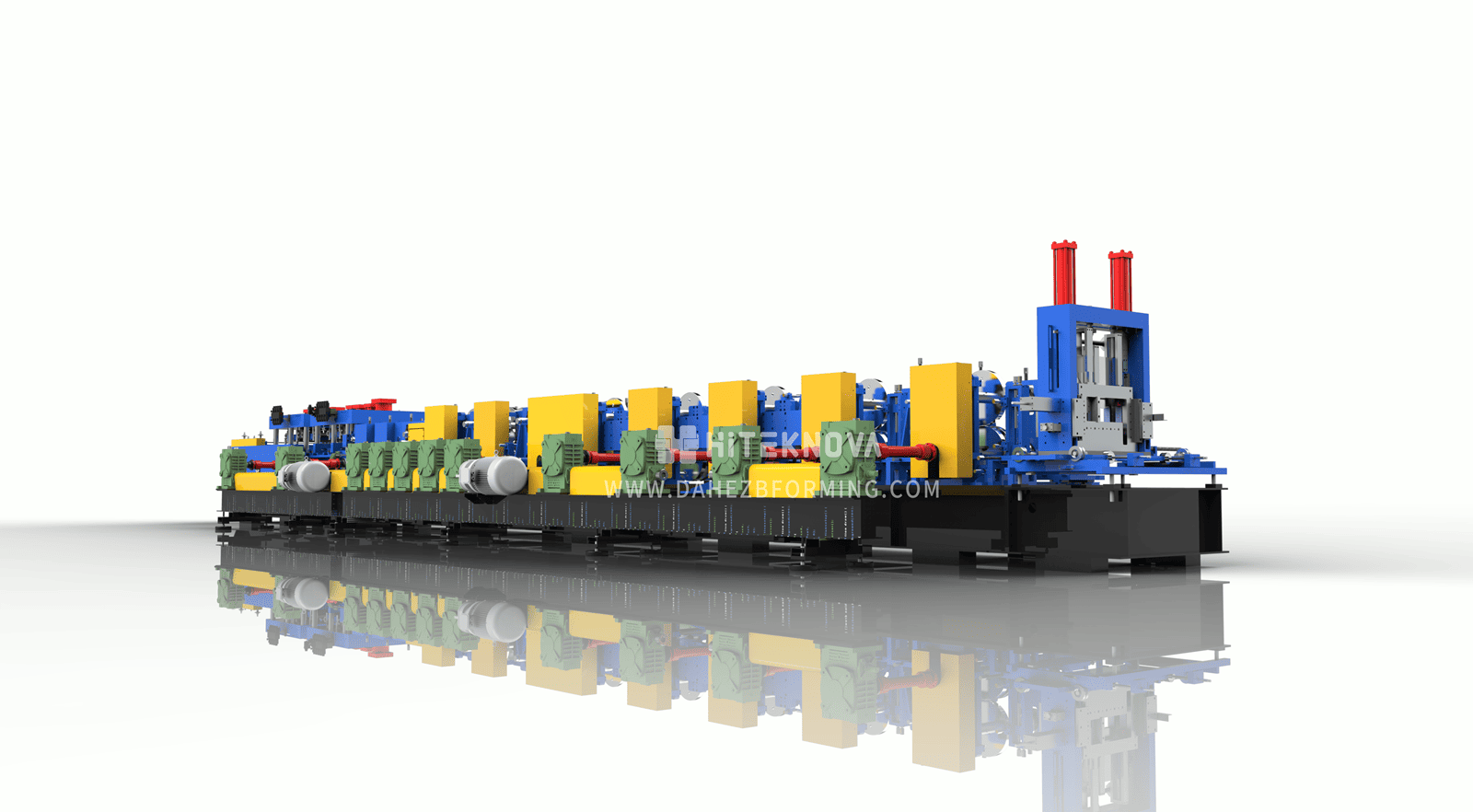

Automatic C/Z Purlin Roll Forming Machine FX450T

The HITEKNOVA FX450 Series is an advanced and highly versatile roll-forming system engineered for industrial and commercial construction. Designed as a CZ integrated solution, the FX450 specializes in producing a wide range of large-format, high-variation purlin profiles, meeting the demanding requirements of modern steel structure projects. With exceptional forming precision, wide size flexibility, and intelligent production control, the FX450 delivers superior performance and reliability for medium to large-scale construction applications.

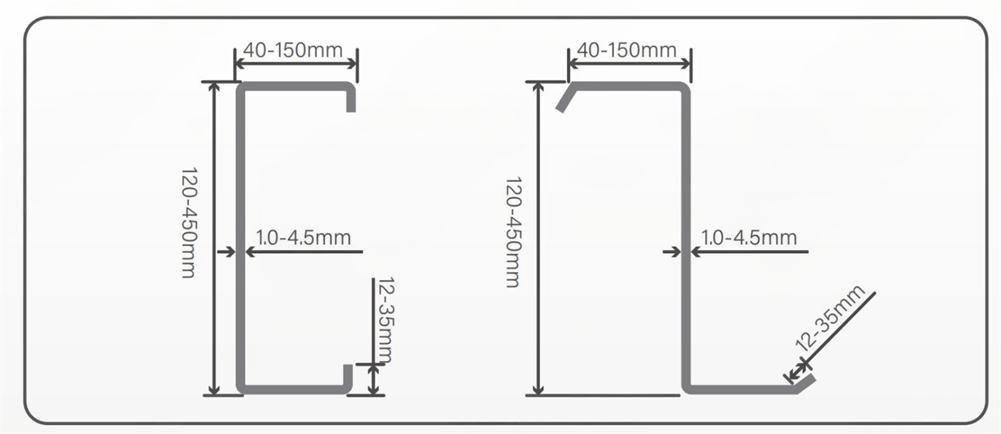

Supporting fully automatic transitions between C and Z profiles, the FX450 covers C-profile widths from 120–450 mm and Z-profile widths from 120–450 mm, with web from 40–150 mm and material thicknesses from 1.0–4.5 mm. Operating at a high forming speed of up to 30 m/min, the FX450 achieves punching and cutting accuracy within ±1 mm, ensuring consistent dimensional quality across every product.

Advantages of the FX450

1. High-Performance Servo System

Equipped with top-tier domestic servo motor brands, the system delivers a production efficiency increase of over 30%, enabling significant improvements in product quality, forming precision, and operational stability.

2. Upgraded Intelligent Control Platform

A next-generation smart control system provides superior operational logic, improved responsiveness, and seamless integration with modern manufacturing environments, supporting the transition toward intelligent production.

3. Premium and User-Friendly Operation

Featuring laptop-based input and mobile workstation capability, the FX450 allows flexible operation anytime and anywhere—making production management simpler and more efficient.

4. Intelligent Fast-Input Software

Automated parameter entry reduces manual programming efforts, saving approximately 2–3 hours of work per day and significantly improving overall workflow efficiency.

5. Flexible and Convenient Auto-Sizing

Digital automatic size adjustment combined with one-touch rapid mode switching ensures safe, stable, and efficient transitions between different purlin specifications.

6. Smart Cloud-Based Management

Integrated cloud control enables real-time monitoring of equipment status, production data, and workshop operations, achieving a fully data-driven intelligent manufacturing environment.

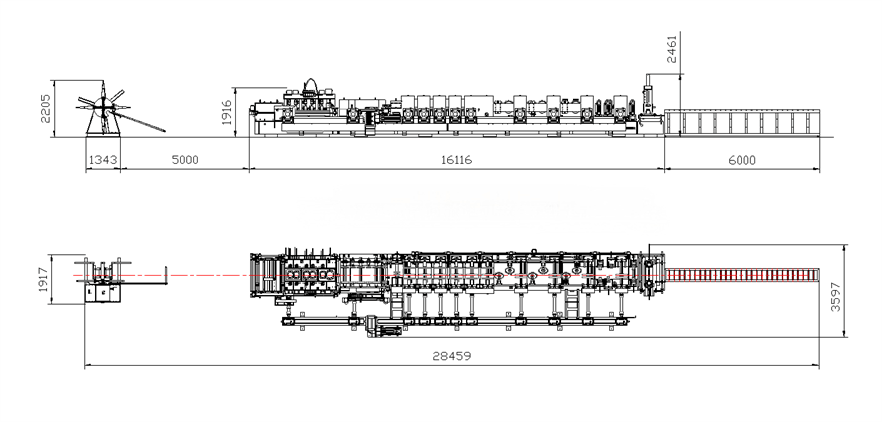

Flow chart: De-coiler – Leveling device — roll forming parts—Post punching device—Hydraulic cutting – stack

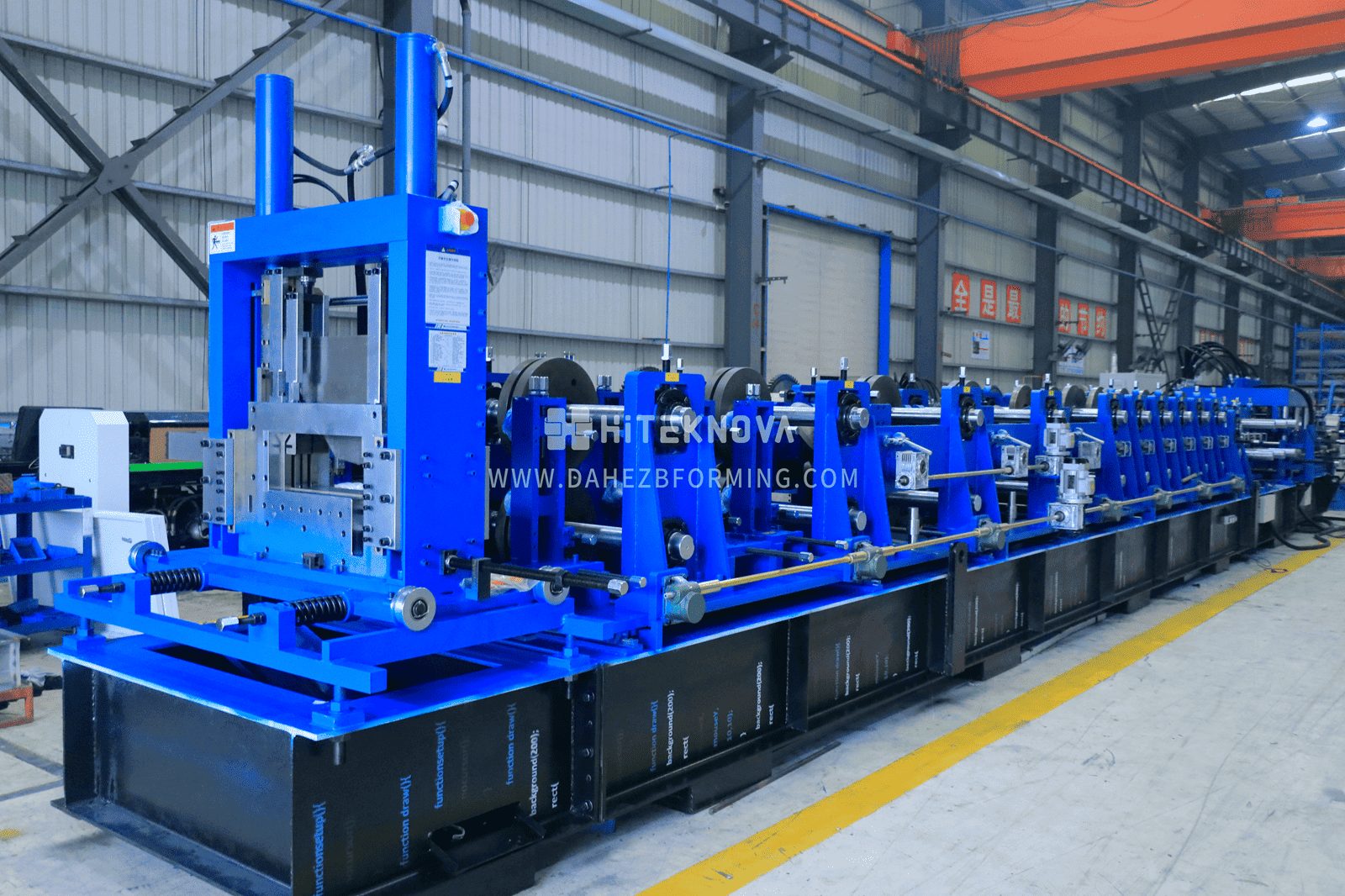

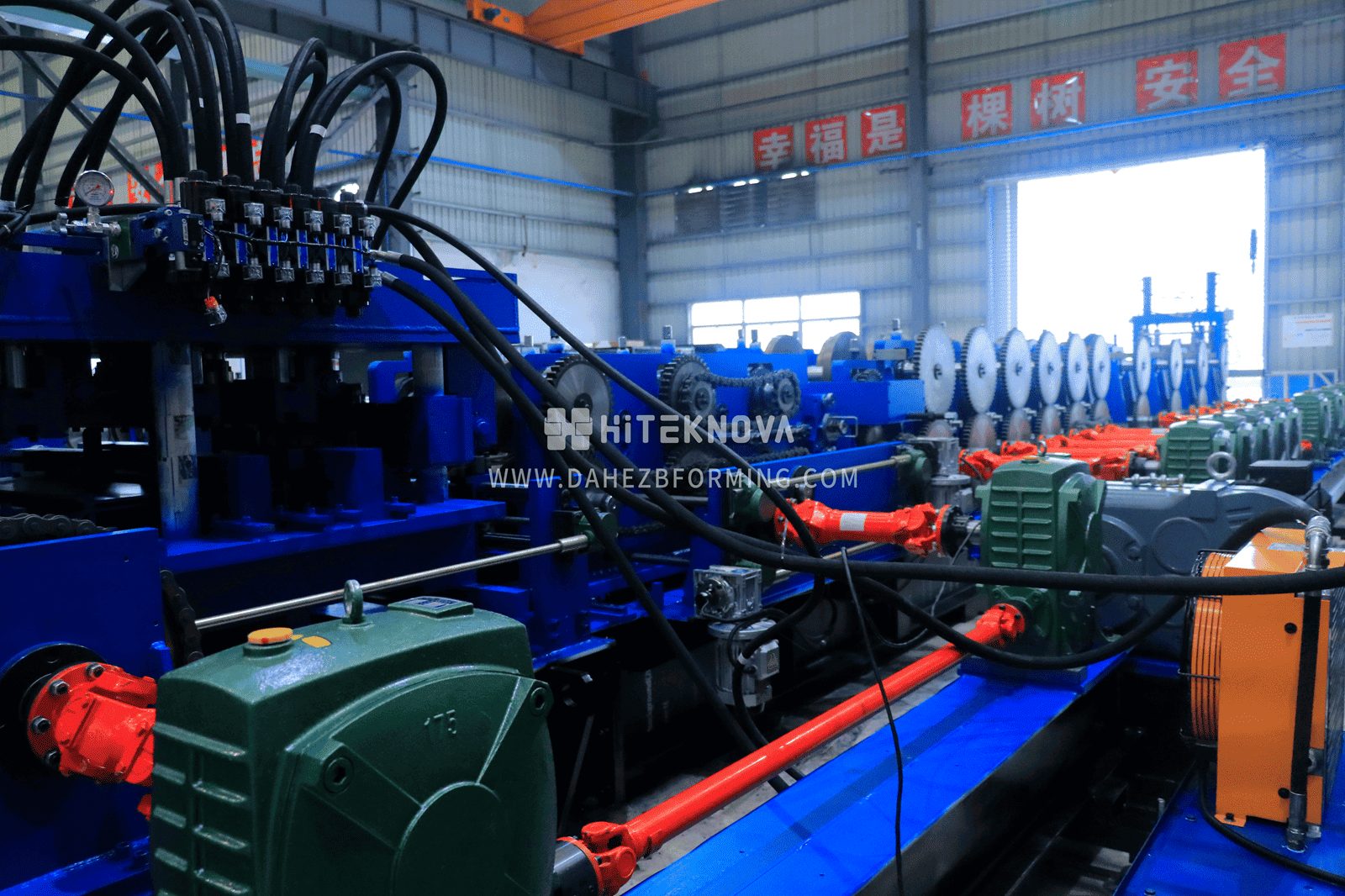

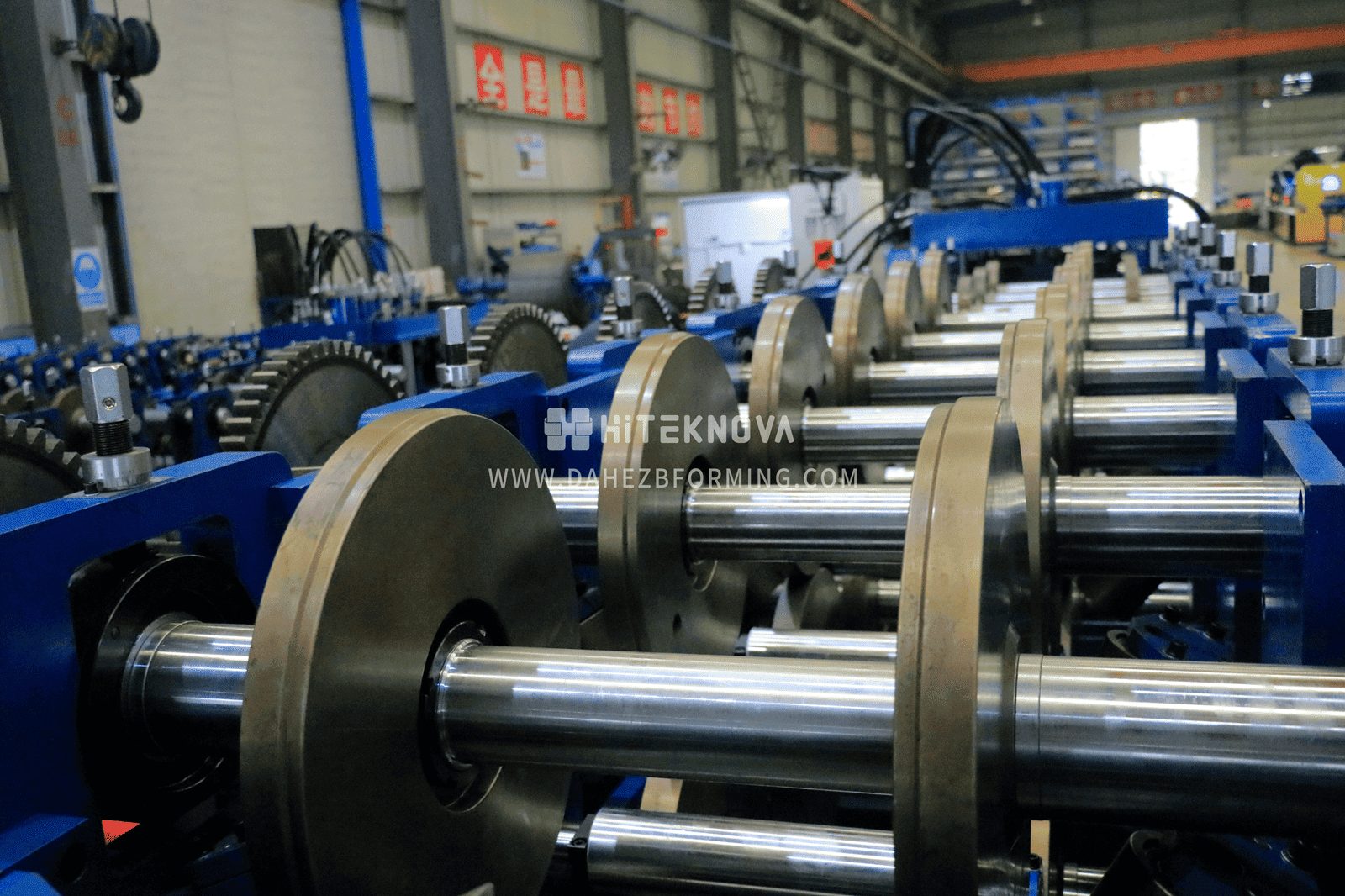

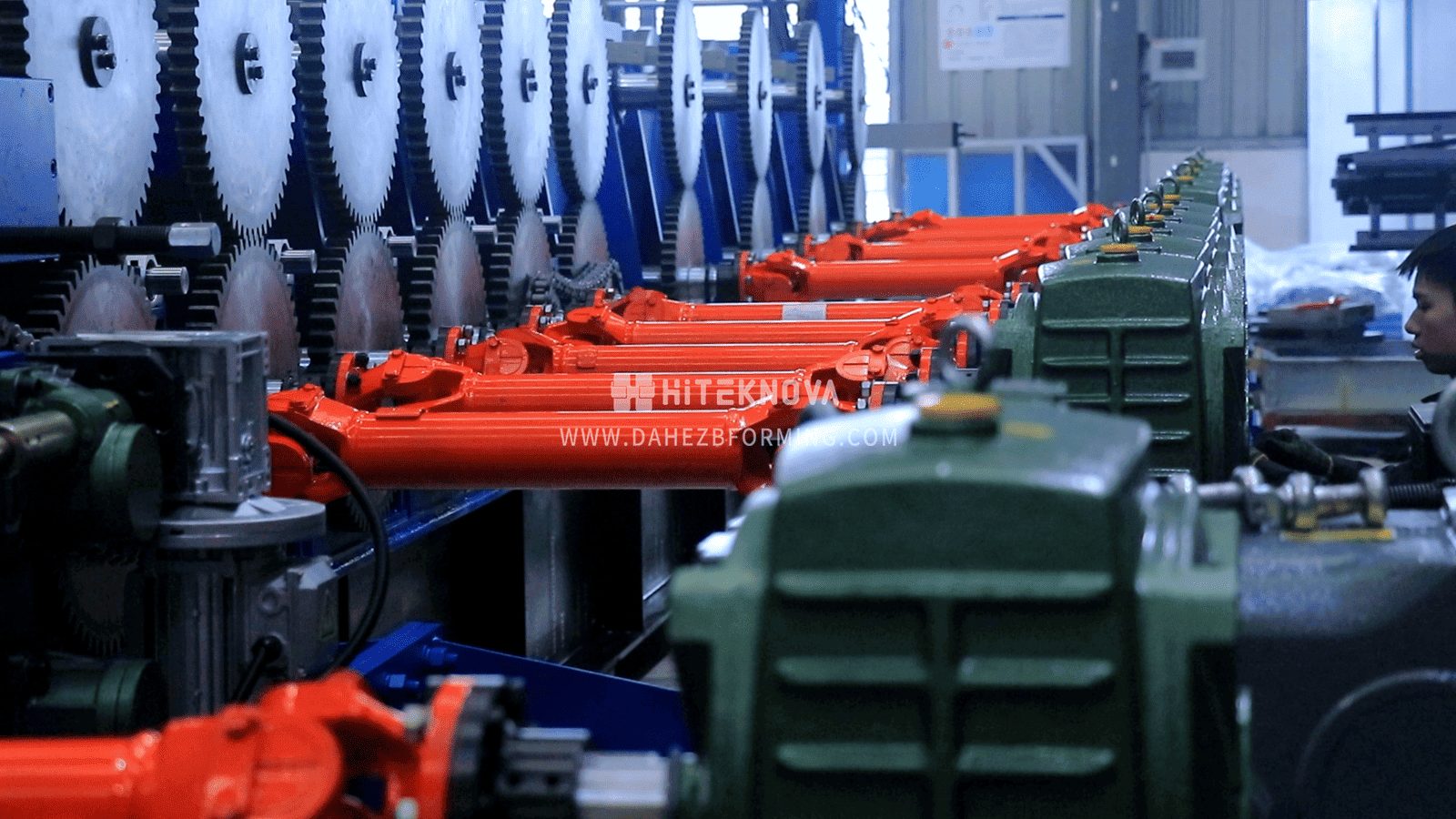

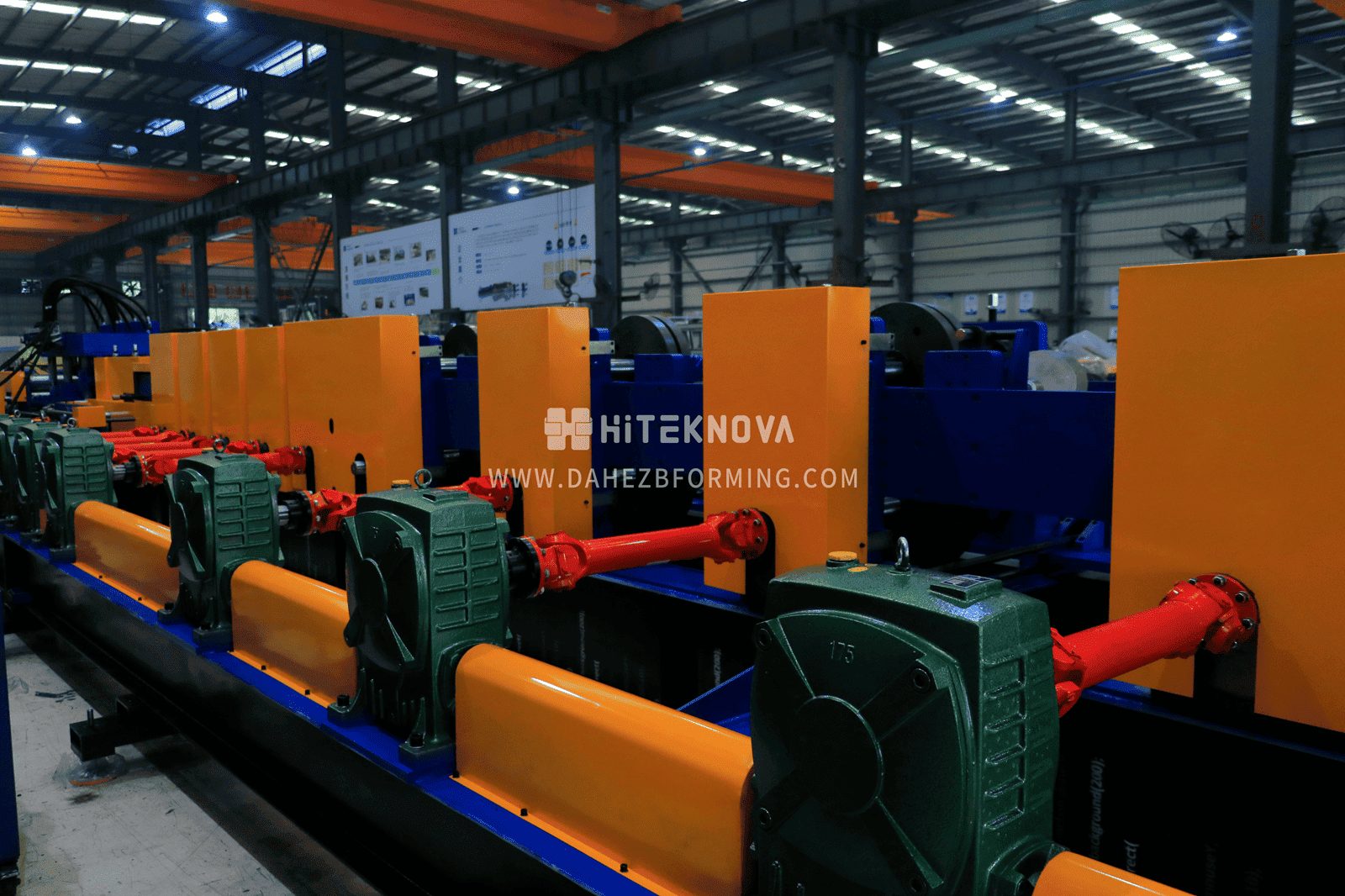

Machine picture

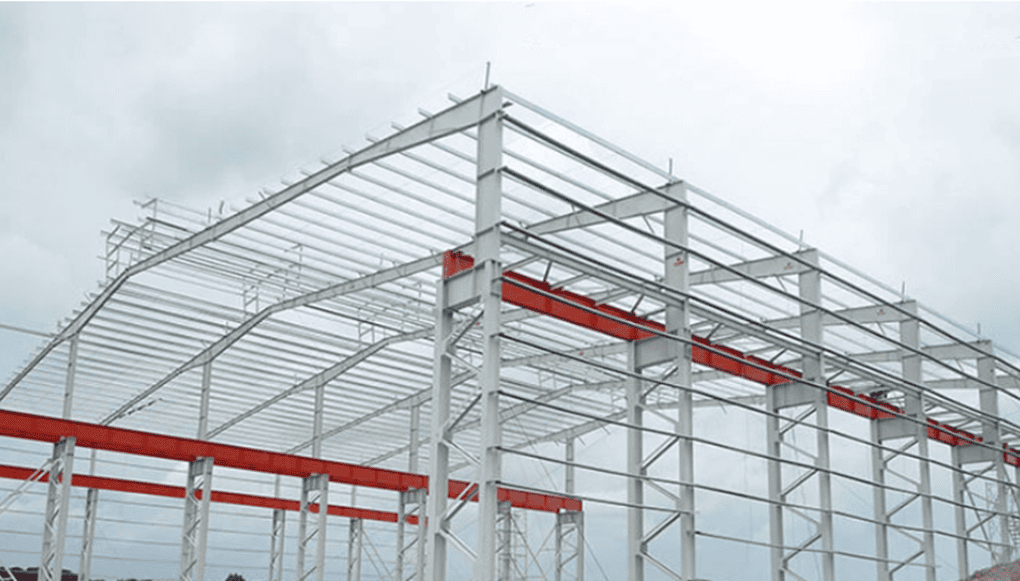

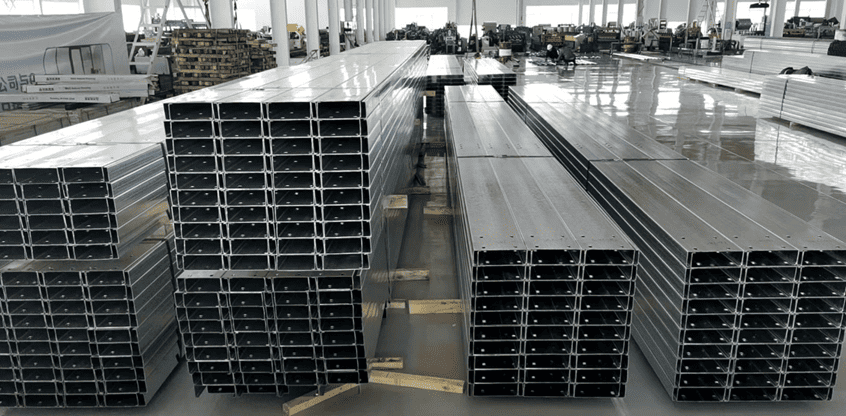

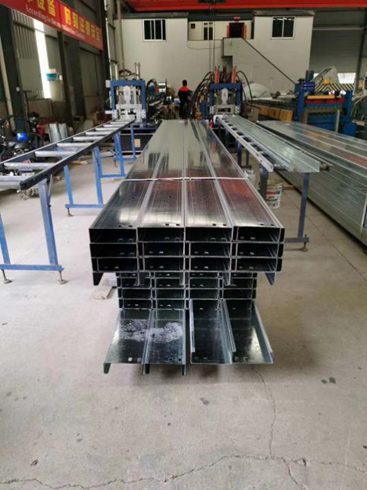

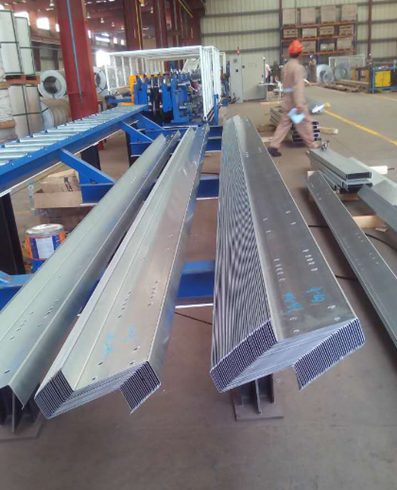

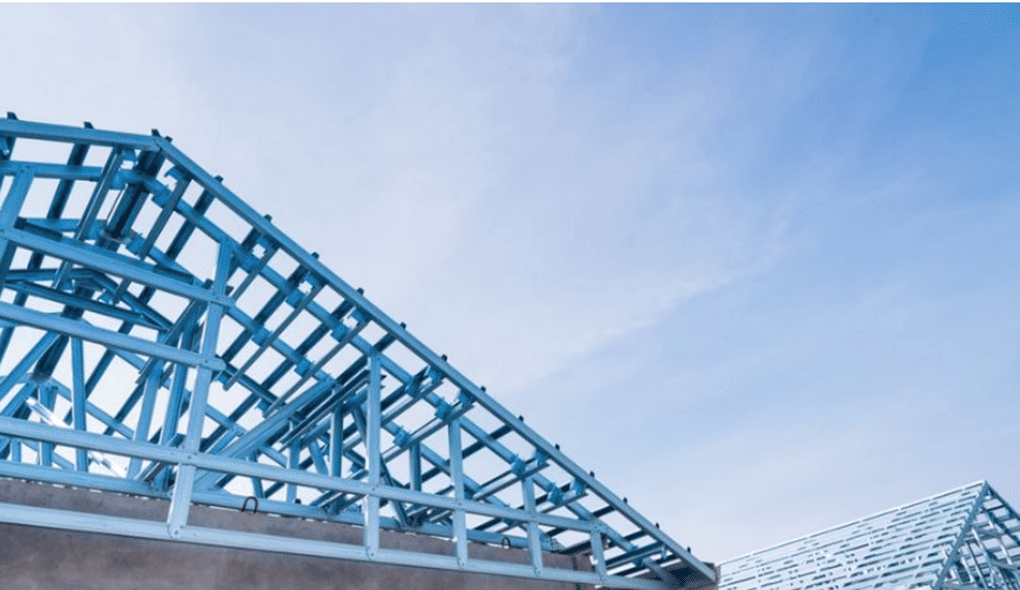

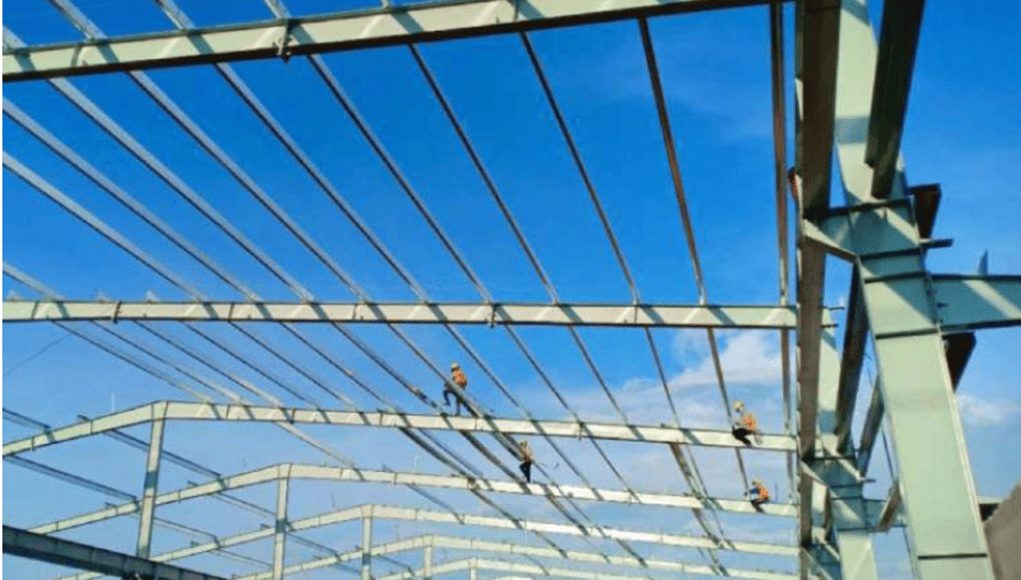

Application
