DETAILS

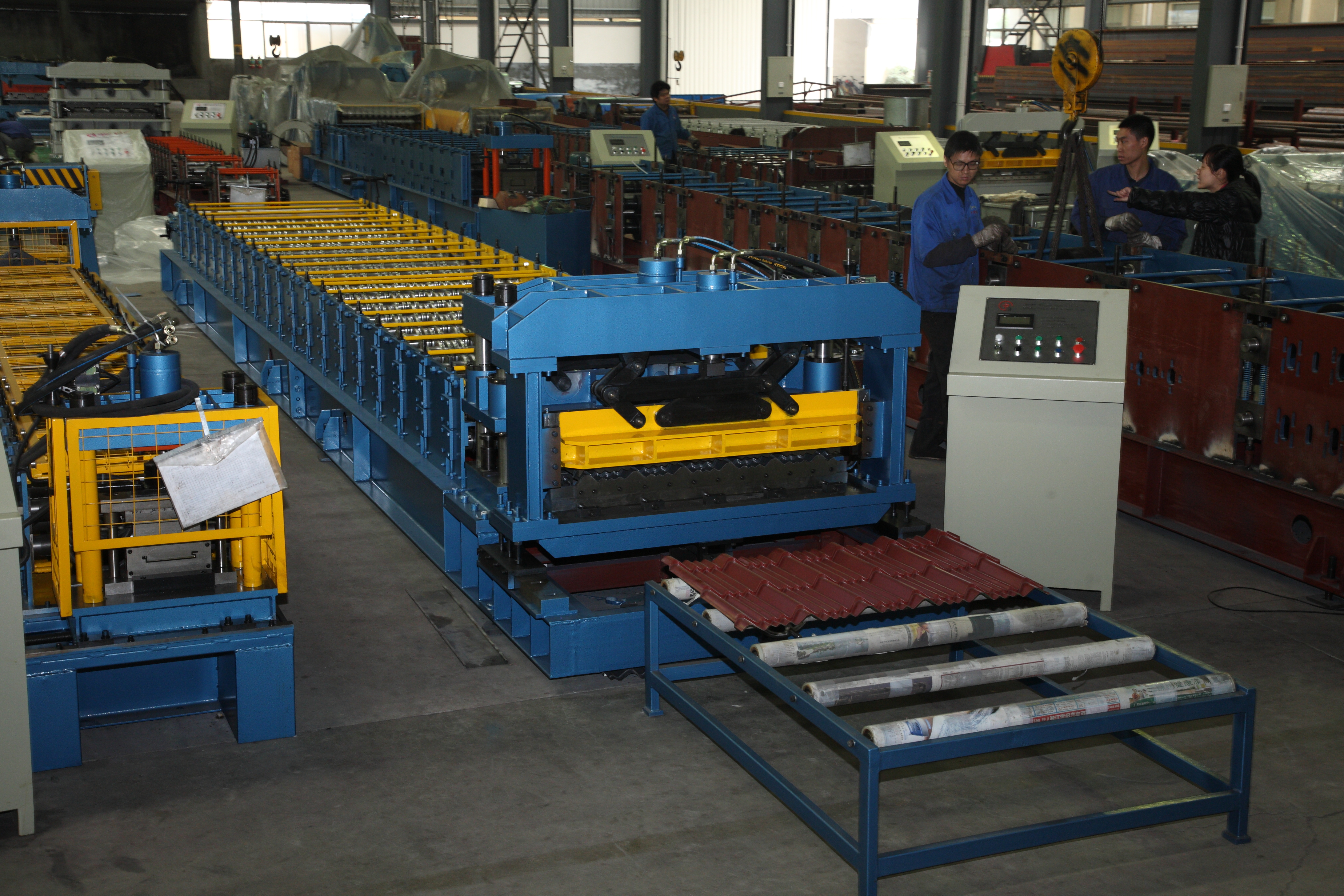

tile forming machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.

Technical Parameter:

Item Specification


Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.4-0.6mm
Yield strength 235Mpa
Roller material No.45 forged steel
Forming speed About 10m/min
Output speed 0-3m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor 5.5KW
Hydraulic station motor 5.5KW



  1. Components
Decoiler 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic pressing system 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set



Advantages

1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4.  Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available

Product Features

1.Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products
3. The operation automatically minimizes the tolerance of cutting length.

Products Feature

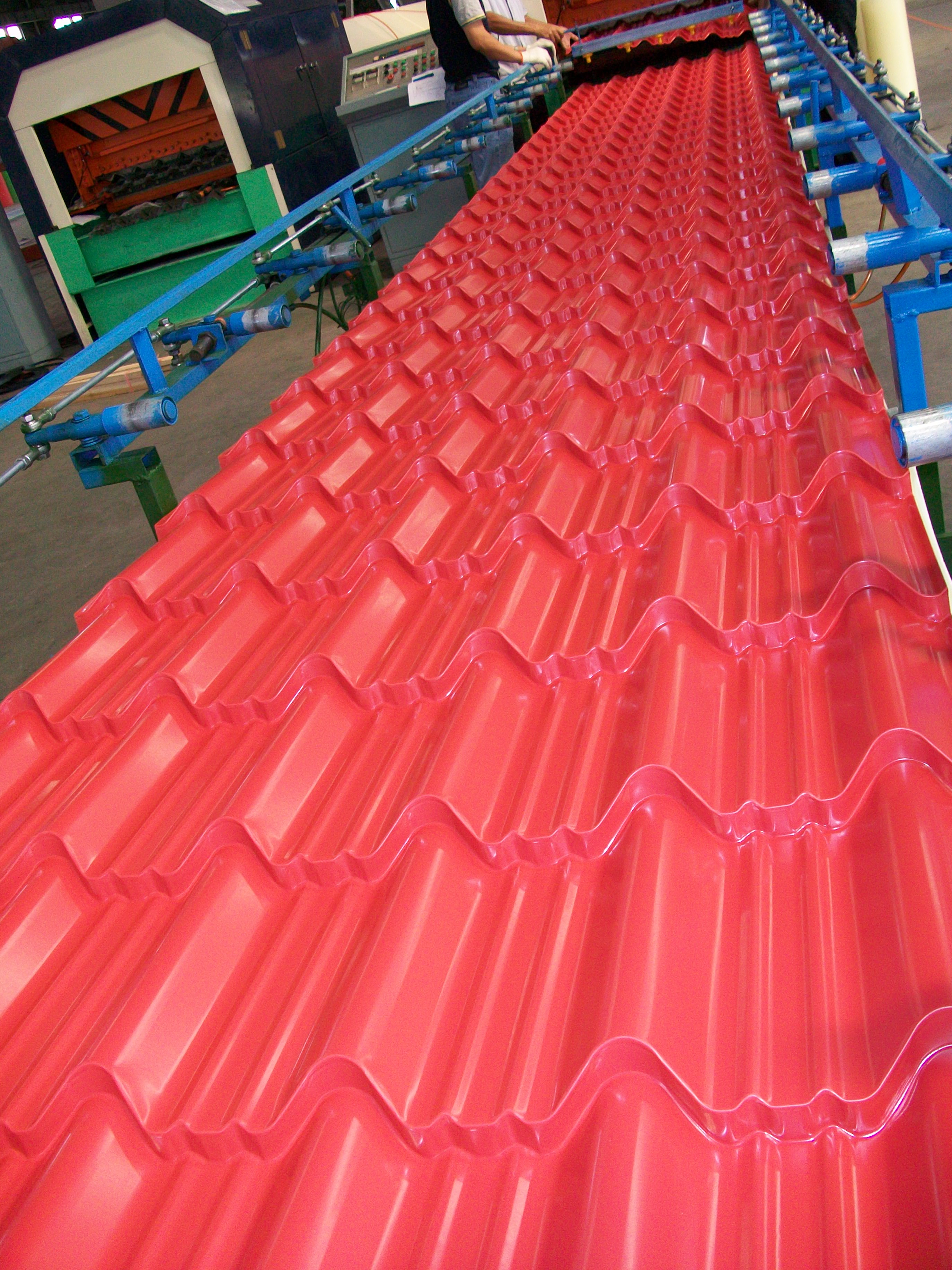

1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color,  elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.
