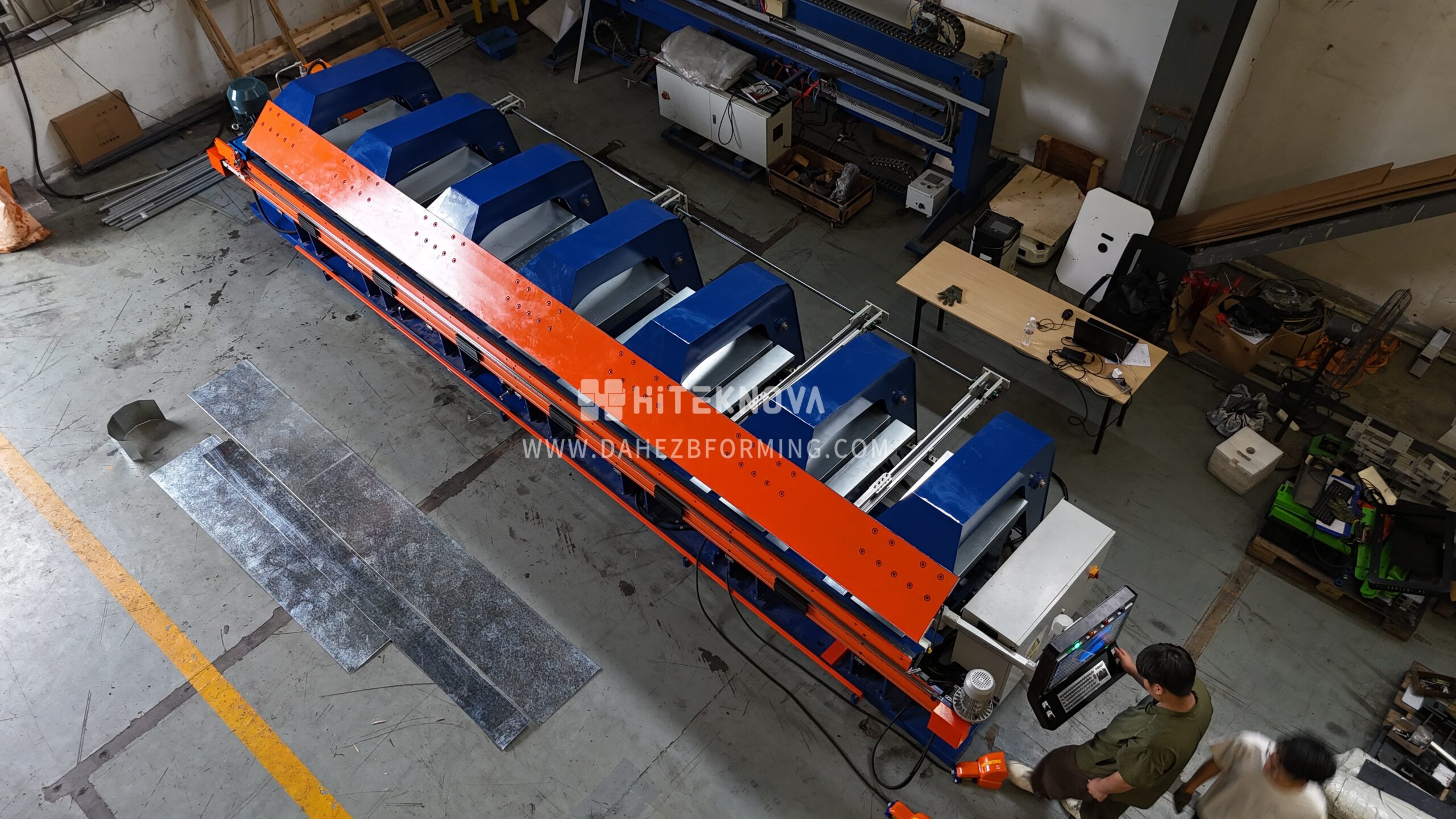

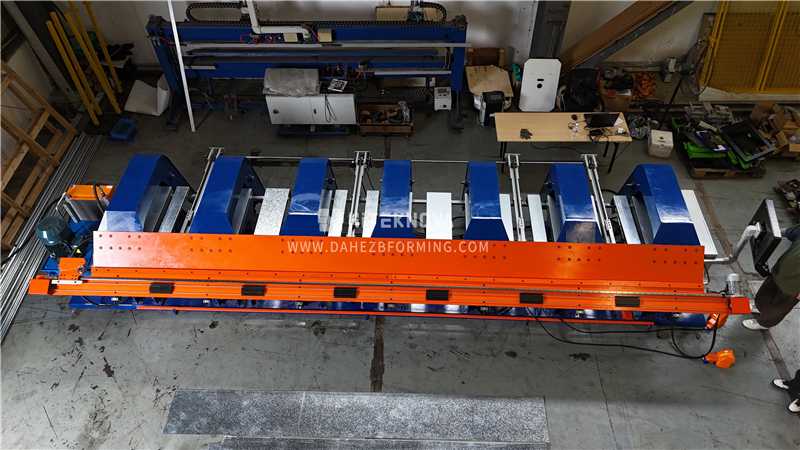

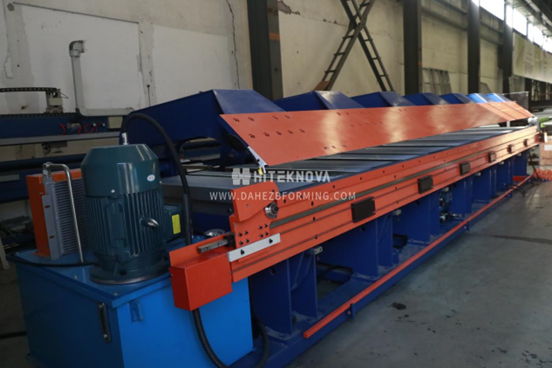

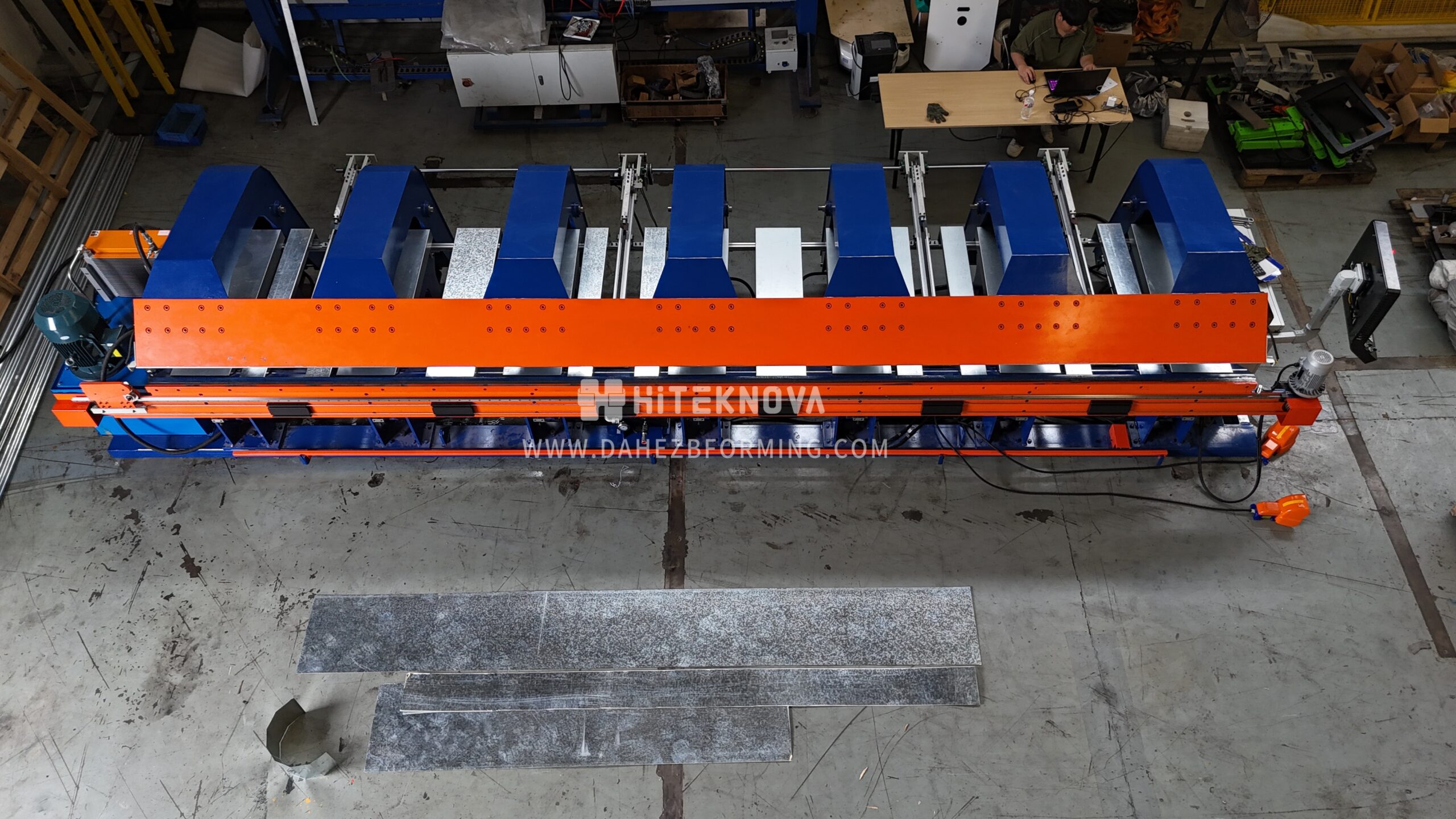

The 6.5m Hydraulic CNC Press Brake is engineered for precision bending of steel plates, aluminum plates, and stainless steel. With a maximum bending length of 6500mm and a bending angle of up to 130°, it delivers outstanding accuracy and repeatability for demanding sheet metal fabrication. Powered by an 11kW hydraulic system with an Inovance inverter, the machine ensures stable, energy-efficient operation. Its advanced XBIM CNC control system, featuring a 21-inch touchscreen, automatically generates bending programs and provides intuitive 3D visual guidance for faster setup and improved productivity. Fully compliant with CE standards and equipped with premium Schneider Electric components, this CNC press brake combines intelligent automation, reliable performance, and long-term durability for modern metal fabrication industries.
| I.Basic Specifications | |
| Machine Name | 6.5m Hydraulic CNC Sheet Metal Bending Machine BM6500-T |
| Overall Dimensions | L×W×H：7800mm×1550mm×1400mm |
| Weight | Approx. 5.5T (configurable based on bending thickness requirements) |
| Machine Color | Main body in blue, with orange trim (or by customer request) |
| Total Power | 12KW |
| Operation Mode | Hydraulic CNC |
| II. Products & Efficiency Specifications | |
| 1、Material | |
| Applicable Materials | Steel plate, aluminum plate, stainless steel |
| Thickness Range | Q235 Steel: 0.4mm ~ 2mm Aluminum plate: 0.4mm ~ 3.0mm Stainless steel: 0.4mm ~ 1.5mm |
| 2、Feeding Auxiliary Positioning | |
| Drive mode | Servo motor drive |
| Servo power | 0.75KW |
| Feed throat depth | 1250mm |
| 3、Slitting Function | |
| Drive Mode | Motor-driven |
| Motor Power | 0.75KW |
| Tool Type | Slitting wheel, diameter 80mm |
| Max. Slitting Length： | 6500mm |
| Max. Slitting Thickness | 1.0mm |
| Slitting Speed | Approx. 48 m/min |
| Guiding Device | Steel cable reciprocating cycle |
| Slitting Unit Mounting Position | On the lower turnover plate |
| 4、Bending Function | |
| Bending Angle | 0–130 degrees |
| Throat Depth | 1250mm |
| Max. Bending Length | 6500mm |
| Min. Bending Size | 14mm |
| Number of Press Arm Bases | 7 sets (configurable based on bending thickness and length requirements) |
| Number of Hinge Groups | 7 groups (configurable based on bending thickness and length requirements) |
| III. Hydraulic System | |
| Hydraulic Power | 11KW |
| Number of oil cylinders | 7 sets |
| Drive unit | Inovance MD520 Inverter |
| IV. Control System | |

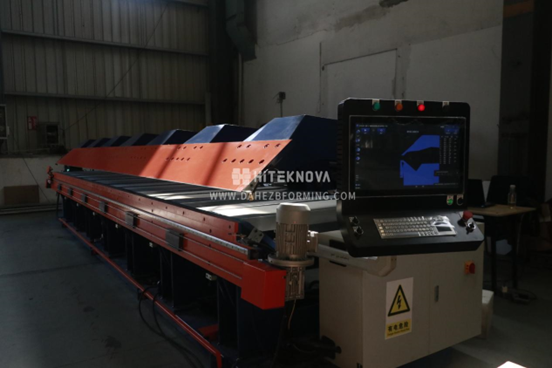

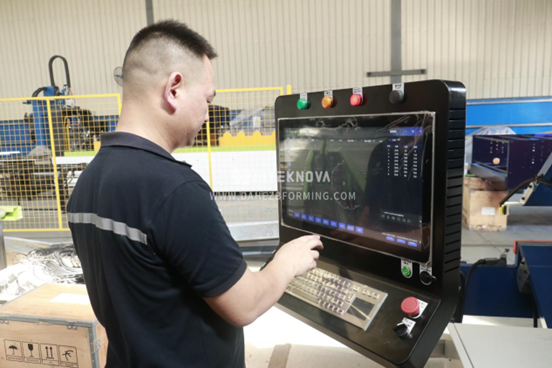

| Console | 21-inch color display |
| electrical components | Including foot switch, photoelectric limit switch |
| Electrical Wiring | In accordance with CE standards |
| Control Software | XBIM-M-BM Bending Control Program |
| Software Features | 1.Supports quick profile generation via manual point setting |
| 2.System can automatically generate bending processes | |
| 3.Equipped with animated visual reminders during bending | |
| Electric Control Cabinet | Controlled by Inovance bus PLC, with imported Schneider electric components |
Machine Video:

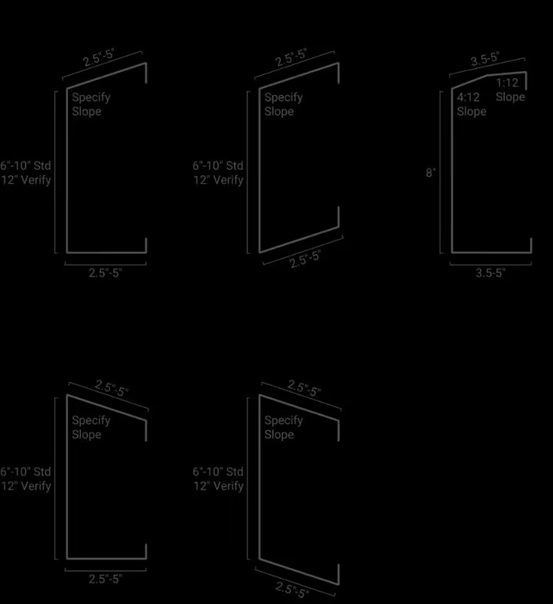

Some profile designs are for reference only and can be customized as required.
