DETAILS

Component and Function
1. Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement.
2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

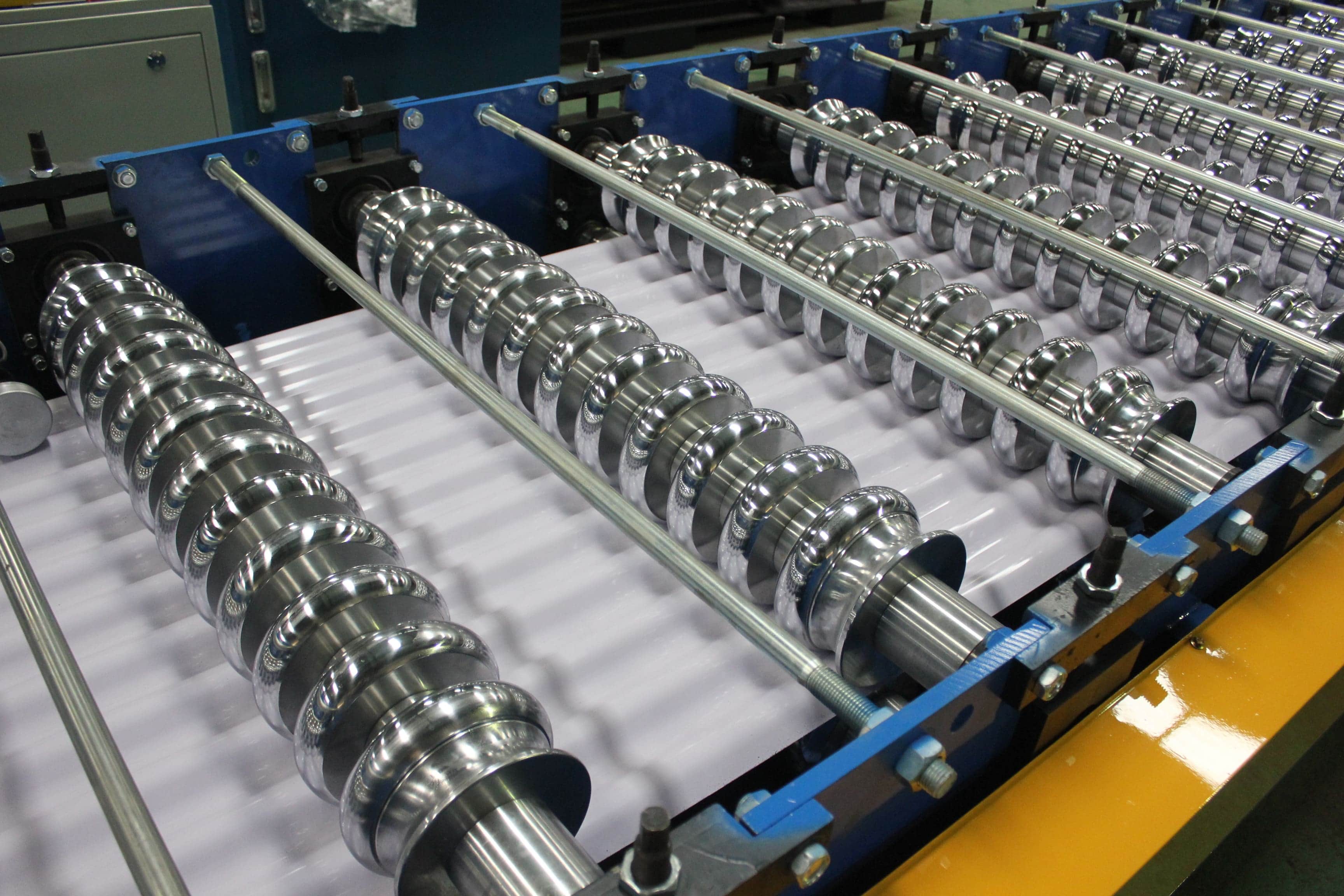

3. Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool..

Product Advantage

1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available

Product Feature

1.Designed by experienced R&D members with lifetime services.

2. Introduced Mitsubishi PLC with touch screen.

3. Need only one worker (minimum) to operate

4. Roller cover with 0.05mm chrome, ensure lifetime>10years

5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.

6. Product cut-to-length.

7.72mm diameter solid steel shaft

Designated use
1. Some final products for Automobile.
2. Some final products for Building, such as for Roofing / Ceiling / Wall materials, and dry wall (track and stud) material.
3. Some final products for Gate-Panel, Guard-Panel and sound insulation

Technical parameter:

Item Specification


Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.4-0.7mm
Yield strength 235-345Mpa
Roller material 45#Chrome steel
Forming speed About 20m/min
Output speed 20m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Panasonic PLC
Operating mode Button +Panasonic Touch screen
Main motor power(kw) 7.5KW
Hydraulic station motor power(kw)  2.2 KW

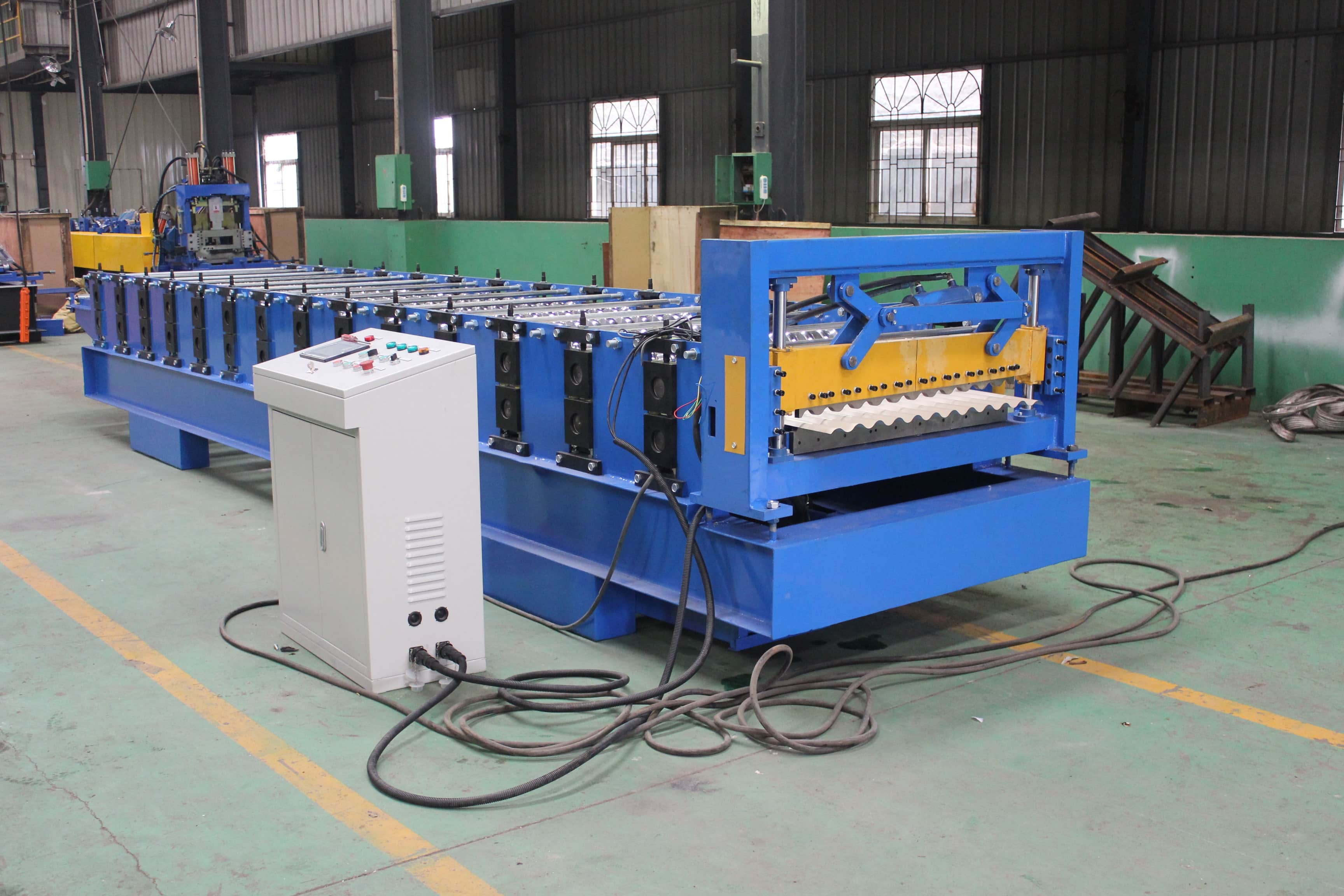

Components of machine:

Decoiler 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set
