DETAILS

Quick details




Model number: MC50-250

Condition: New

Work Pressure:

Type: C/U Purlin machine

Place of Origin:Xiamen, China

Brand Name: dahezb

Production Capacity: 8-15M/min

Voltage: 380V

Power(W): 11KW

Dimension

Weight:

Certification: ISO CE

Warranty

After-sales service

Machine Function: C and U profile forming

Machine running

Appearance:

Control System: PLC

Decoiler

Cutting blade: Cr12

Color: Blue

Features of C/U Roll Forming machine:

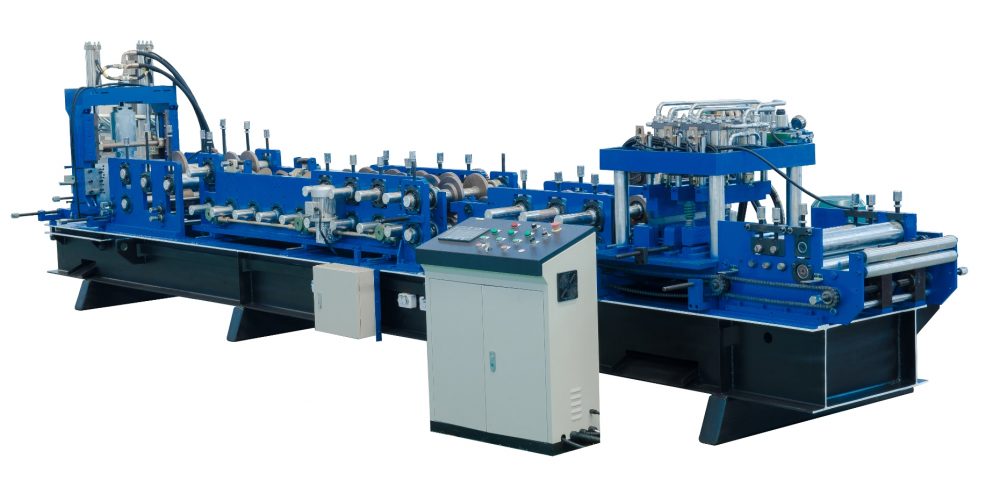

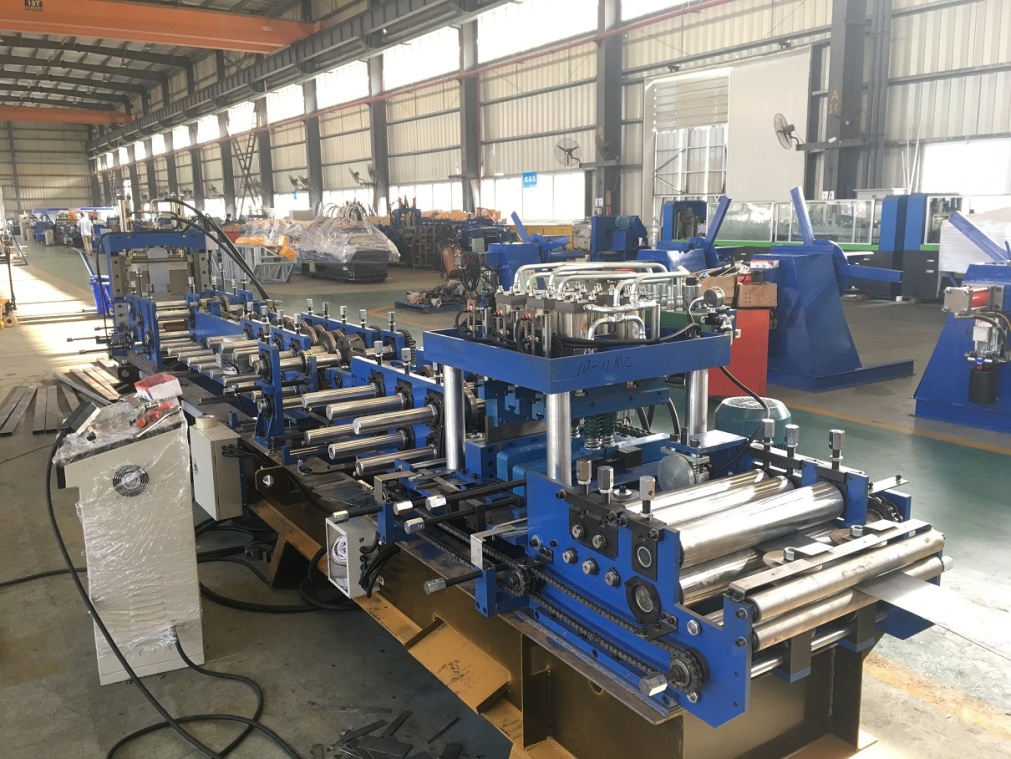

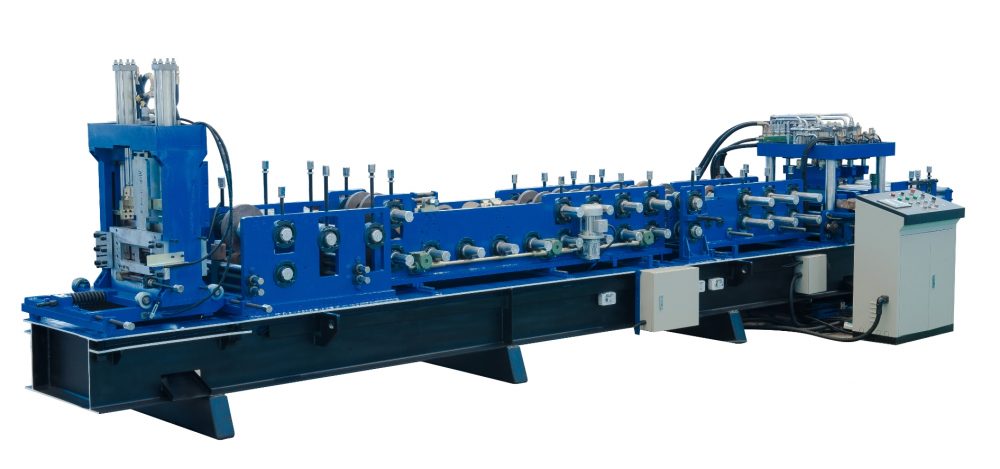

Our CU50-250 C/U Roll Forming machine consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special quick change feature: Assemble with liner guide way to make machine change web size easily and smoothly

Produce standard products with yield strength up to 345Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

CU50-250 C/U Roll Forming MachineCU50-250 C/U Roll Forming Machine

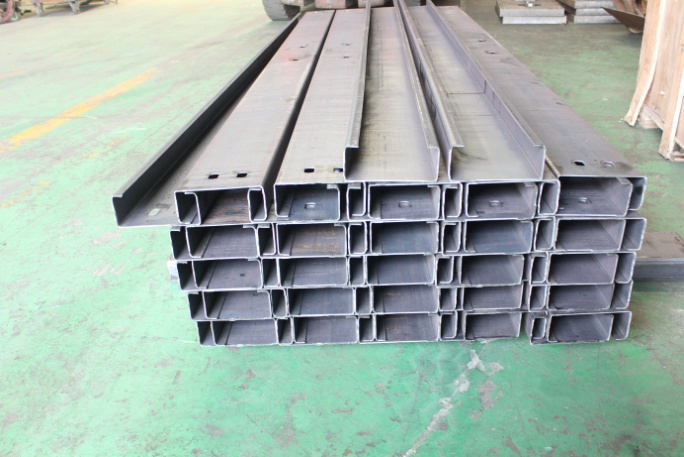

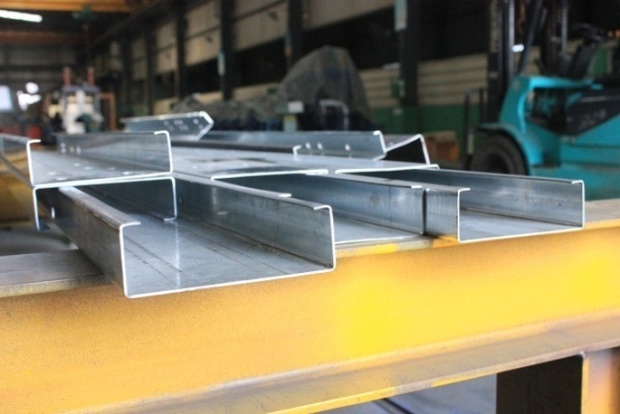

Suitable material Cold rolled coil, hot rolled coil, galvanized coil

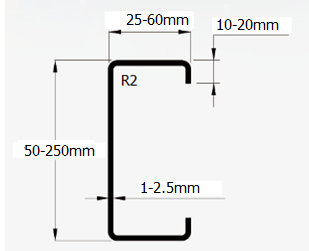

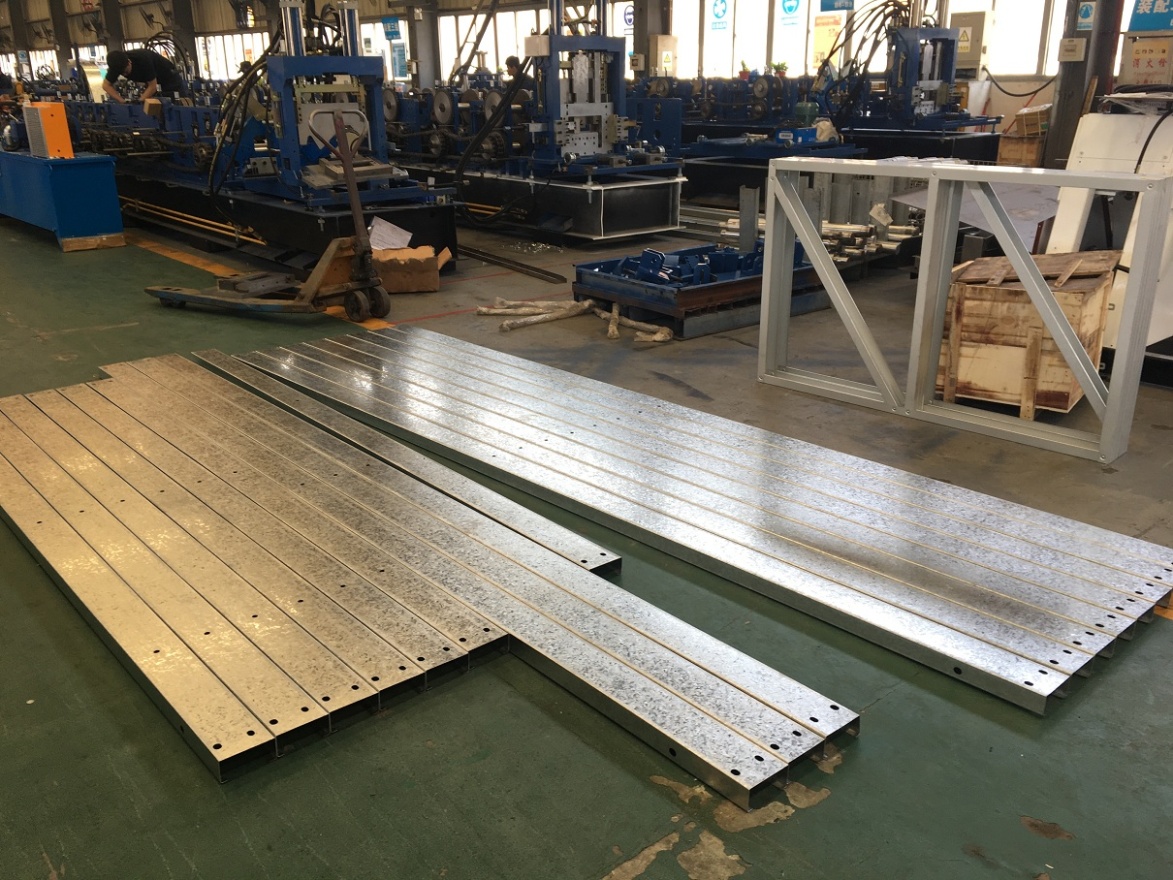

Product Spec

Variable size C

  -Width : 50-250mm

-Height :25-60mm

-Lips : 10-20mm

 Thickness: 1.0-2.5mm

 Inner angle: R2

Variable size U (Additional function)

 -Width :  50-250mm

-Height : 25-60mm

  Thickness :1.8-2.5mm

CU50-250 C/U Roll Forming Machine

Flow chart: De-coiler — Feeding and leveling —-pre-cutting—pre-punching–Main roll forming —-post cutting—Product support frame

CU50-250 C/U Roll Forming Machine

Main Components:

  1. Manuel decoiler Max Load: 4T Qty: 1
  2. Feeding – Leveling

It used for making the material flat before feeding into the roll forming machine.

2 Shafts for upper and 3 shafts for down.

Material: #45 steel

CU50-250 C/U Roll Forming Machine

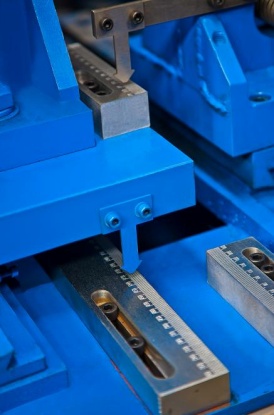

3.Hydraulic Pre-punching system

Punch on flat sheet. PLC control punch quantity and horizontal position; vertical position adjust by manual.

Punching Type: Hydraulic Punching

Punching quantity: Two sets totally 3 holes.

Punching sizes can be changed easy.

CU50-250 C/U Roll Forming Machine

4. Pre-cutting device

It used to cut raw materials before roll forming, which measure length automatically.

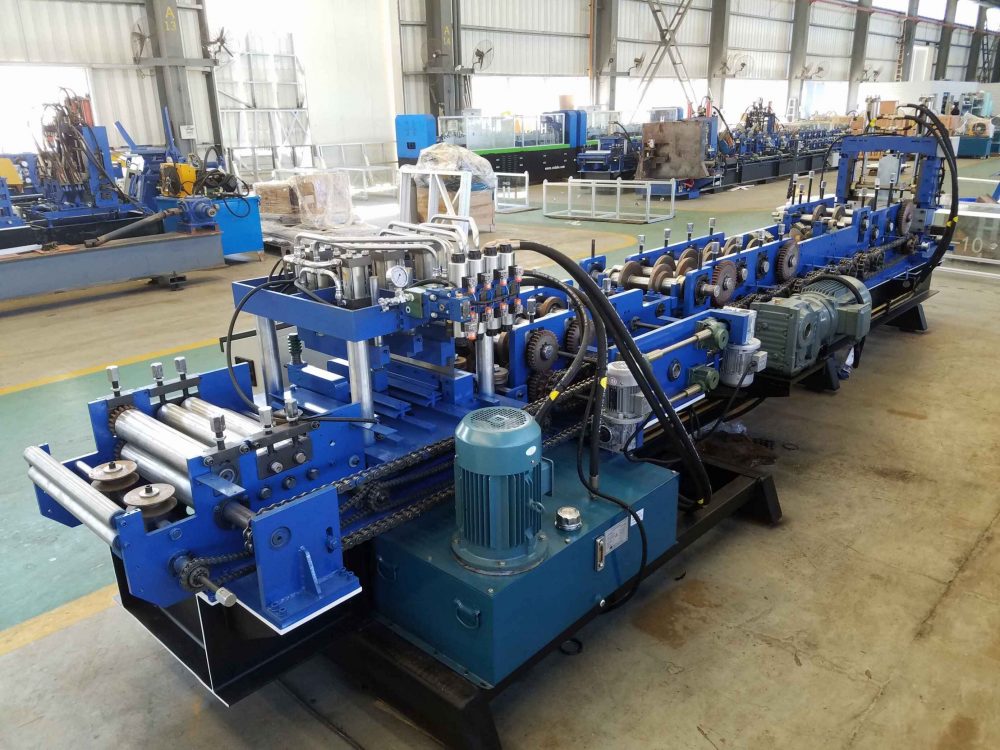

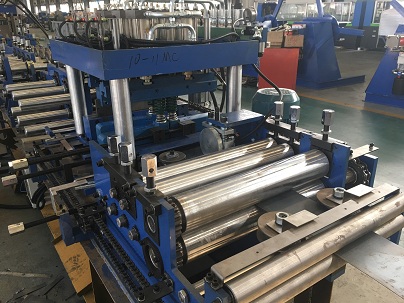

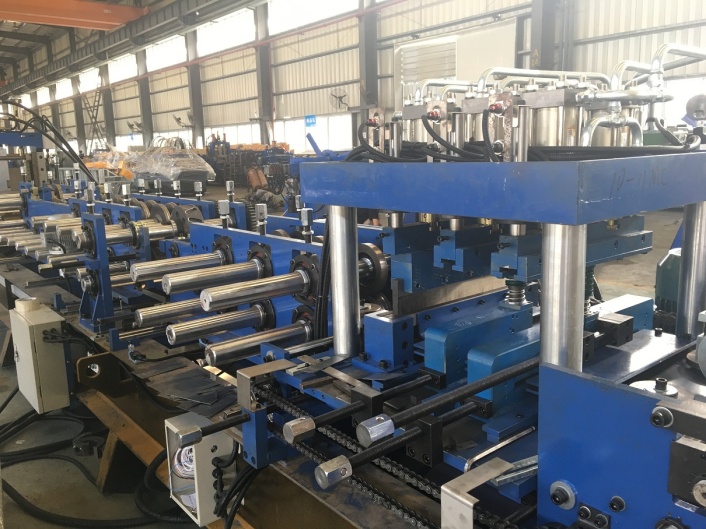

5. Main roll forming

Main motor power: 15KW

Forming speed: 20m/min

Approx. 16 groups rollers

Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Material of main shaft : 40Cr

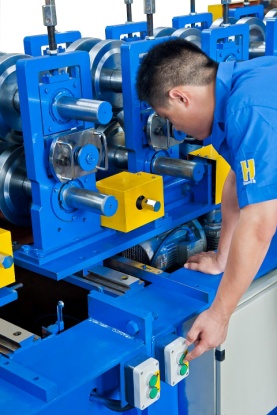

Changing sizes: automatic, change sizes by press button.

Transmission type: by chain

CU50-250 C/U Roll Forming Machine

Changing sizes: Automatically by pressing button, change 50mm to 250mm takes about 1 minute.

CU50-250 C/U Roll Forming Machine CU50-250 C/U Roll Forming Machine

6. Hydraulic cutting

Length measuring: Automatic encoder length measuring

CU50-250 C/U Roll Forming Machine

7.Product support frame

8.PLC Control System

Control the quantity &punching length& cutting length automatically; Automatic Length measure and quantity counting

CU50-250 C/U Roll Forming Machine CU50-250 C/U Roll Forming Machine CU50-250 C/U Roll Forming MachineCU50-250 C/U Roll Forming Machine
