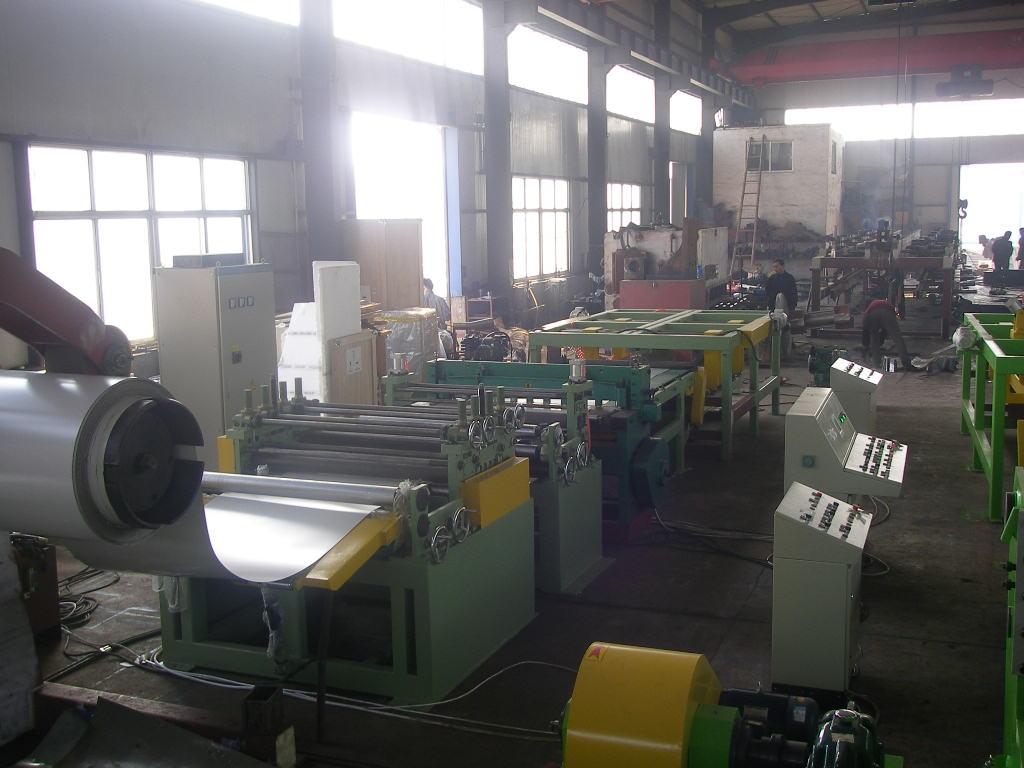

• Cut-To-Length Line
  • Cut-To-Length Line

Material of processible coiled plate: apply for carbon steel plate; GI or PPGI coils Apply for the cold plate of δb≤350Mpa;
Thickness of coiled plate: 0.6 – 12mm;.
Width of coiled plate: 1600 to 2000 mm;
Coil I. D: ф508mm ф610mm in reel
Coil O.D: ≤ф2200mm;
Weight of coiled plate: 15T;
Precision of leveling: No macroscopic pincher and small marginal wave
Length tolerance: ±1.0mm/2000mm;
Diagonal tolerance: ±1.5mm/2000mm;
Material of leveling roller: 40Cr
Hardness of leveling roller surface: HRC48 – 52;
Leveling speed: 0 – 25m/min (adjustable);
Calculated by 2m plate: 5 – 6 pcs/min
Power: 440V, 3 phase, 60Hz or according to buyer’s request.
Machine standard: The main components & damageable component in electronic equipments is accordance with GB stipulation (the Standard of People’s Republic of China);

  1. Hydraulic conical uncoiler: loading capacity of 15T ;Coil inner diameter: 508mm 610mm;Coil width: 1600mm –2000mm
    2. This is composed of bottom-stand(guiding track pattern), frame, detent device, discharging axe, conical discharging plate, hydraulic pushing device, clutch, etc.
    3.Hydraulic coil car: loading capacity of 15T. This wagon is used for the movements and lifting of rolling coil plates. The operation and lifting of this dolly is conducted by oil cylinder.
    4.Hydraulic guiding-head, shovel-head device: This is composed of frame-stand, hydraulic arm, pressing & guiding roller,hydraulic leveling-head, shovel-head, etc. accompany of seam needle decelerating motor:7.5KW, etc.
    5. Hydraulic feeding machine: This is composed of frame , torii stand, squareness slide supporting stand, feeding rollers,hydraulic lifting device, clutch, accompany of decelerator400, motor: 11KW,etc.
    6. Rolling orbit table: 4m, this is composed of bottom-stand, rolling orbit, bearing-stand, etc.
    7. Guiding device: This is composed of worktable frame, guiding pole, adjustment device, moveable plane plate and clutch with multi-roller, etc.
    8. Leveler: Power part : This is composed of power-stand, decelerator 650, direct-current speed adjustable motor:55KW(Eurotherm), direct-current cabinet,
    distributing case, universal joint, etc.
    9. Host machine: This is composed of leveling-stand, frame, slide, axe roller 15pcs (roller diameter: Φ140mm), electronic lifting &pressing device, accompany of two motors: 3KW.
    10. Coding device: This is composed of coding transition table, coding & pinch device, coder, etc.
    11. Cut to length machine: It is electric control, 6.3×2000mm size control or according to buyer’s request.
    12. Worktable, swaying pneumatic pinch machine: This is composed of worktable, frame, rolling orbit, bearing-stand, etc. accompany of seam needle decelerating motor:4KW.
    13. Unloading car: Vertically and horizontally pneumatic pushing device, etc.
    14. Full set of Electric control system: This is composed of host electric operating desk, front operating table, etc.
    15. Hydraulic system: This is composed of hydraulic station, pipe, tie-in, etc. Hydraulic oil, lubricate oil, pneumatic resource shall provided by the User.

Certificate : ISO CE
