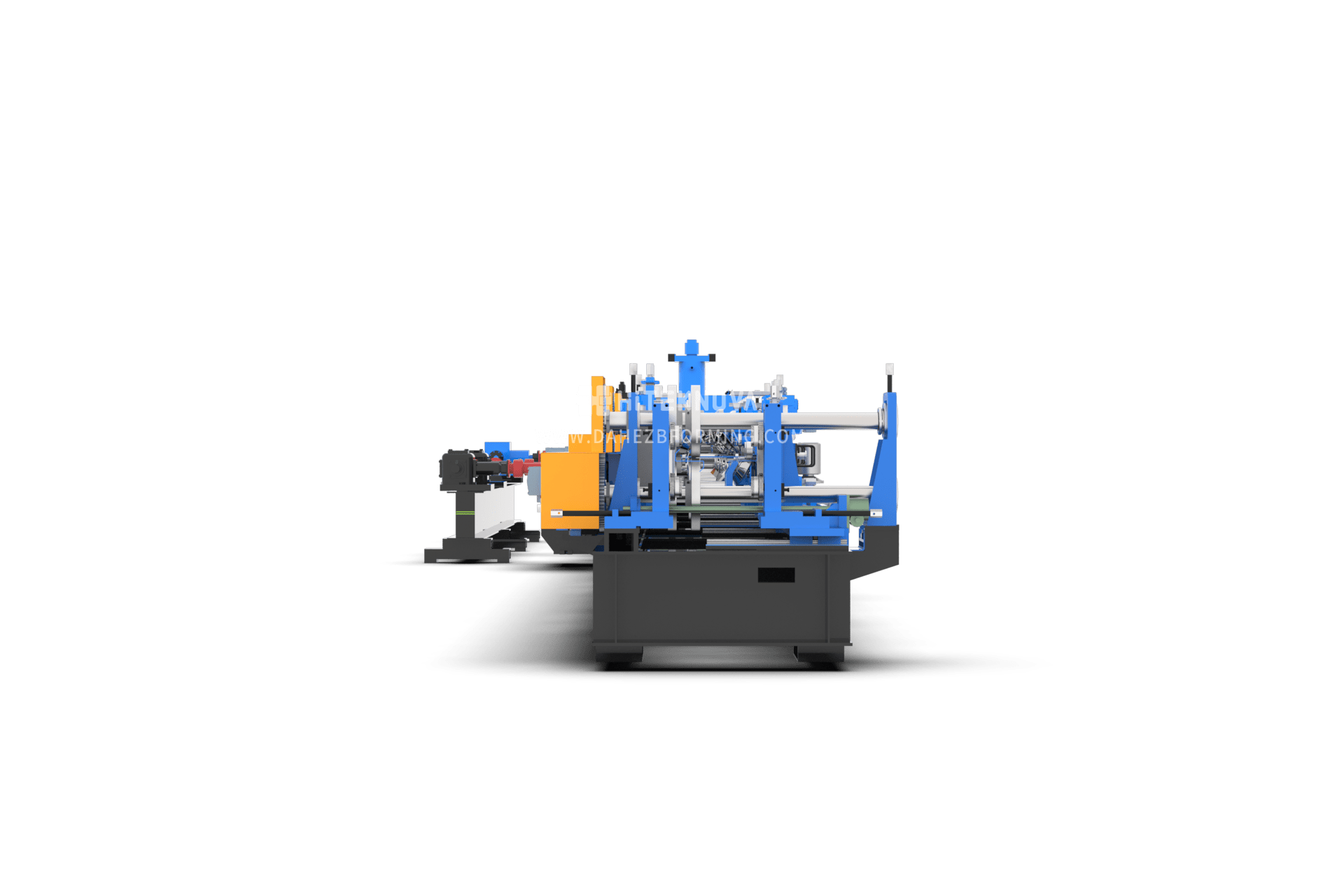

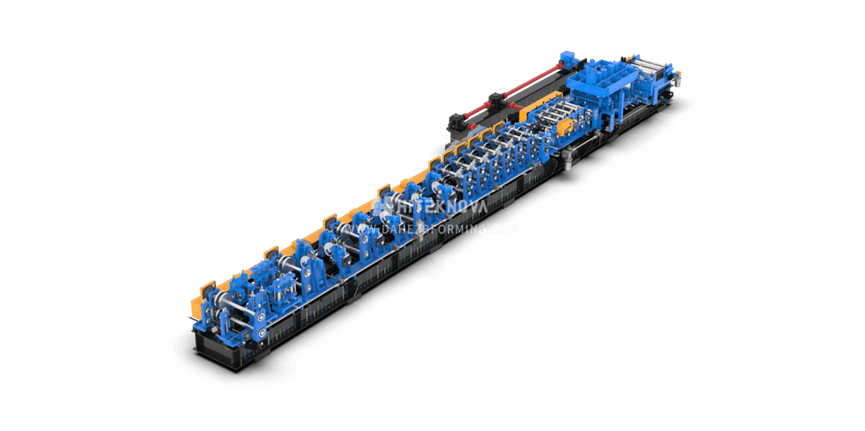

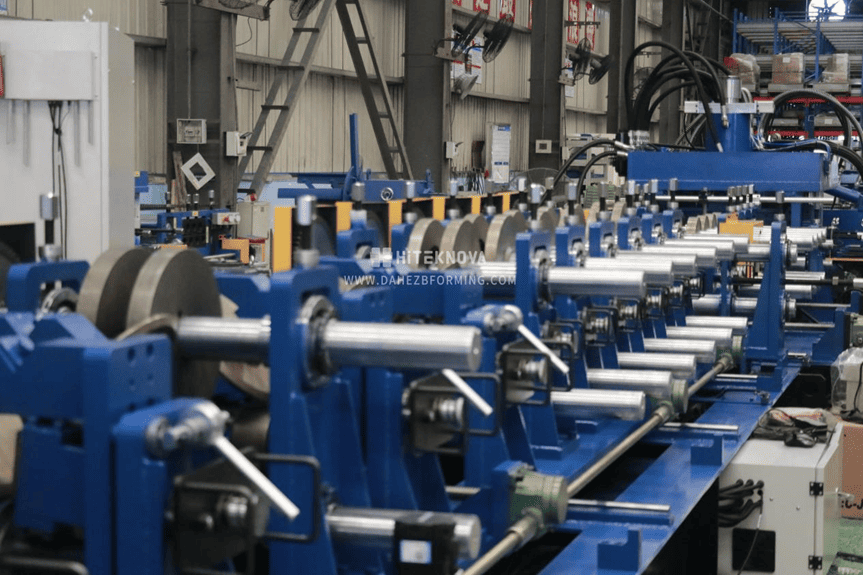

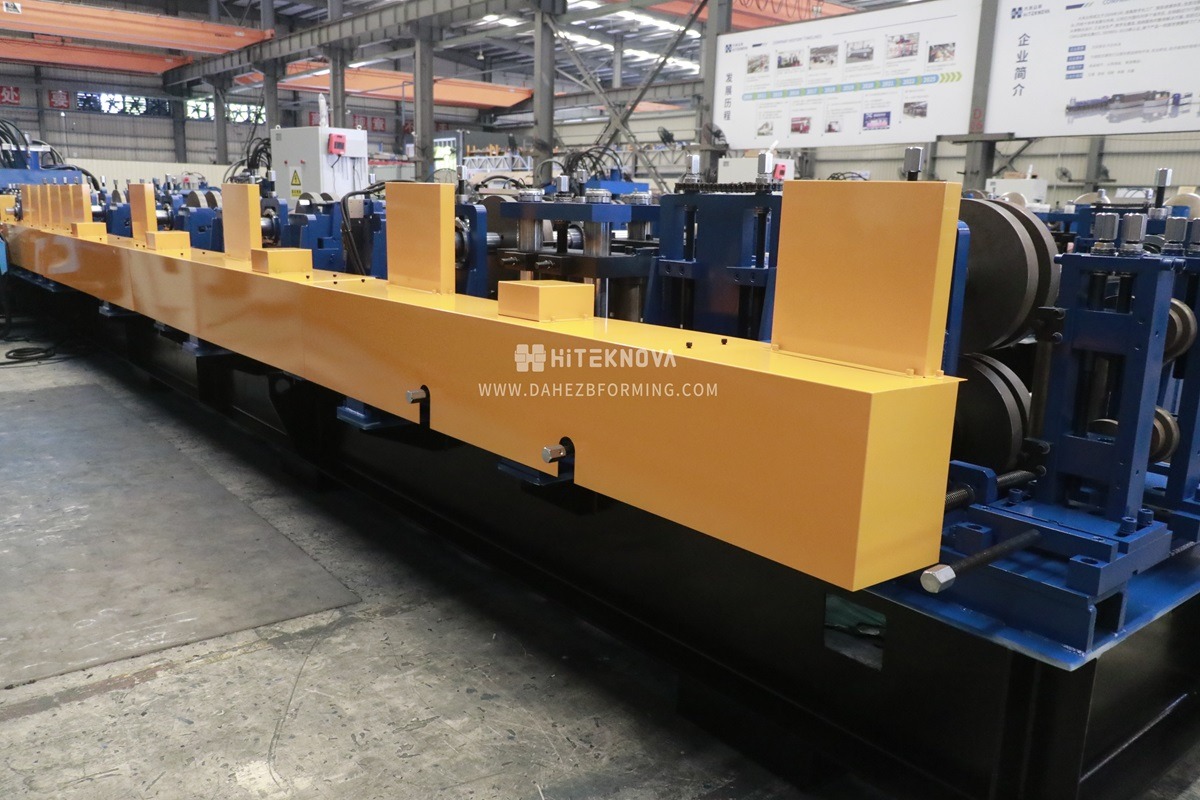

CZ Interchangeable Purlin Roll Forming Machine FX5

The FX5 is a large, heavy-duty purlin machine developed by Hiteknova to meet the demands of the global large-scale steel structure construction market.

Hiteknova’s integrated heavy-duty CZ purlin roll forming machine is engineered for high-volume steel structure projects. It delivers stable and high-speed production of customized profiles, including the most common C and Z sections:

C-sections: Width 80–350 mm;

Z-sections: Width 120–350 mm;

Height（Flange) up to 100 mm;

Lip up to 25 mm;

Thickness 1.0–3.5 mm.

The FX5 is widely applied in steel structure workshops, multi-story buildings, purlin and wall beam systems, railway vehicles, transportation equipment, warehouse racking, and supporting structures. Featuring precision transmission, robust supporting frame, fast and accurate C/Z changeover, advanced flat-plate pre-cutting, dynamic punching, and intelligent software, it ensures highly precise and efficient operations in your factory.

Click to watch the FX5 in action

• Zero scrap, no flare ends
• Flat-plate pre-cutting without tool change
• High production stability
• Fast cutting for short materials
• Floating punching for precision and efficiency

Built for the demands of large-scale steel structures

1、C width: 80–350 mm; Z width: 120–350 mm (fully adjustable)

2、Height(Flange):30-100mm and height≤0.95*(width-lip-30)

3、Lip:8-25mm and lip≤0.8*(height-20)

4、Thickness (t): 1.0–3.5 mm

5、Machine weight: approx. 18 T

6、Applicable materials: Q195, Q235, Q355B hot-rolled steel strip or hot-dip galvanized strip

Produced using professional technology

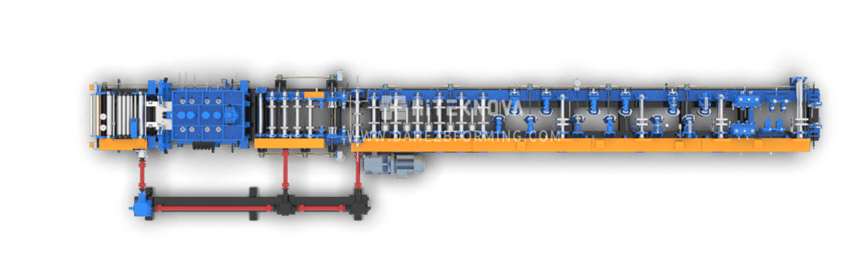

De-coiler→ Feeding And Leveling Device→ Pre-Punching and pre-cutting→ Rolling Forming Device→ Out-let table

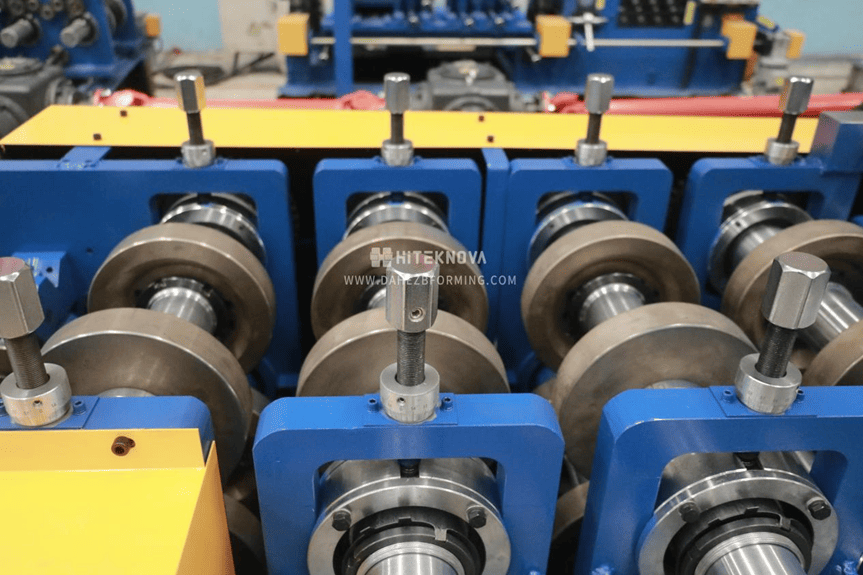

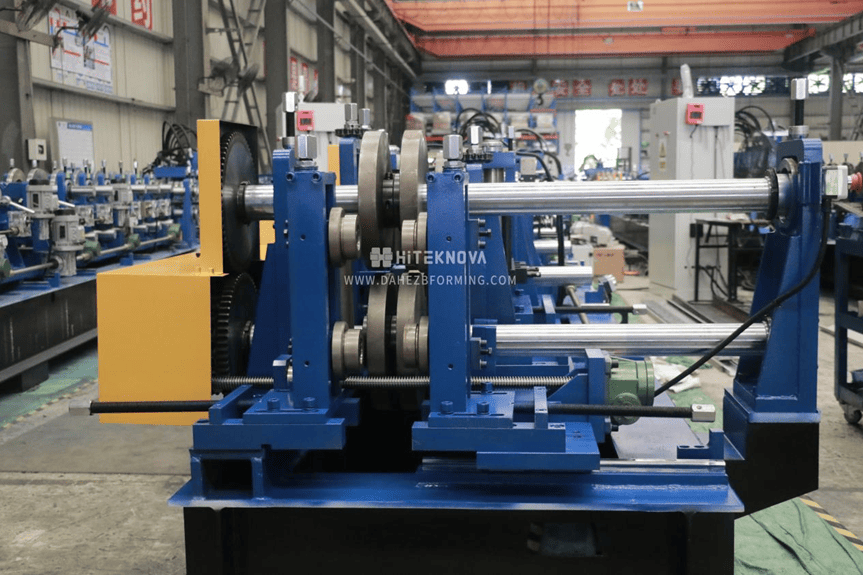

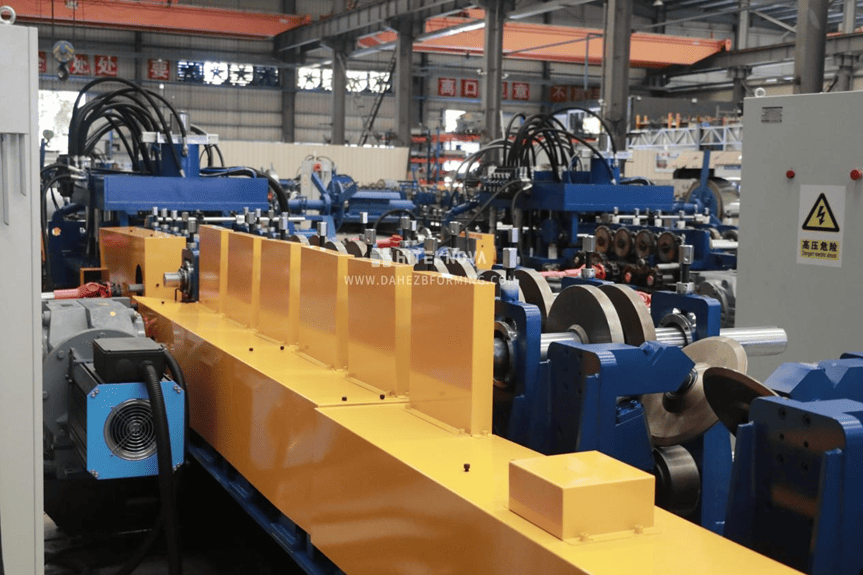

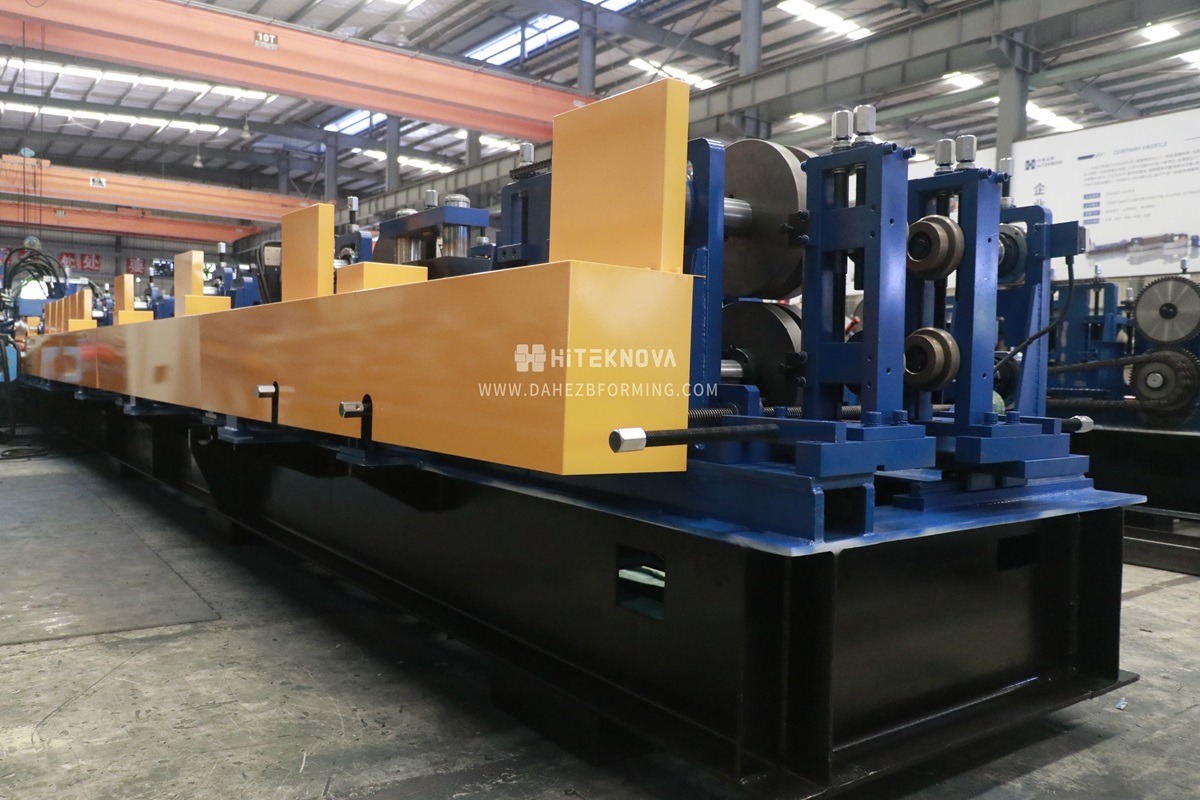

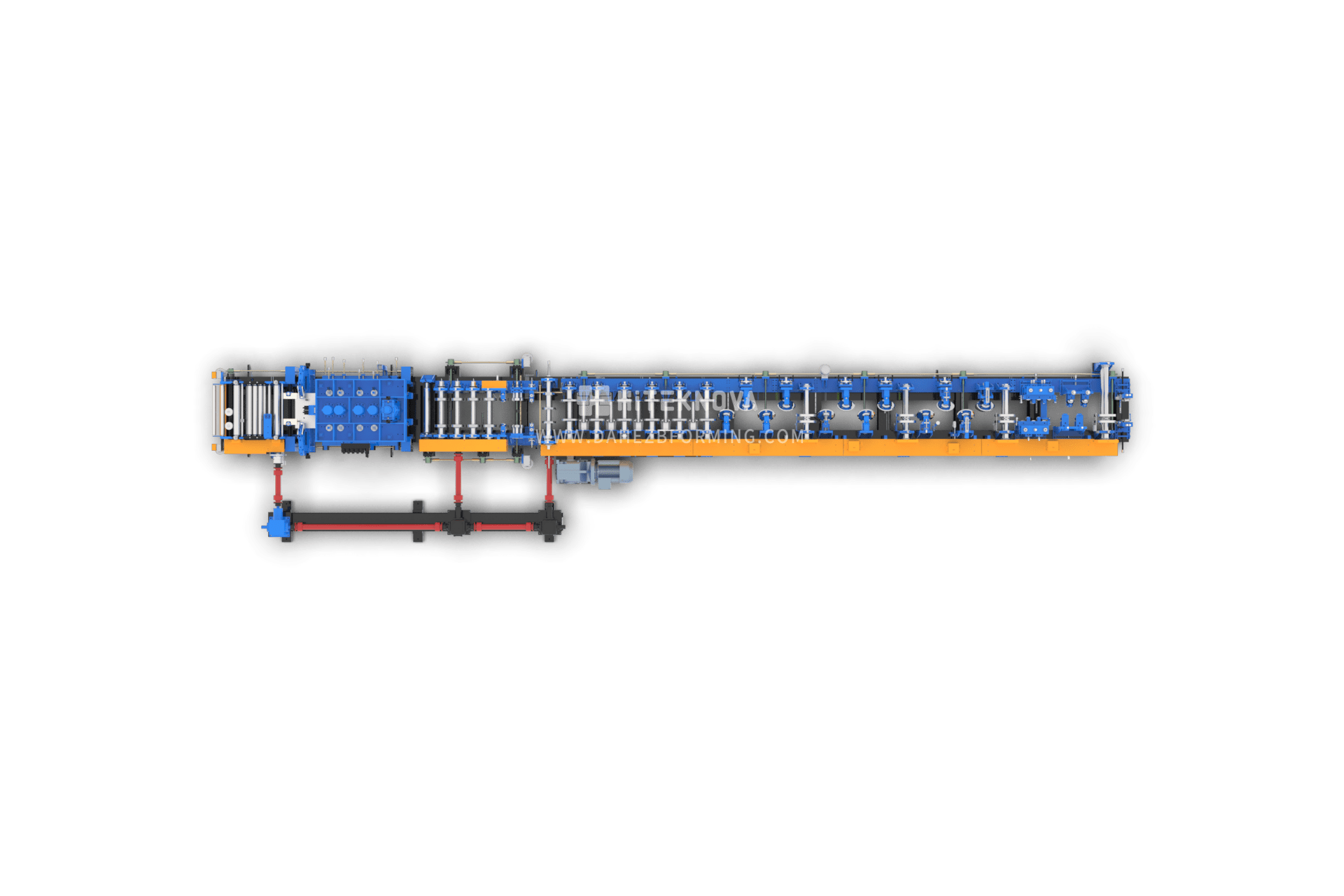

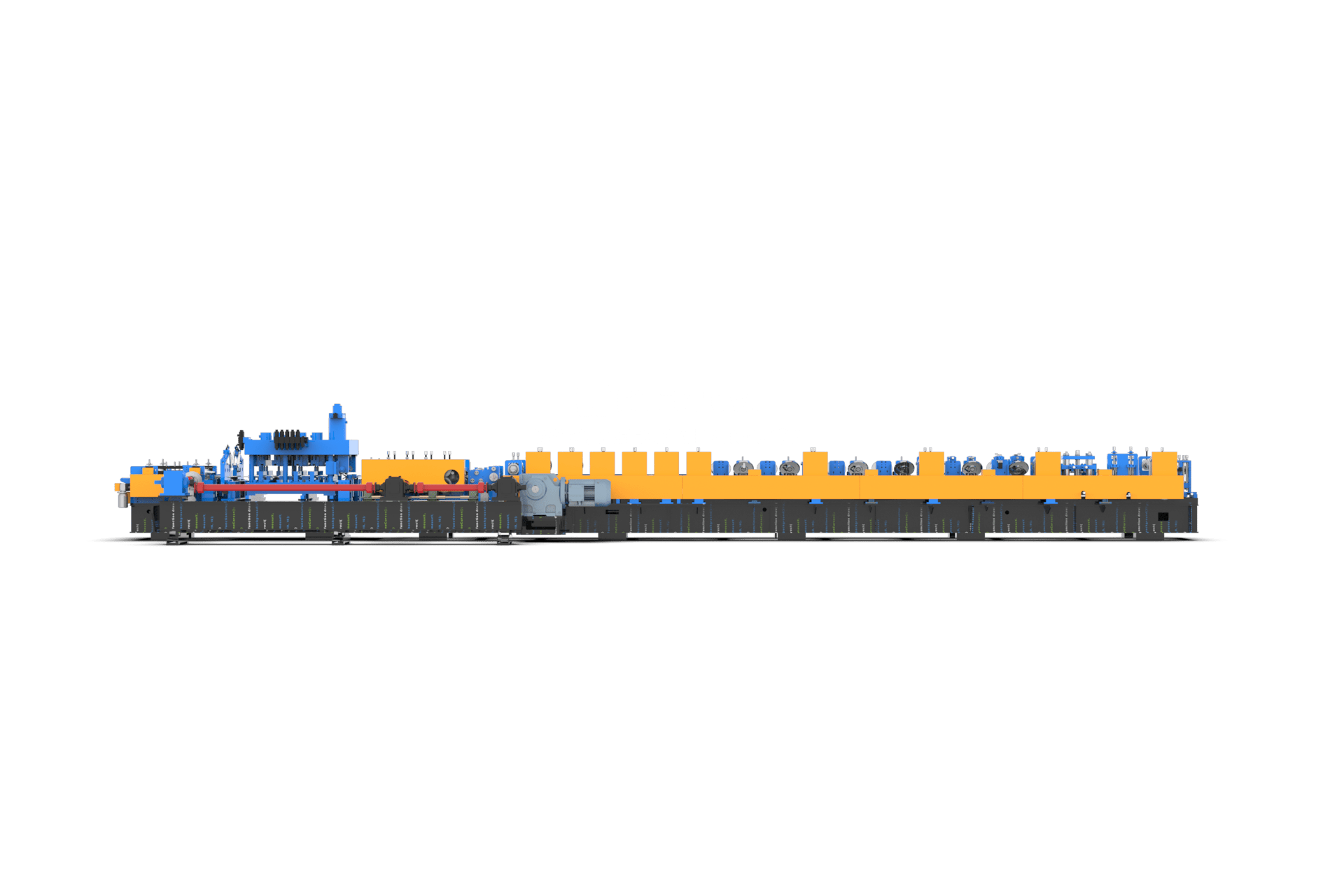

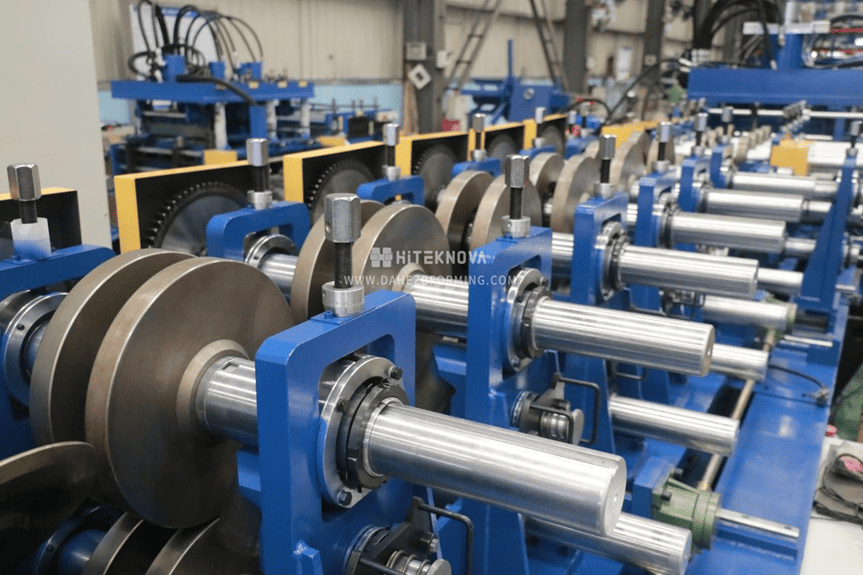

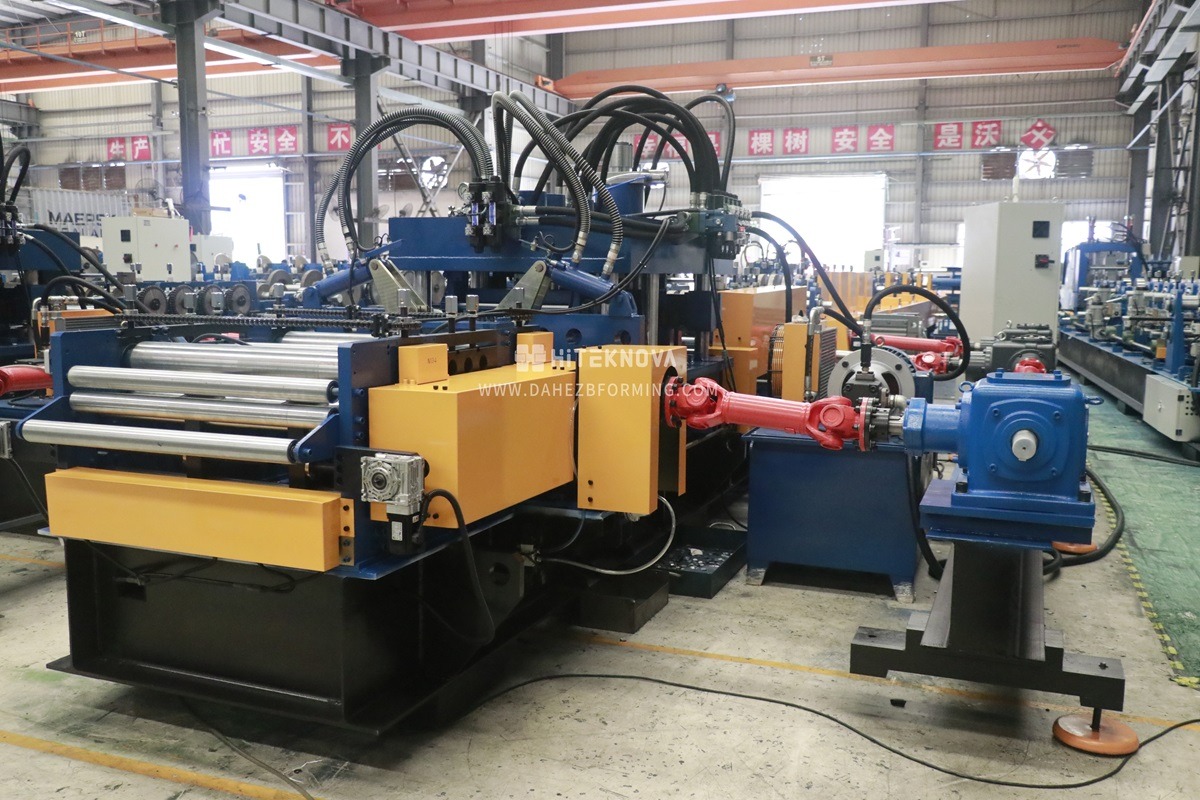

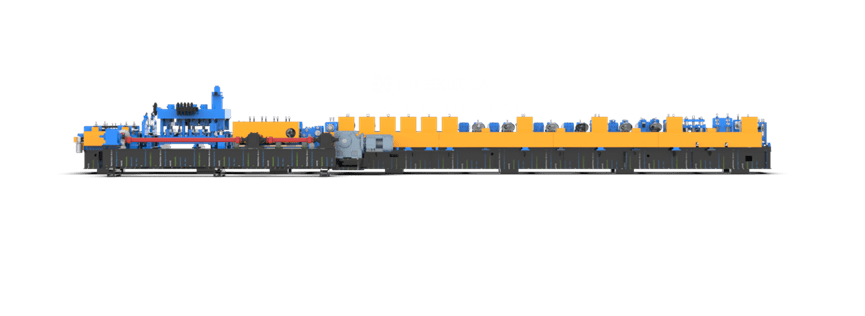

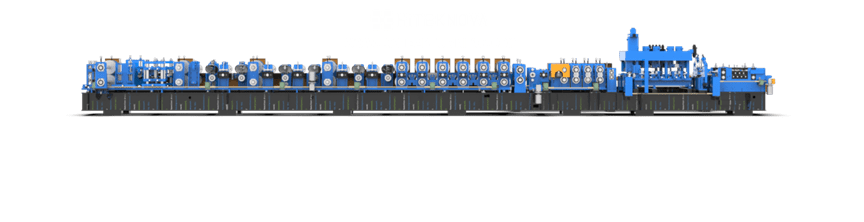

FX5 Machine Detail Images

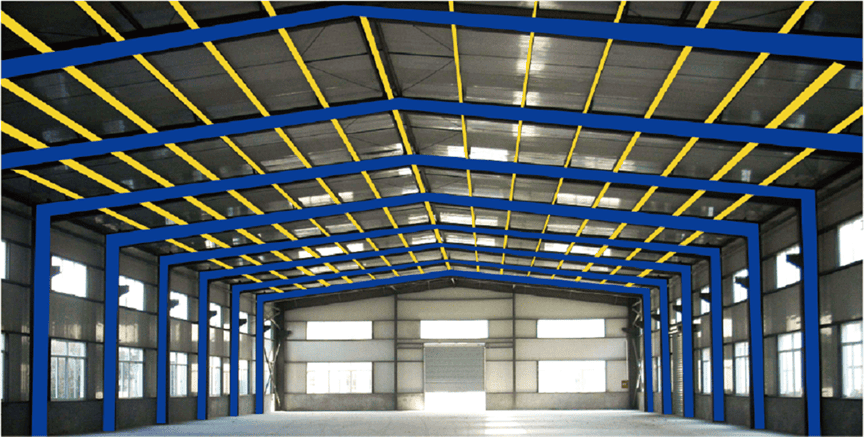

Applicable to multiple steel structure building scenarios

The FX5 is designed for diverse steel construction scenarios, including:

• Purlin and wall beam systems for steel workshops and multi-story steel buildings
• Railway vehicle manufacturing
• Transportation equipment
• Warehouse racking and critical support structures
