DH-V100 Heavy-Duty Angle Steel Roll Forming Machine

DETAILS

The HITEKNOVA DH-V100 Angle Steel Roll Forming Machine is a heavy-duty solution designed for efficient and precise production of angle steel profiles for construction and industrial applications. With a total machine weight of approximately 5.5T, it ensures stable operation and consistent forming accuracy.

The machine produces angle steel with leg sizes from 25 -100 mm and thicknesses of 1.2–1.5 mm, supporting both equal and unequal angles. A forming speed of up to 25 m/min delivers high productivity. Compatible materials include Q235, Q355, and Q390 hot-rolled steel strips, as well as hot-rolled galvanized steel strips. Finished products are widely used in steel structures, warehouses, solar mounting systems, and support frames.

ltem Specification
Model number DH-V100
Machine Function CZ purlin forming
DimensionsLxWxH 8.4m x 1.1m x 1.95m
Weight 5.5T
Drive Motor Power 7.5KW
Hydraulic Power 7.5KW
Hydraulic Tank 150L
Forming Stages 11
Line Speed 25m/min
Products Specification Size of Profile L
Width: 25~100mm
Height: 25~100mm
Thickness 1.2~1.5mm
Driving system Chain driving
Control System PLC

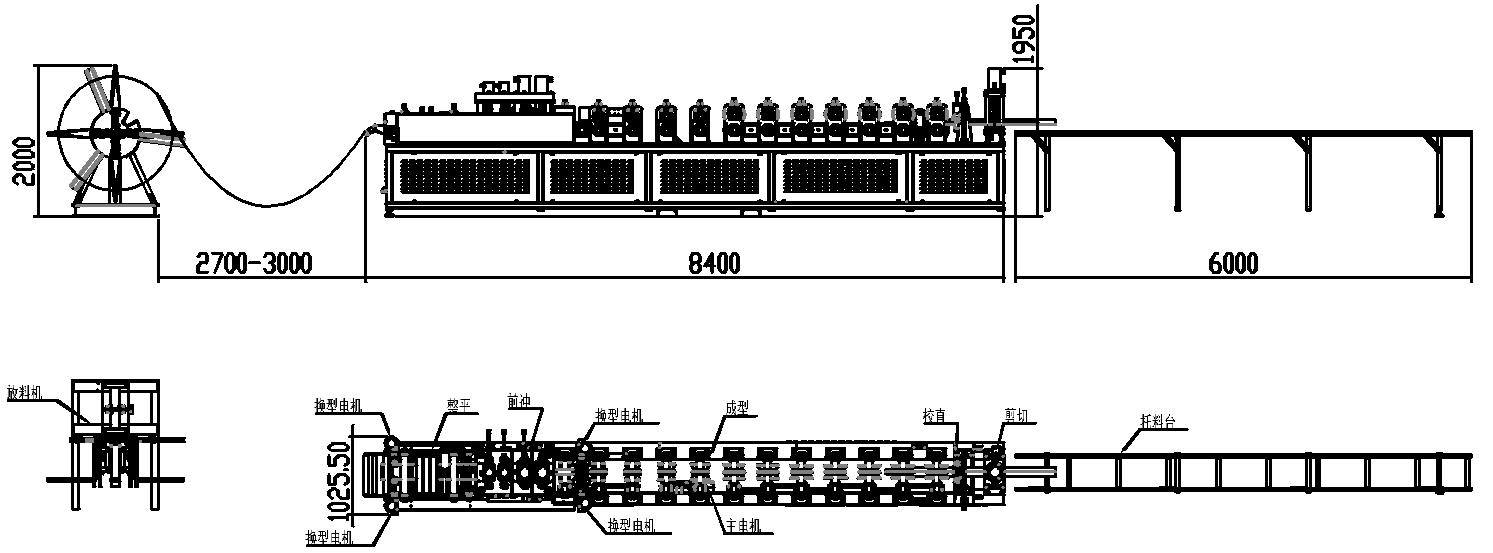

Flow chart

DH-V100 Heavy-Duty Angle Steel Roll Forming Machine

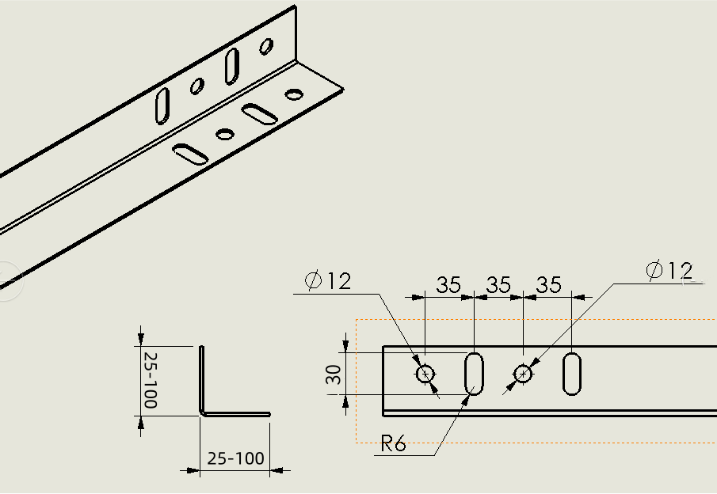

Profile Drawings

DH-V100 Heavy-Duty Angle Steel Roll Forming Machine



Machine Video

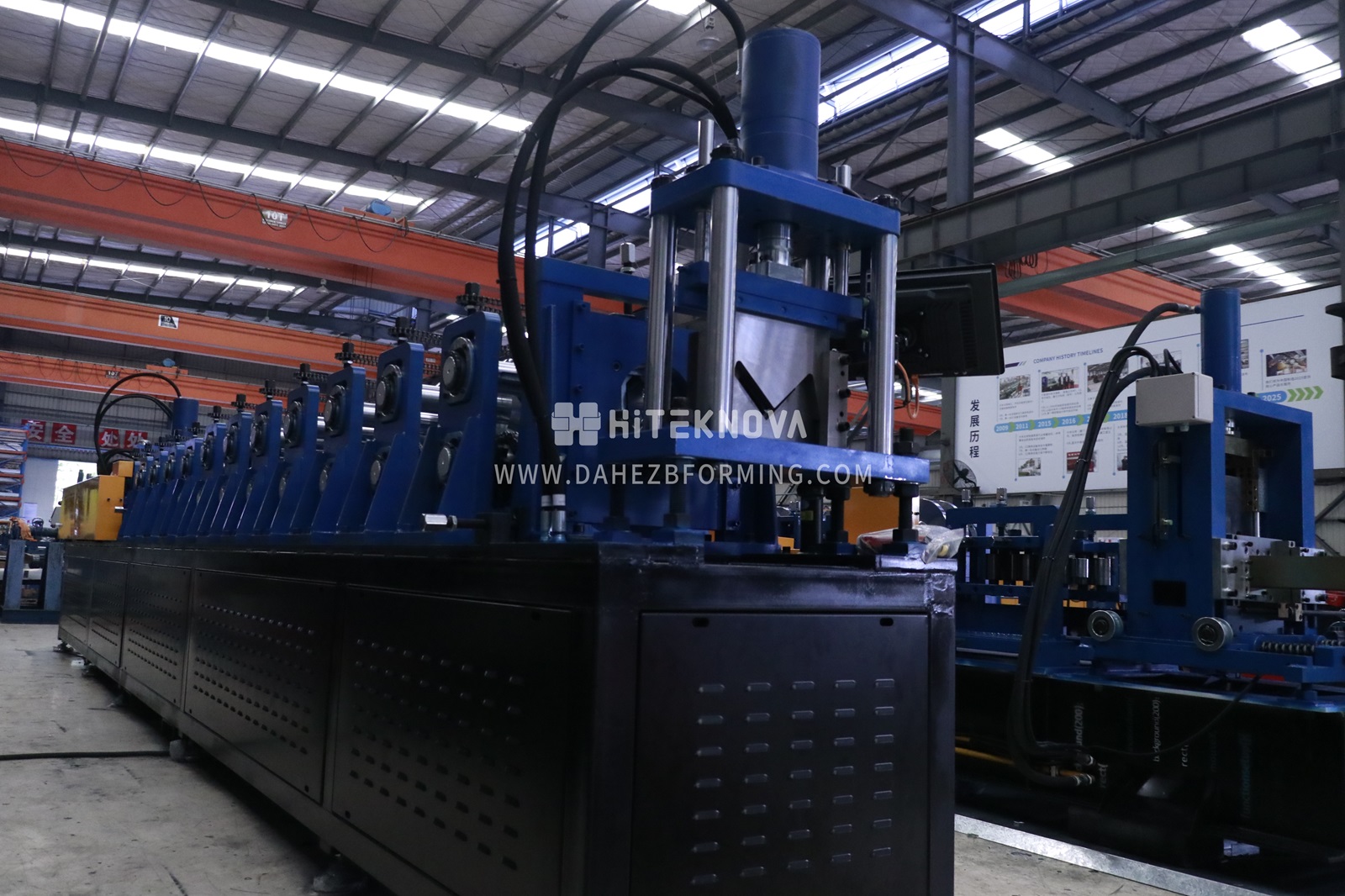

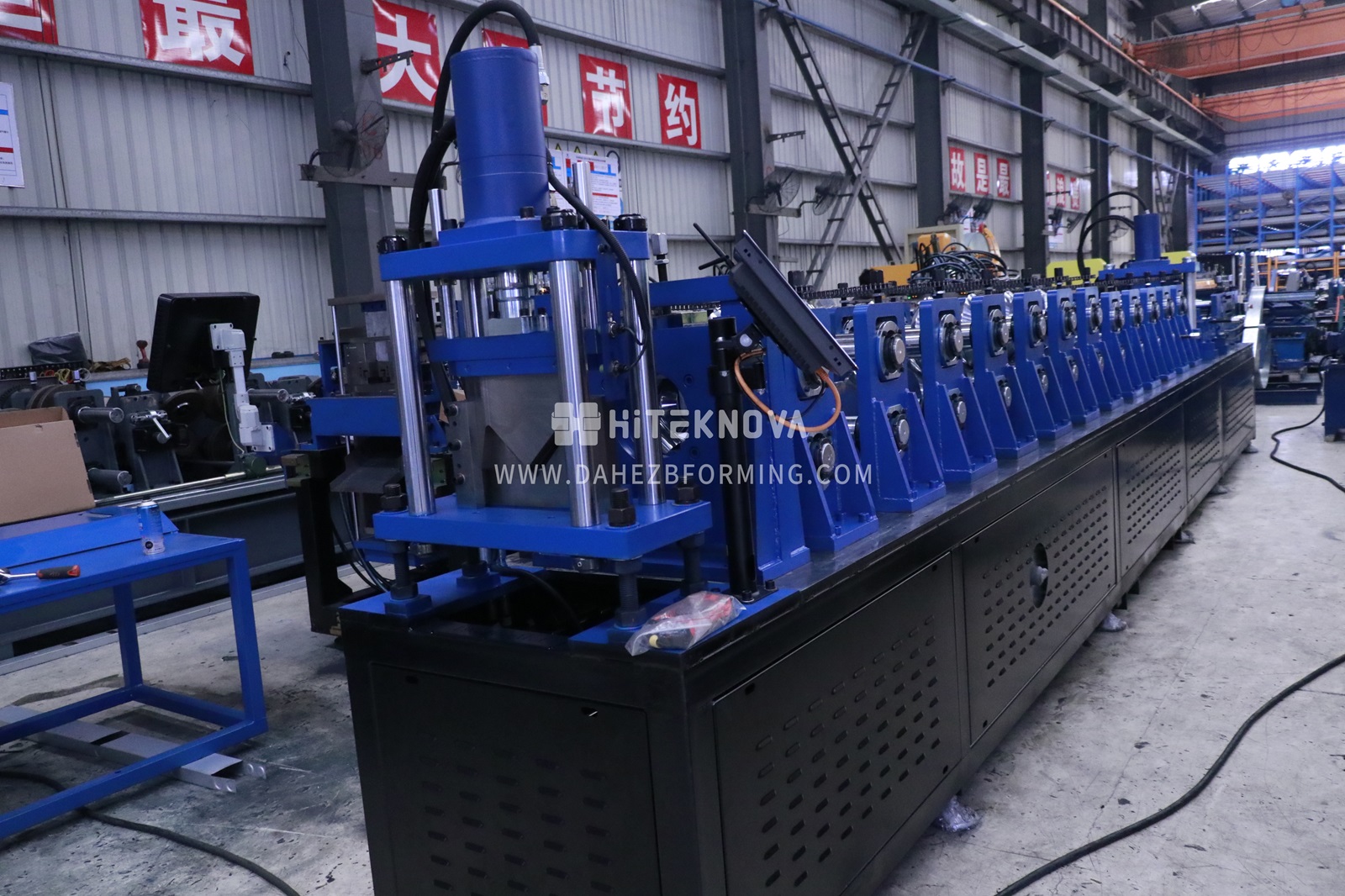

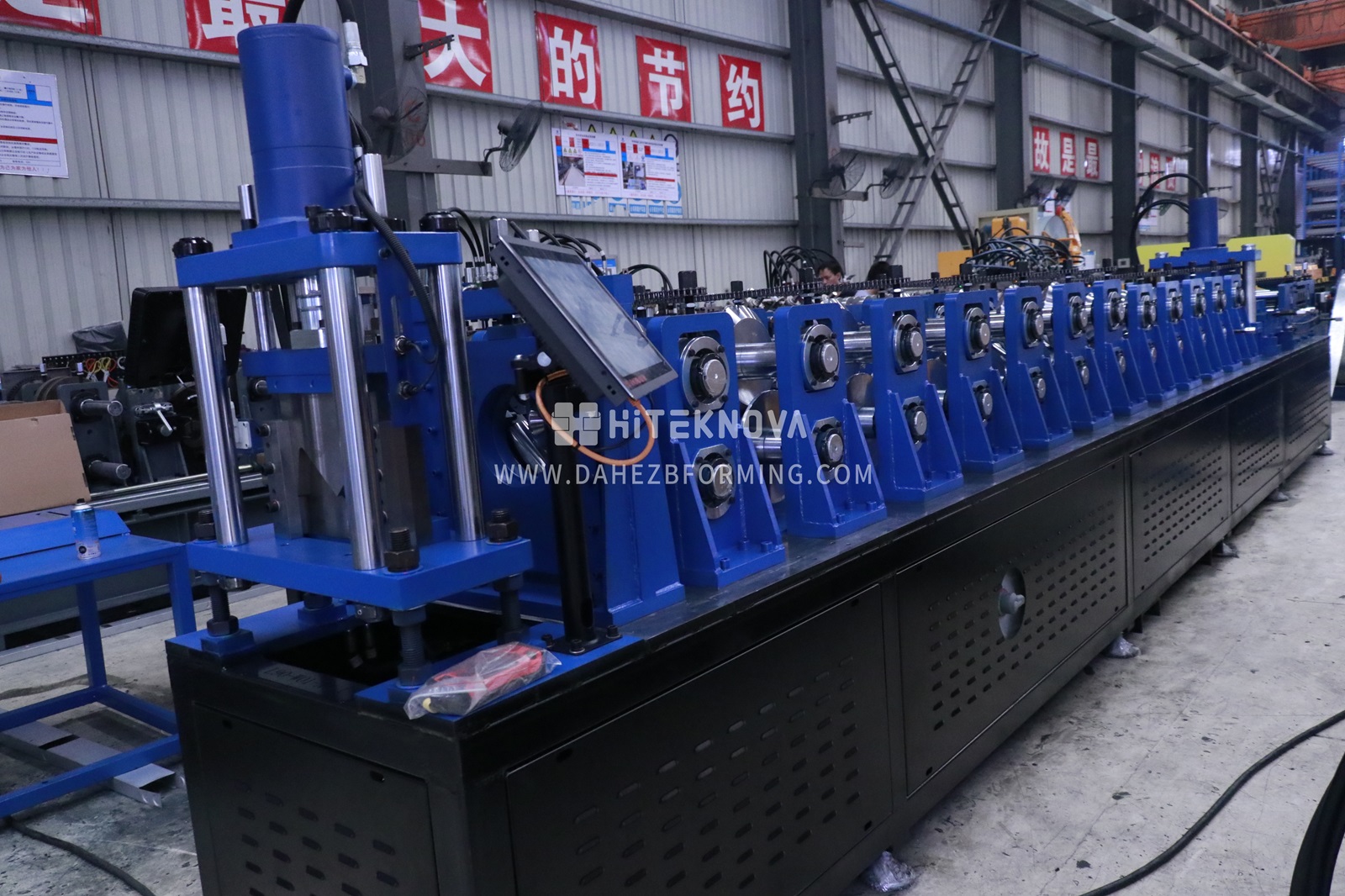

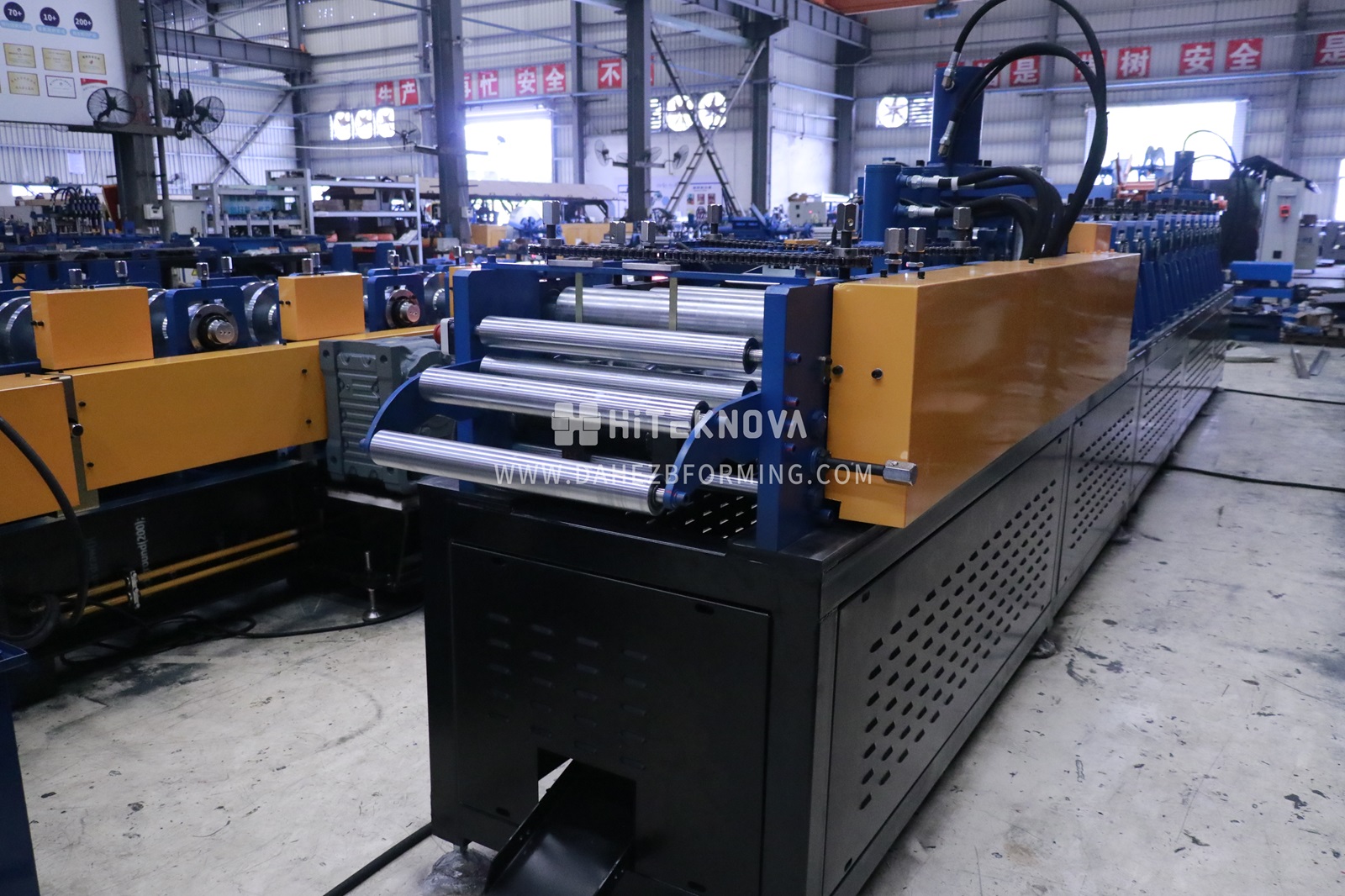

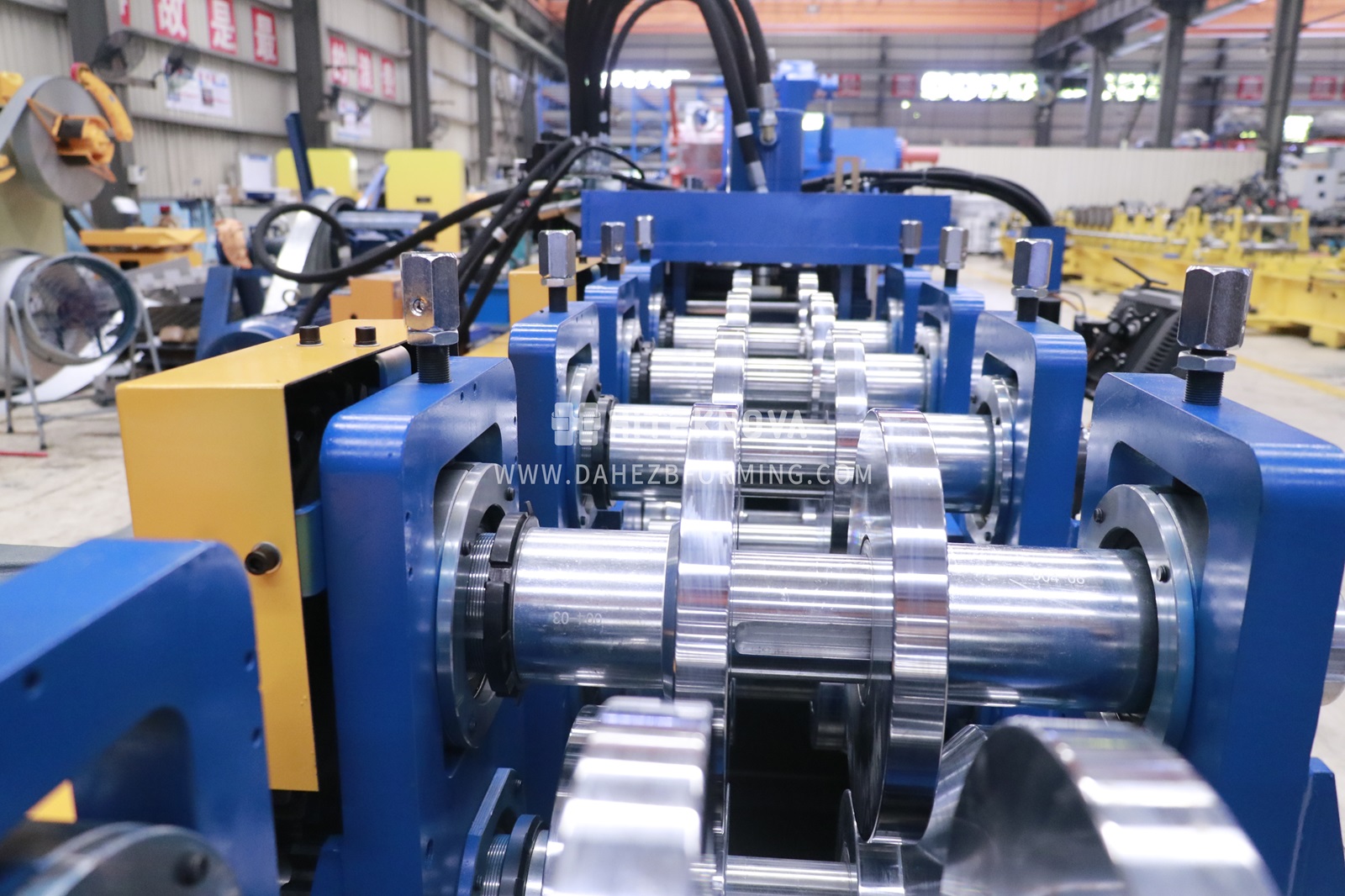

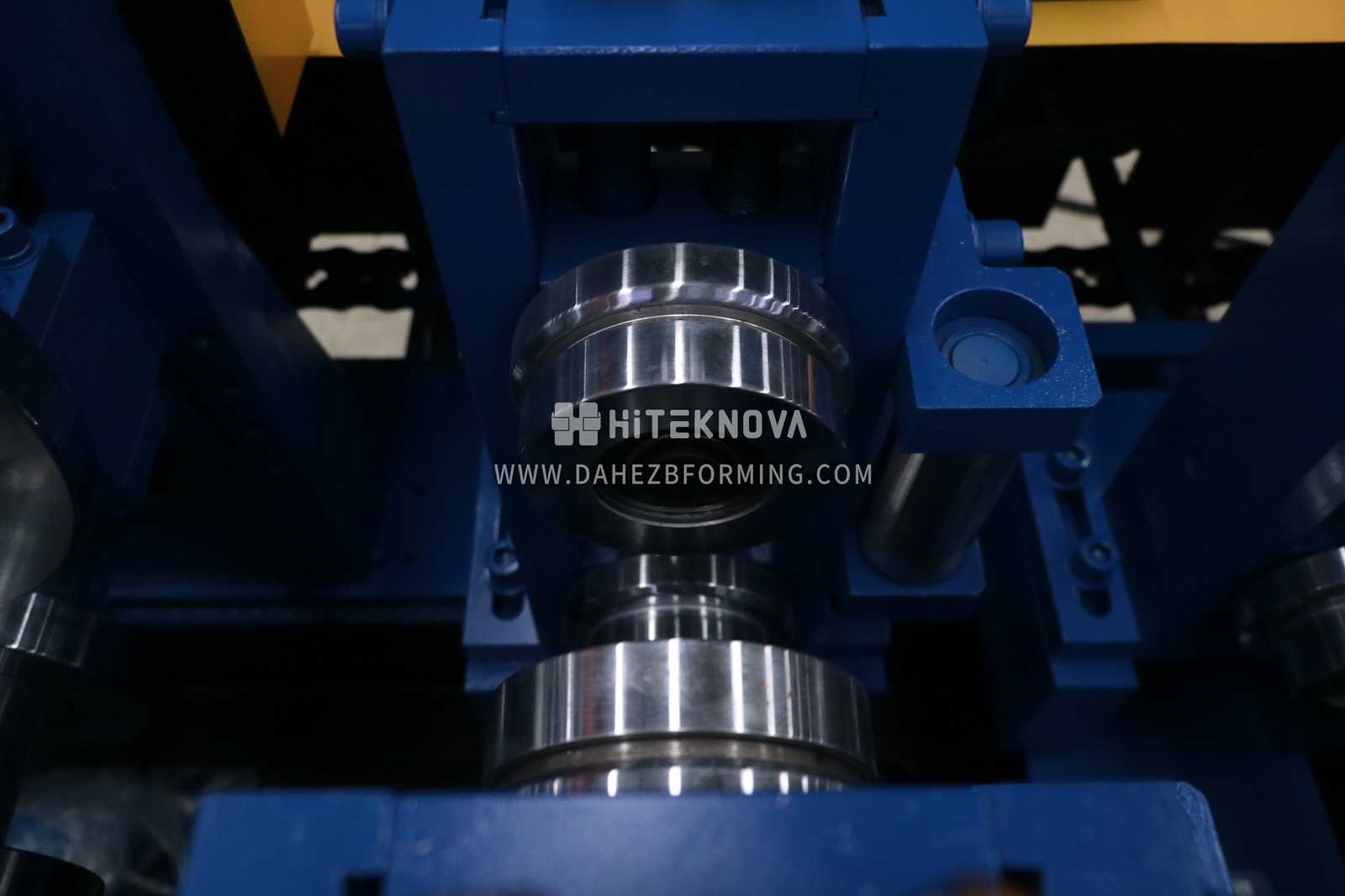

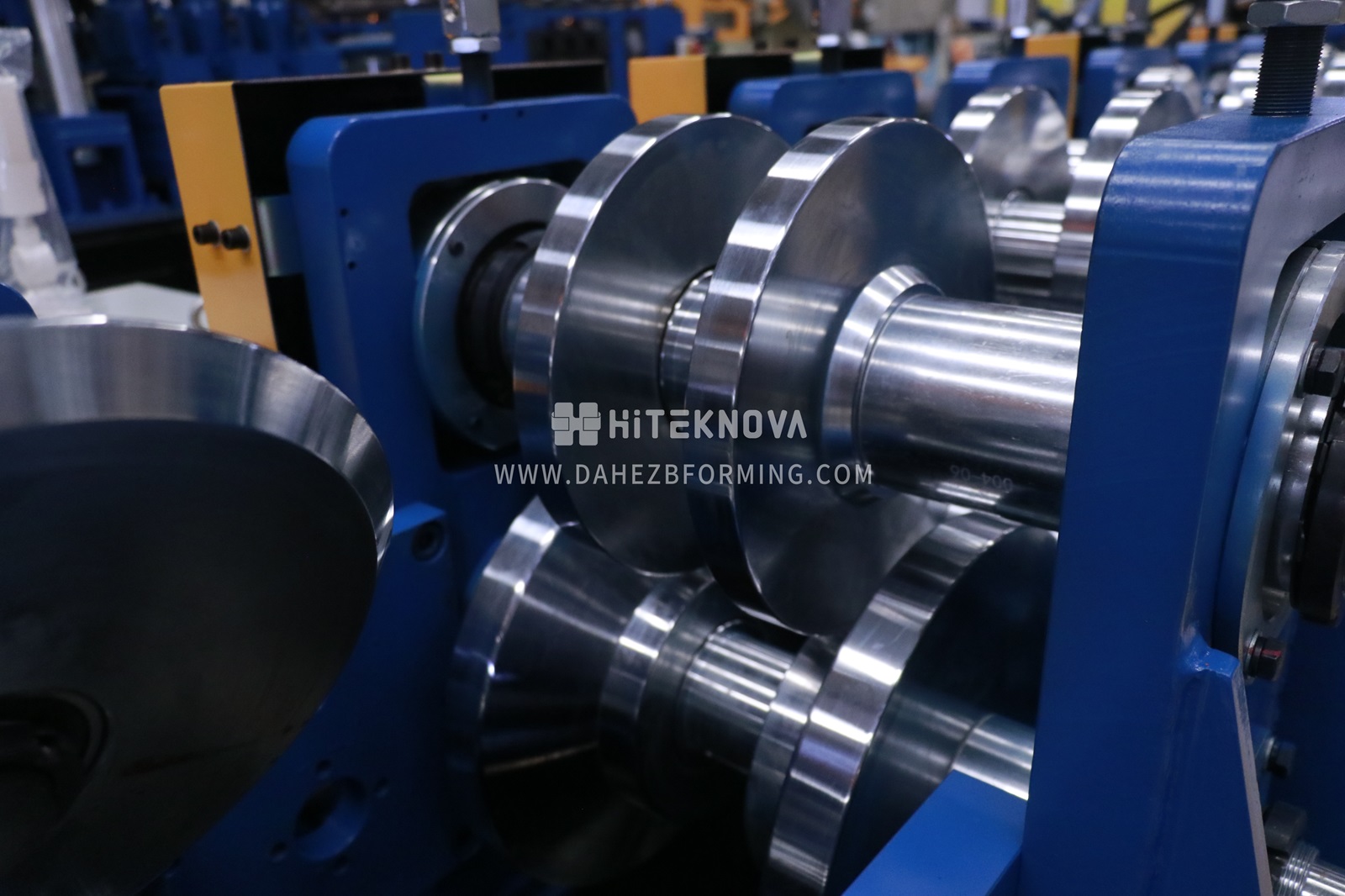

Machine Picture

DH-V100 Heavy-Duty Angle Steel Roll Forming Machine DH-V100 Heavy-Duty Angle Steel Roll Forming Machine DH-V100 Heavy-Duty Angle Steel Roll Forming Machine DH-V100 Heavy-Duty Angle Steel Roll Forming Machine DH-V100 Heavy-Duty Angle Steel Roll Forming Machine
