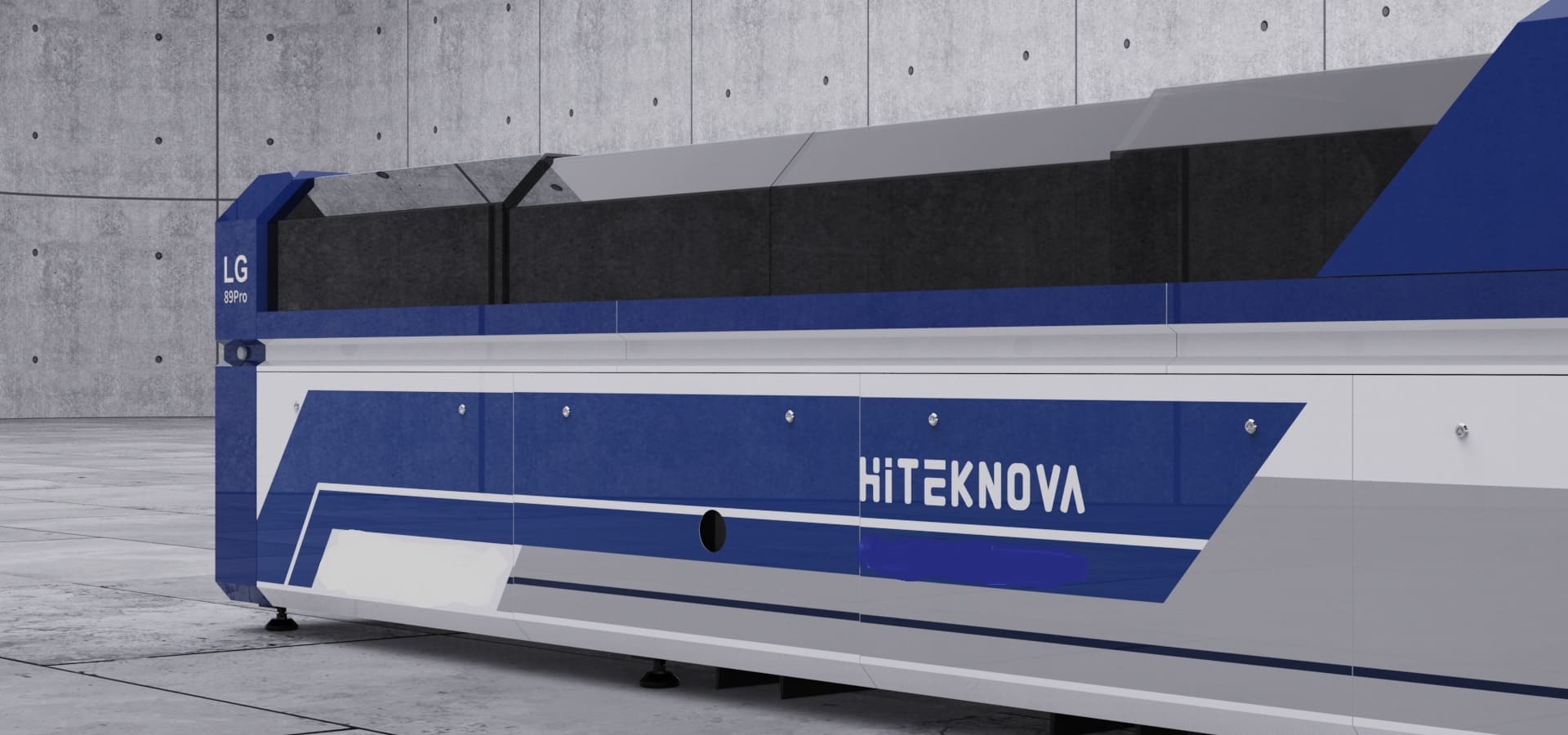

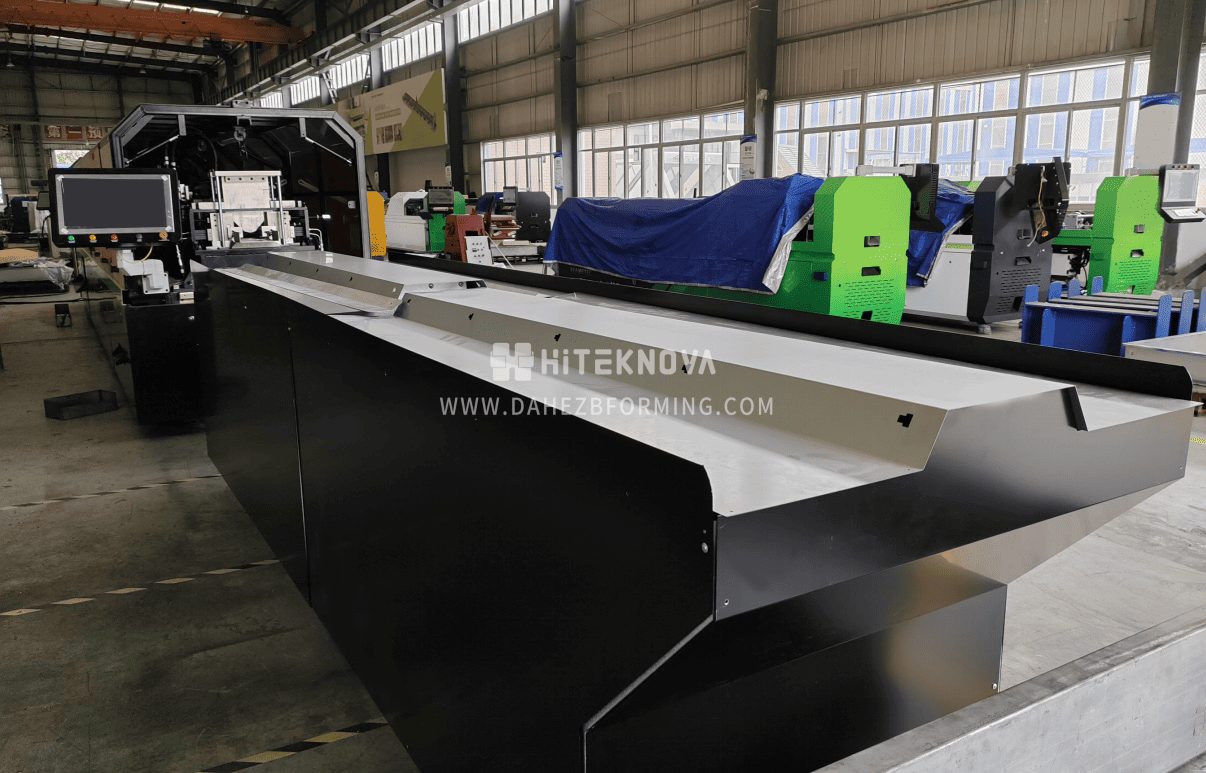

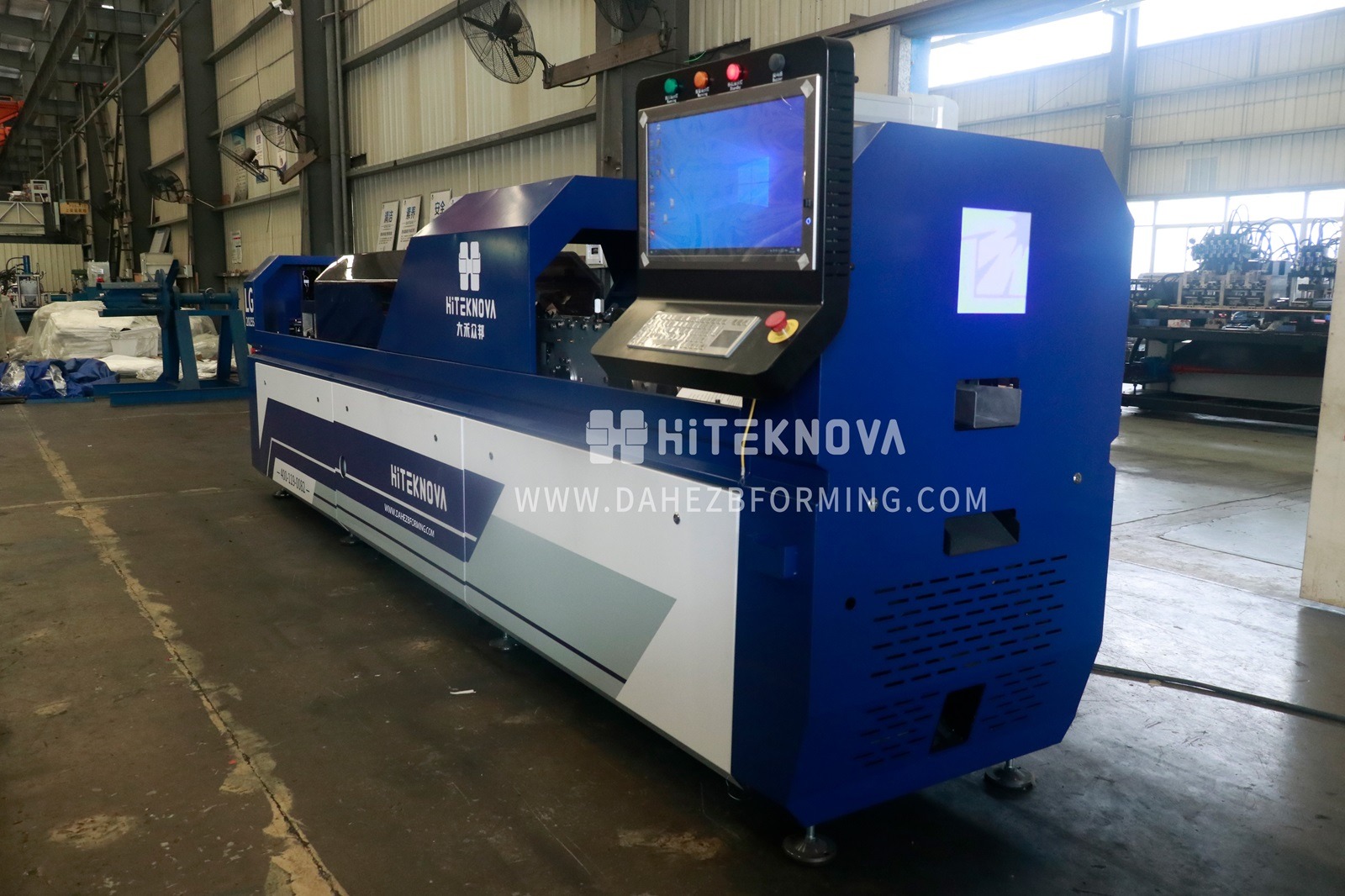

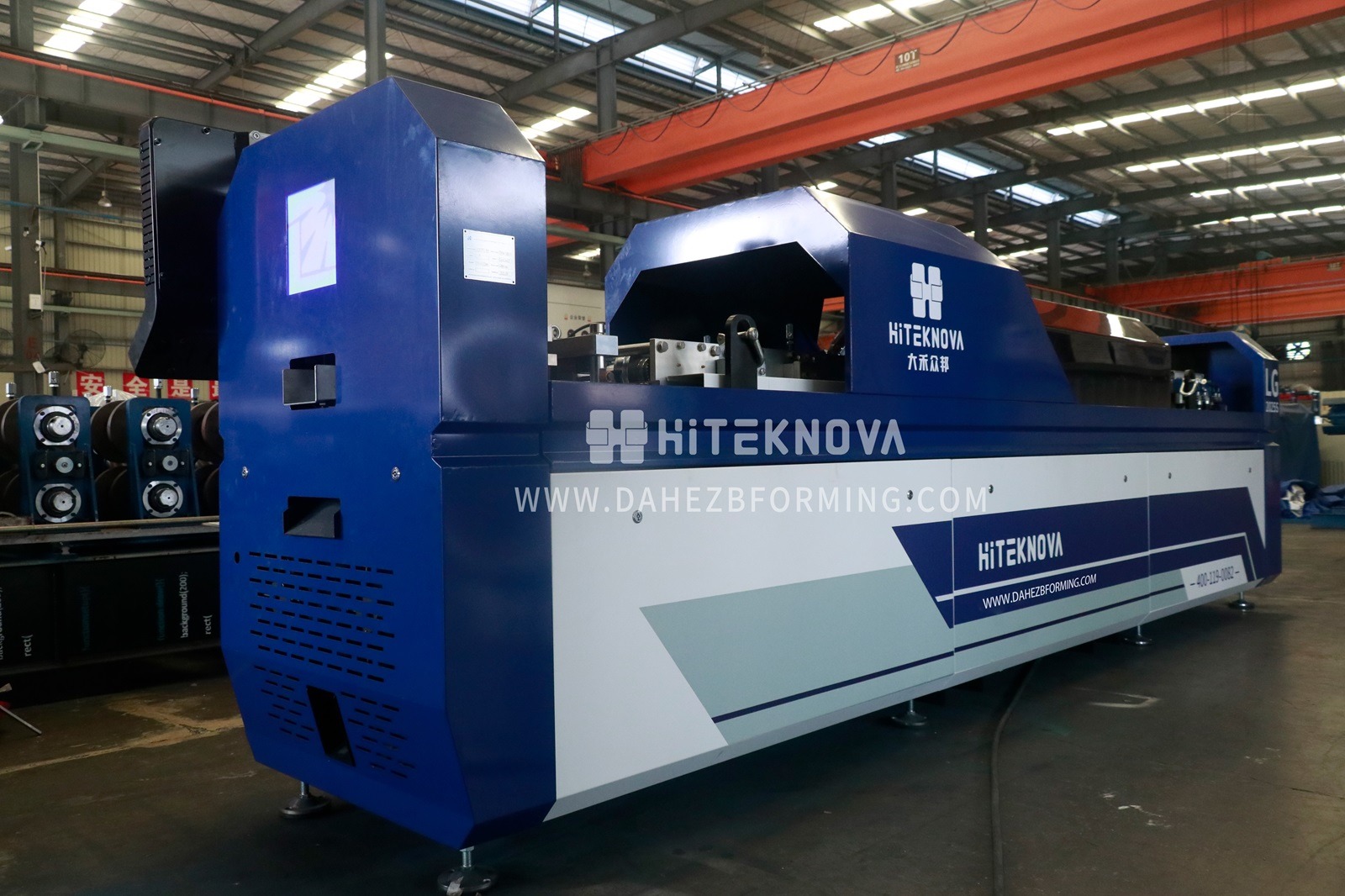

Light Gauge Steel Framing Machine LG2025

DETAILS

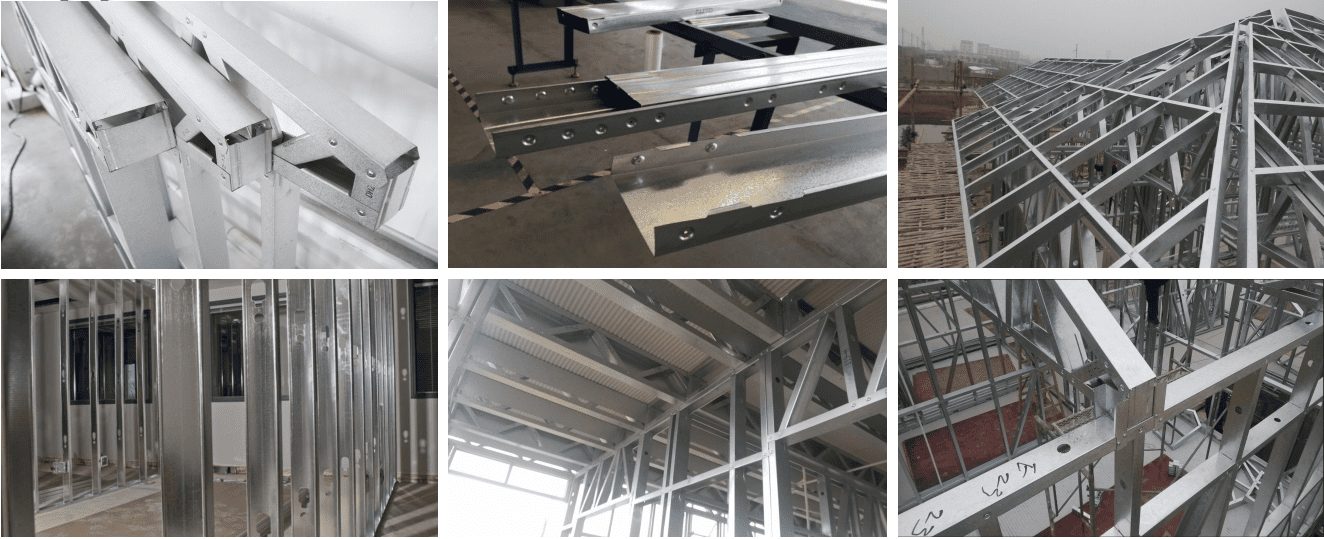

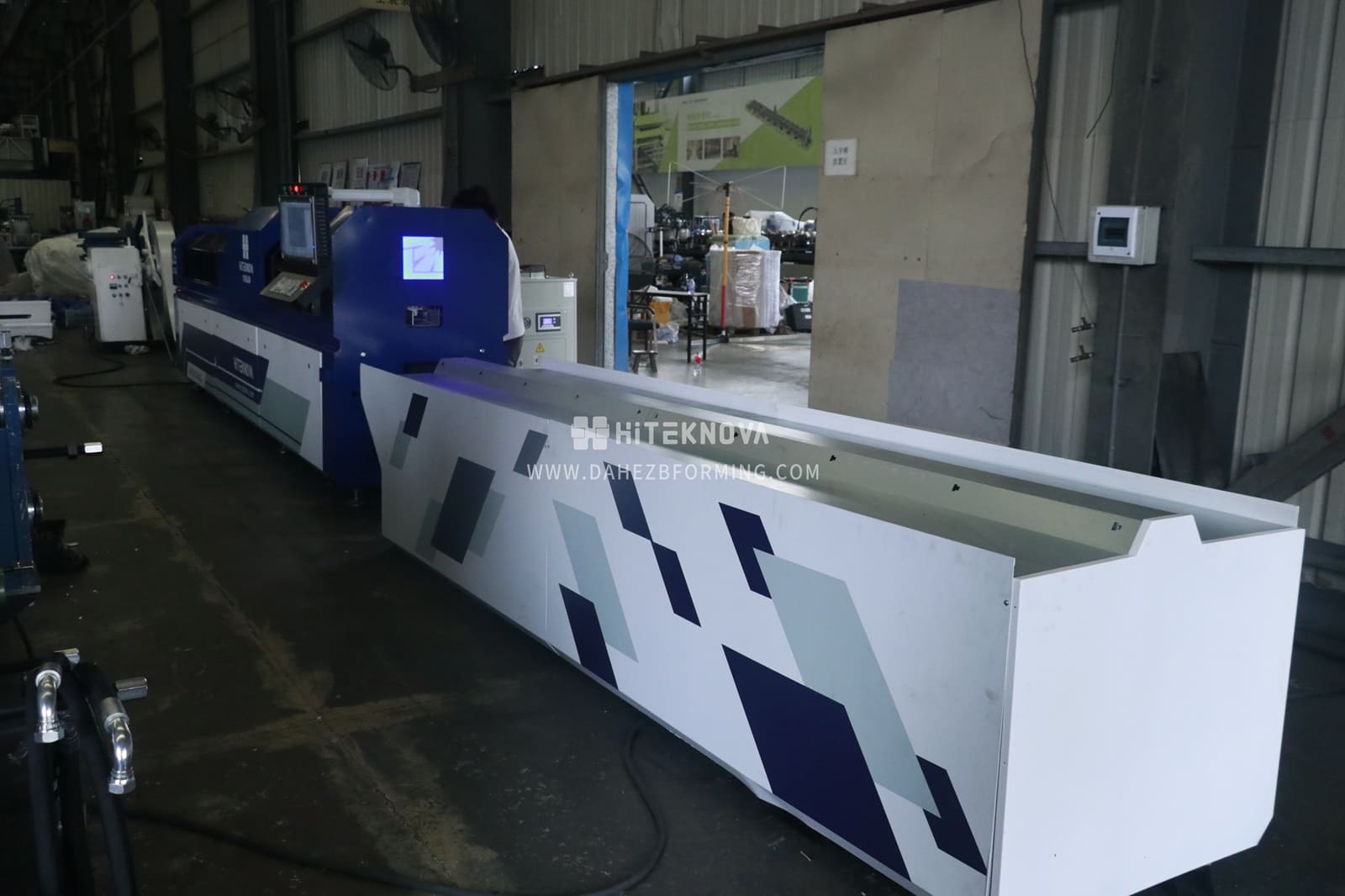

The HITEKNOVA LG2025 Series is a smart and flexible roll-forming system designed for construct walls, floors and roofs for 1 – 3 level residential, modular and transportable units, and light commercial construction. Engineered for high forming precision, greater flexibility, and enhanced production efficiency, the LG2025 delivers exceptional performance and reliability across a wide range of building applications.

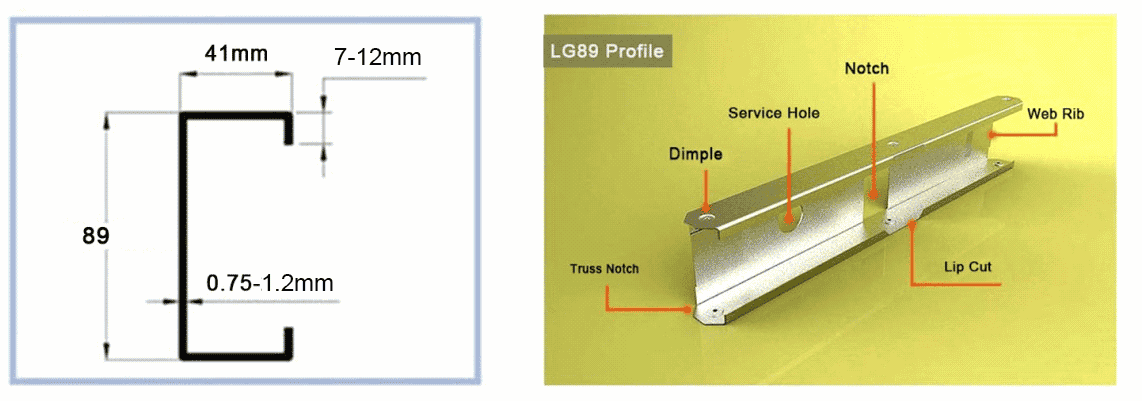

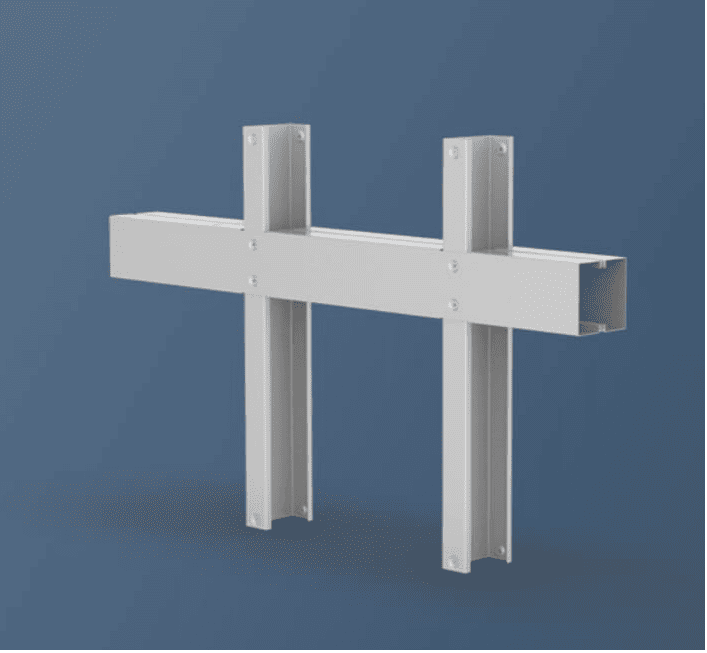

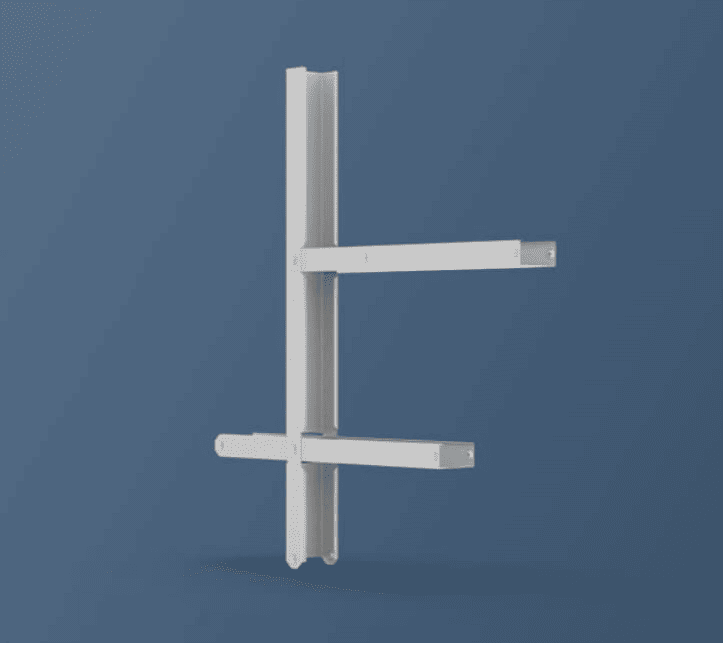

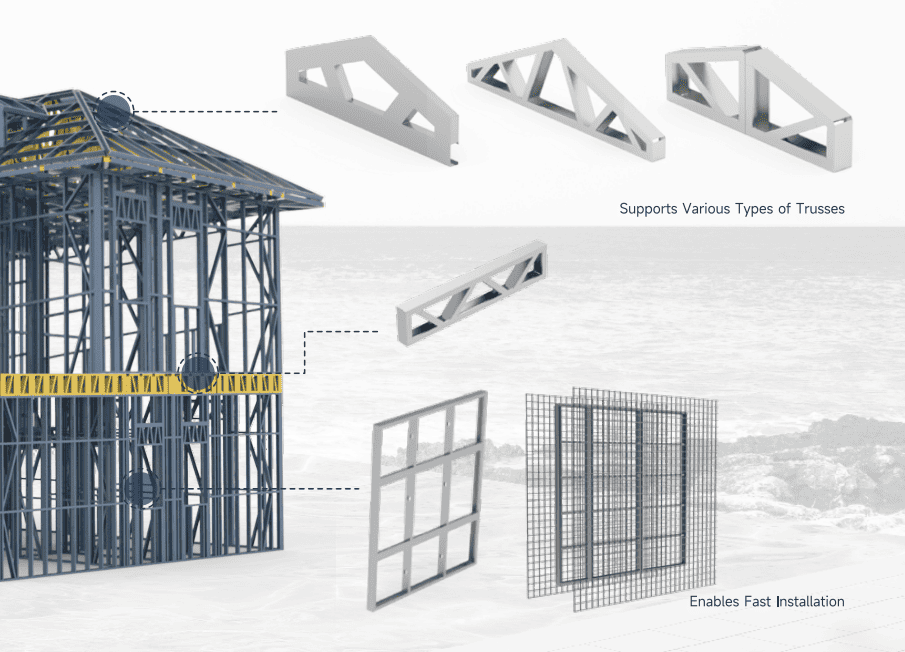

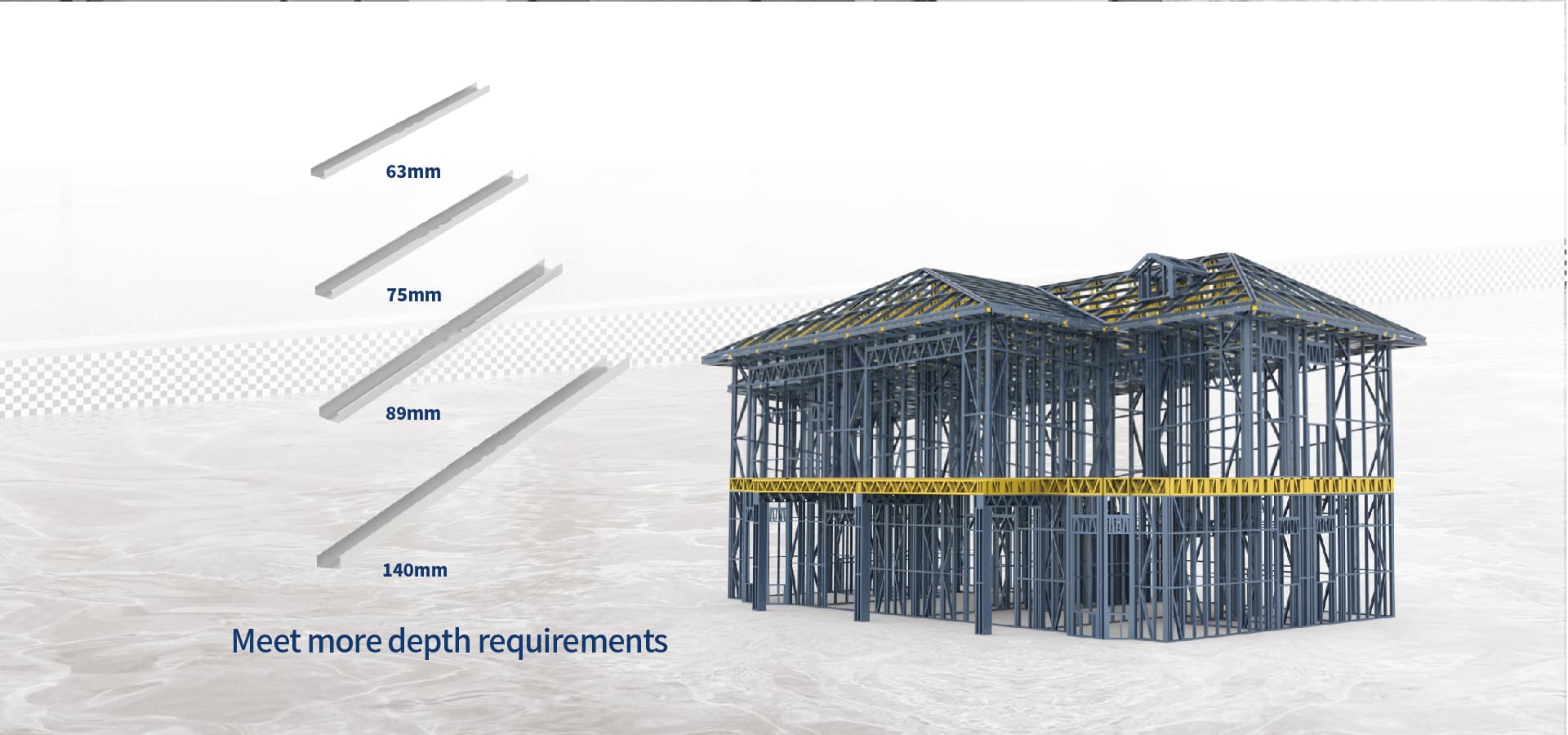

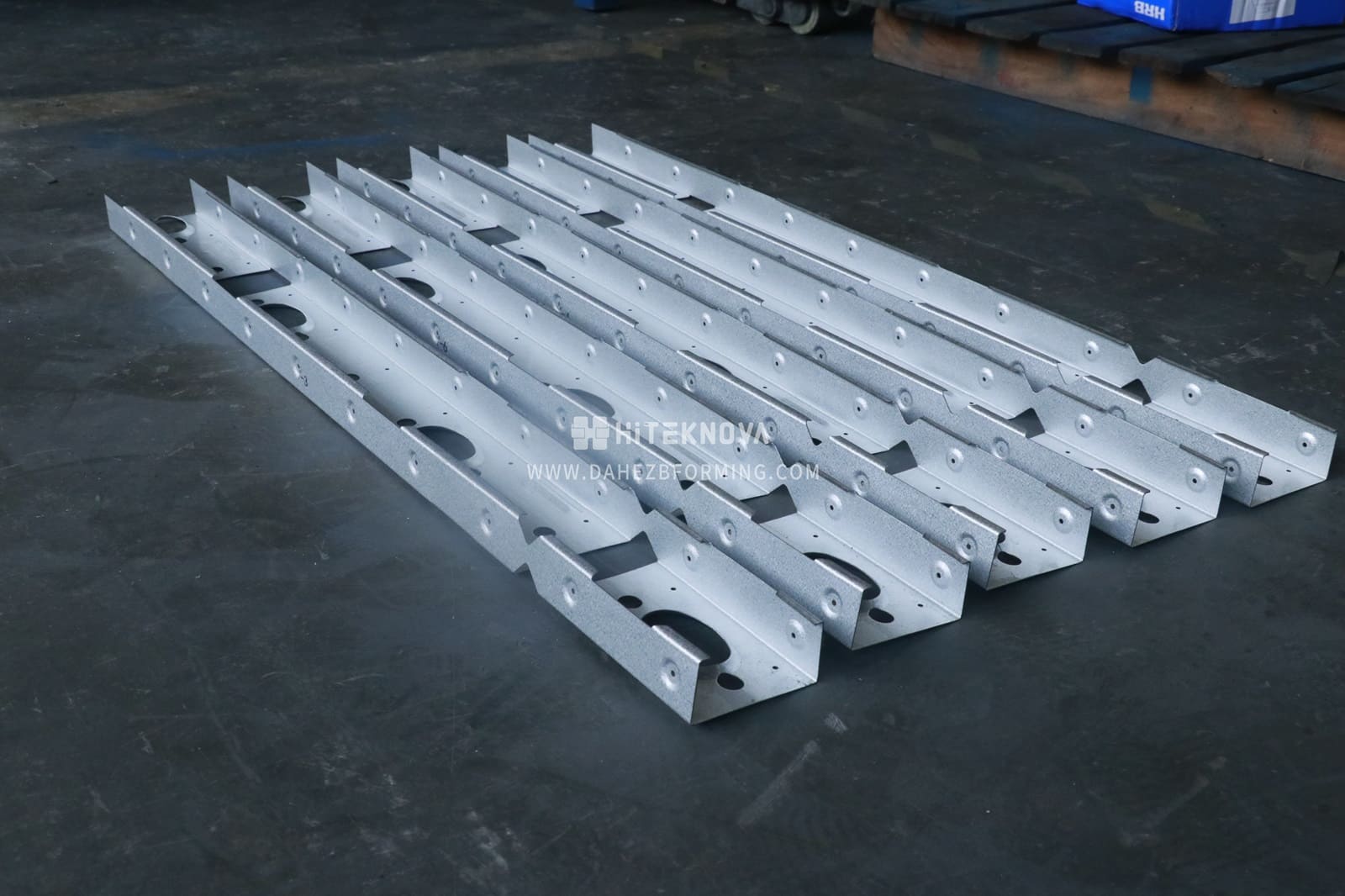

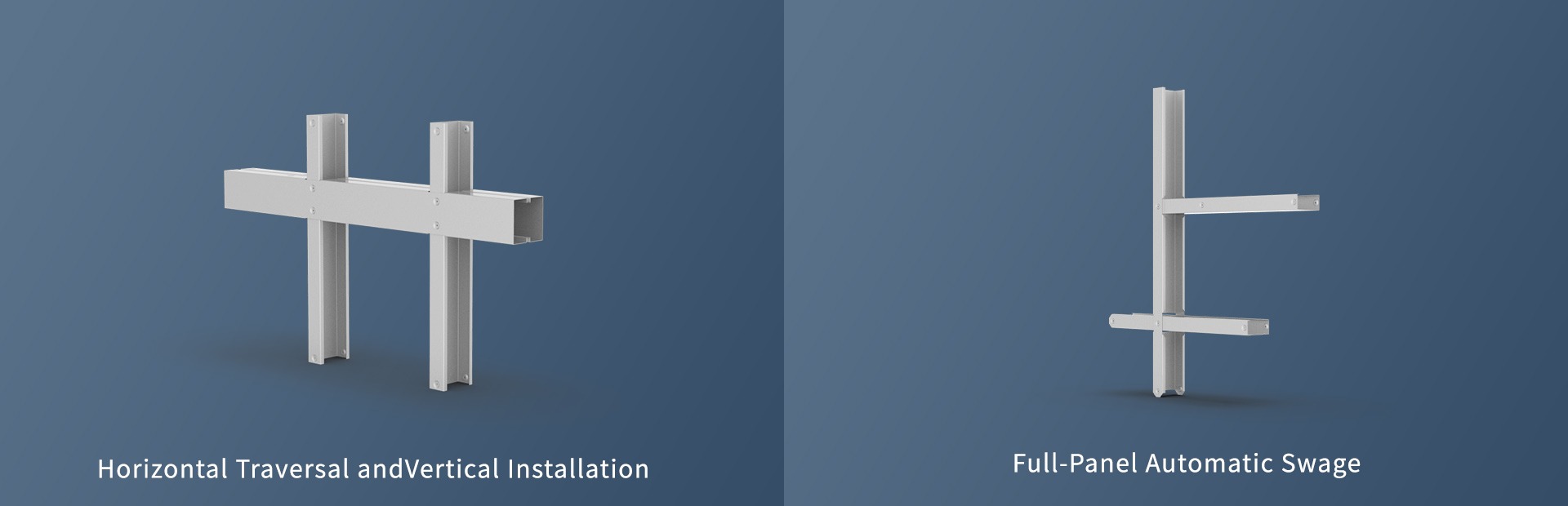

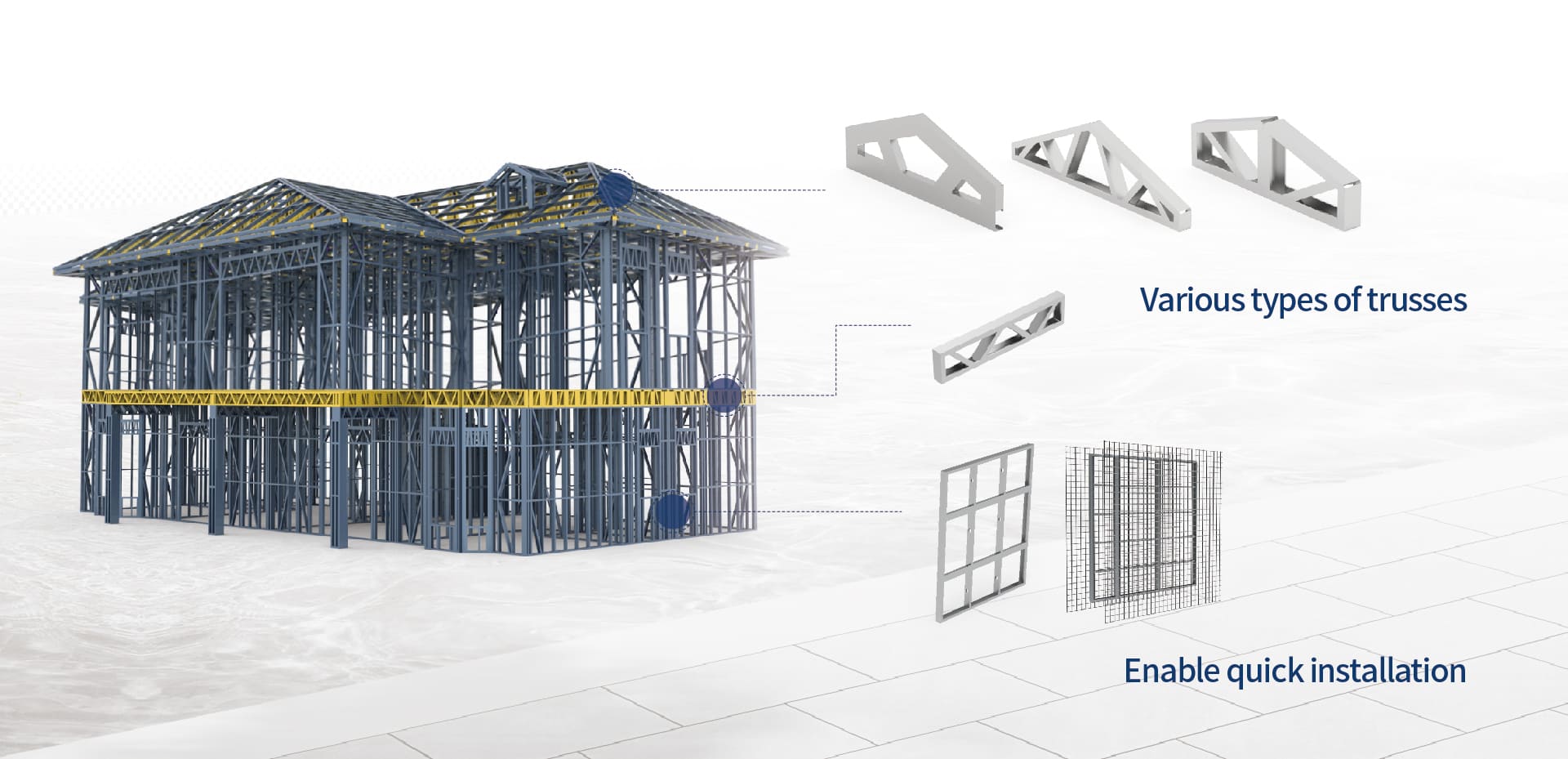

Producing profiles from 63mm (2.5″), 75mm (3″), 89mm (3.5″), and 140mm (5.5″) in width and up to 1.6mm (16 gauge) in thickness, the LG2025 achieves production speeds of up to 2700m (8858ft) per hour. It supports back-to-back trusses and quick horizontal installation, ideal for various framing and truss components.

Technology Parameters

Quick detail
Item	Specification
Model number	LG2025

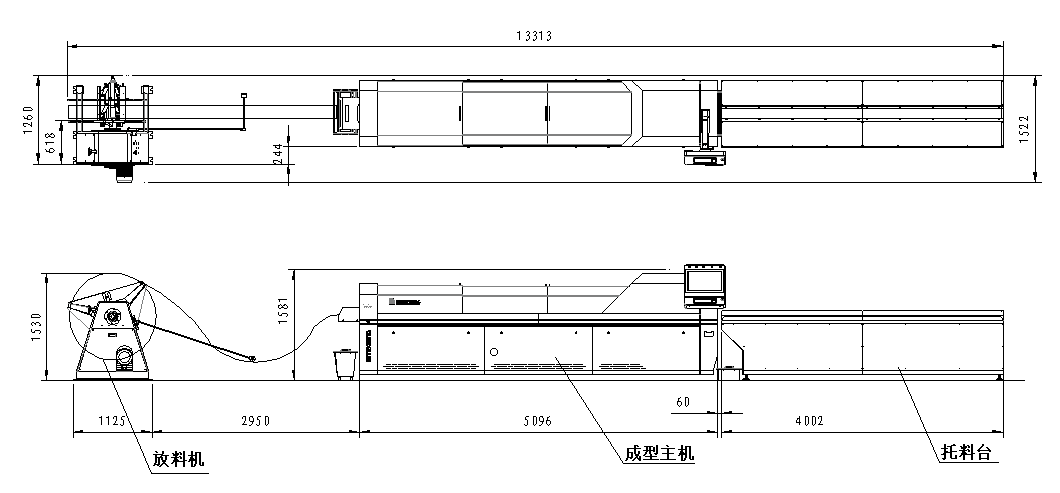

Dimensions L x W x H	5.8m x 1.25m x 1.65m
Weight	4.3T
Drive Motor Power	7.5kW
Hydraulic Power	7.5kW
Hydraulic Tank	160L

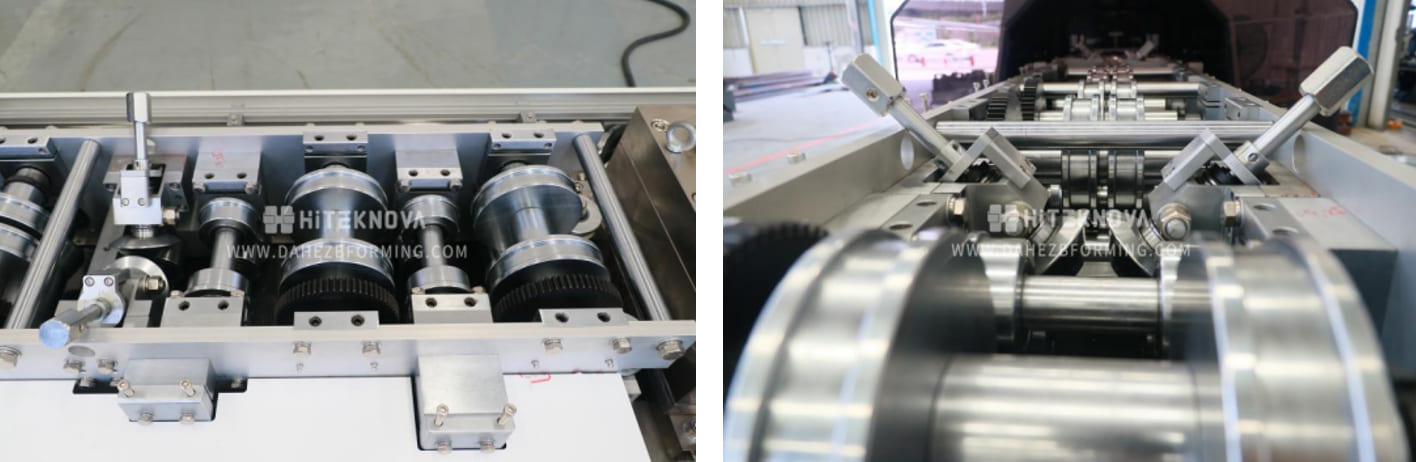

Forming Stages	16
Line Speed	48m/min

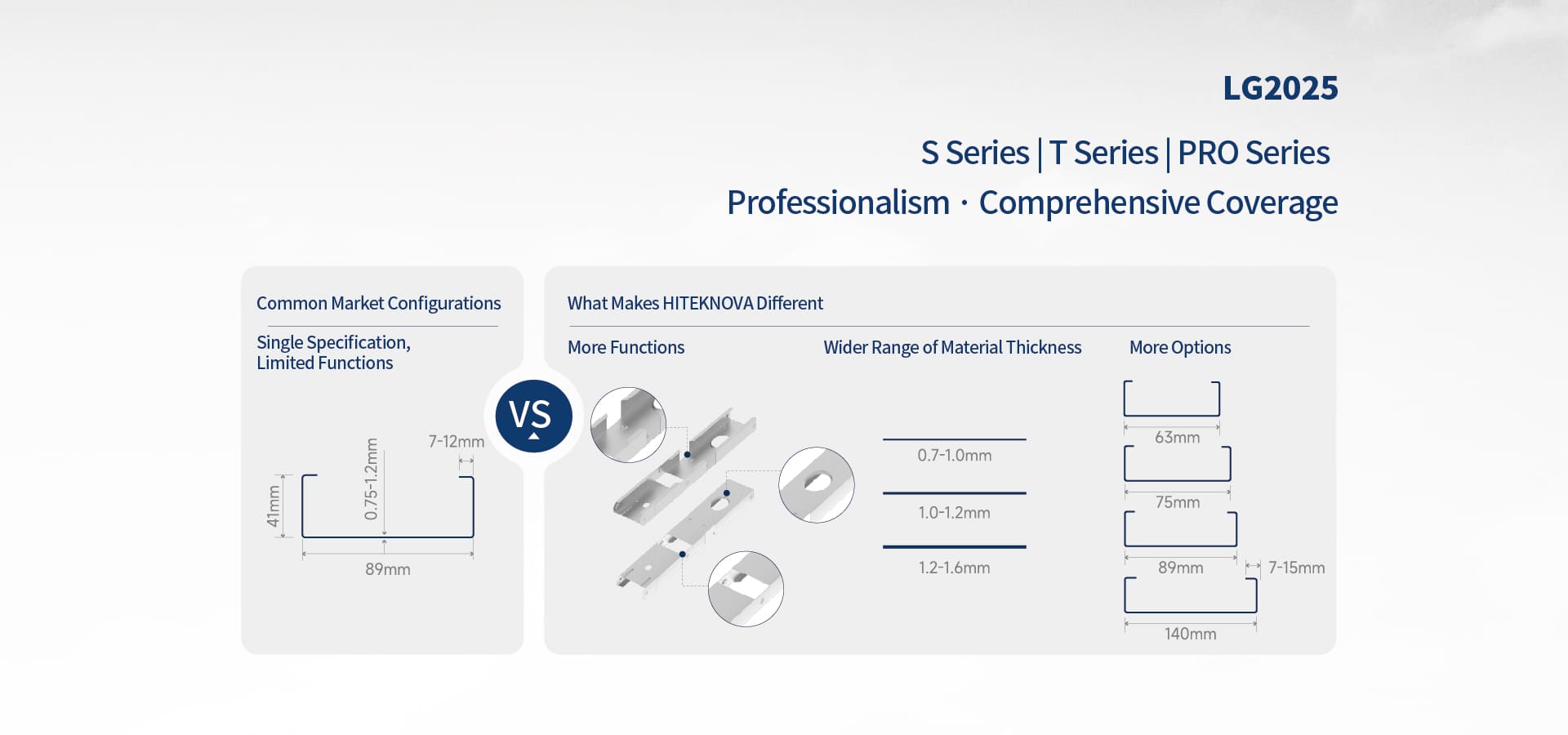

Profile Width Range	63 / 75 / 89 / 140mm
Maximum Thickness	1.6mm

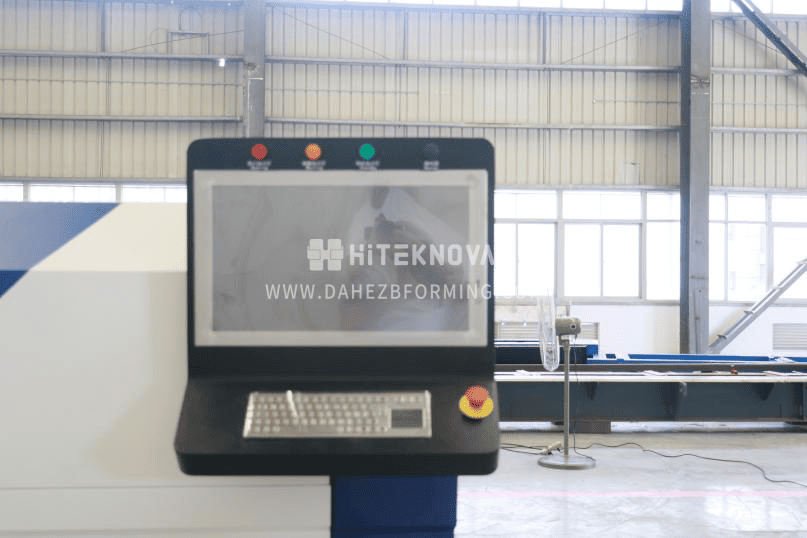

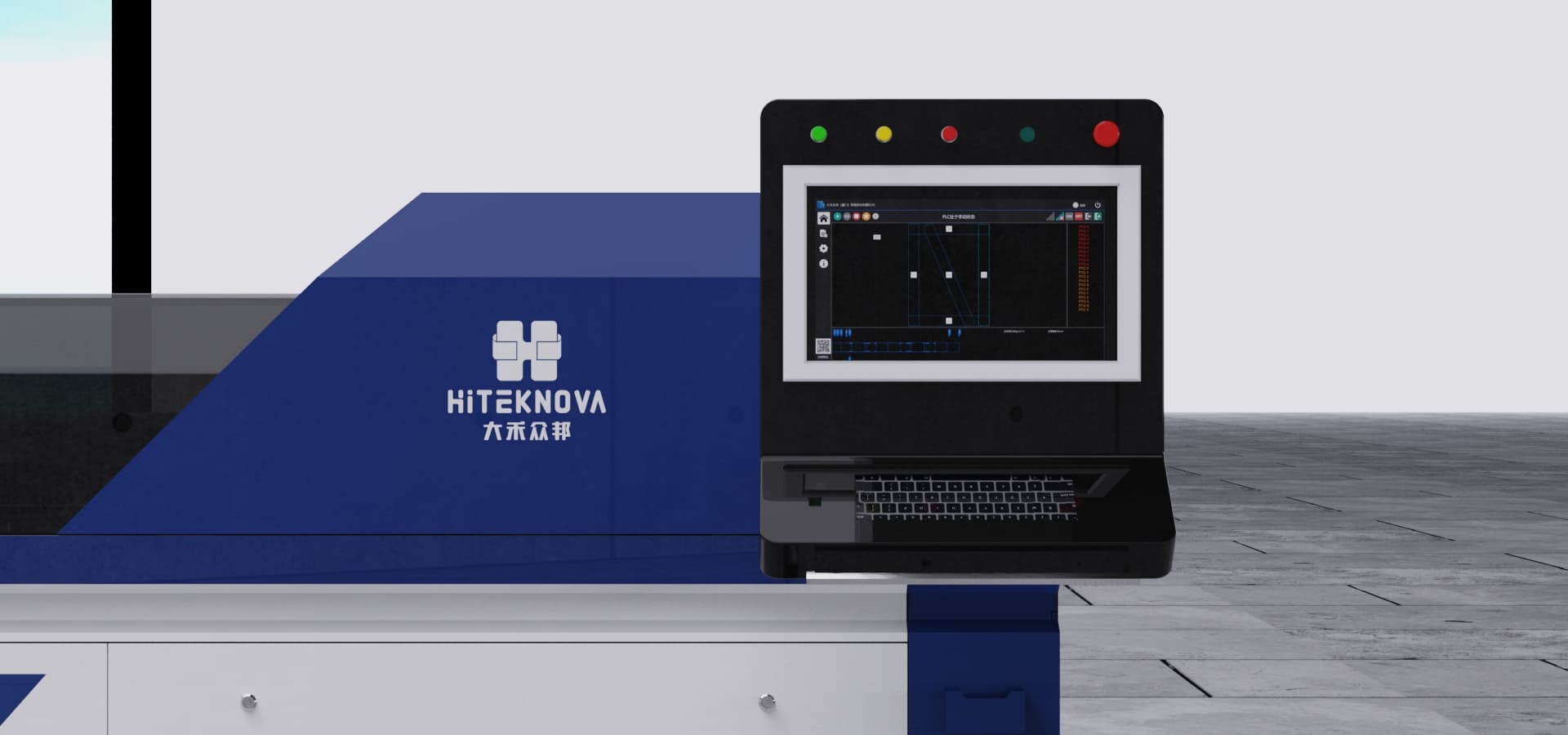

Touch Screen	Panel PC (Windows 10)
Machine Input Files	CSV

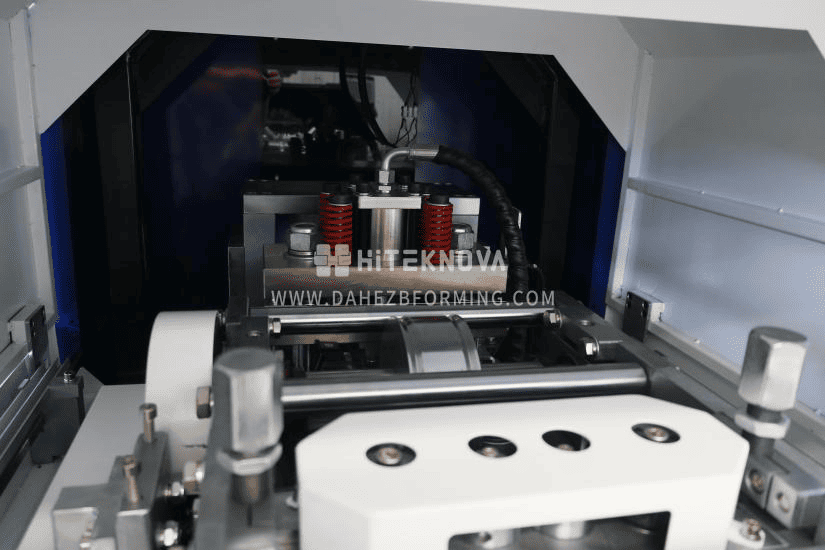

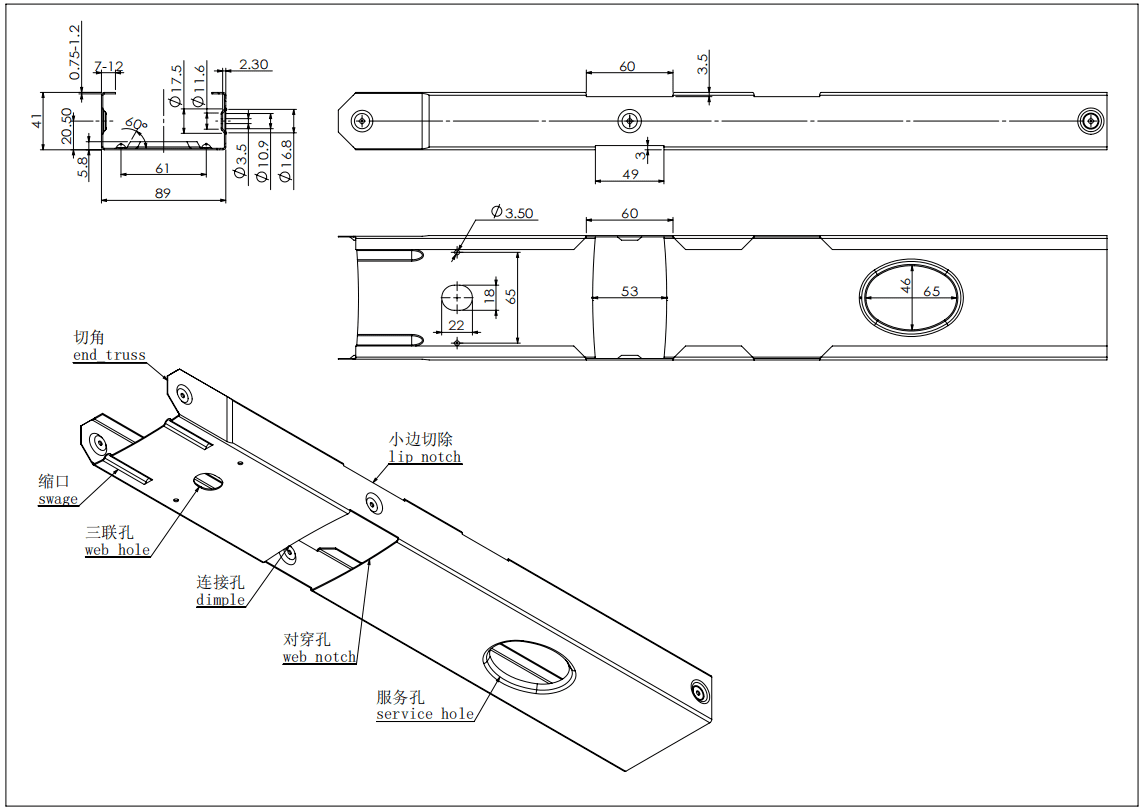

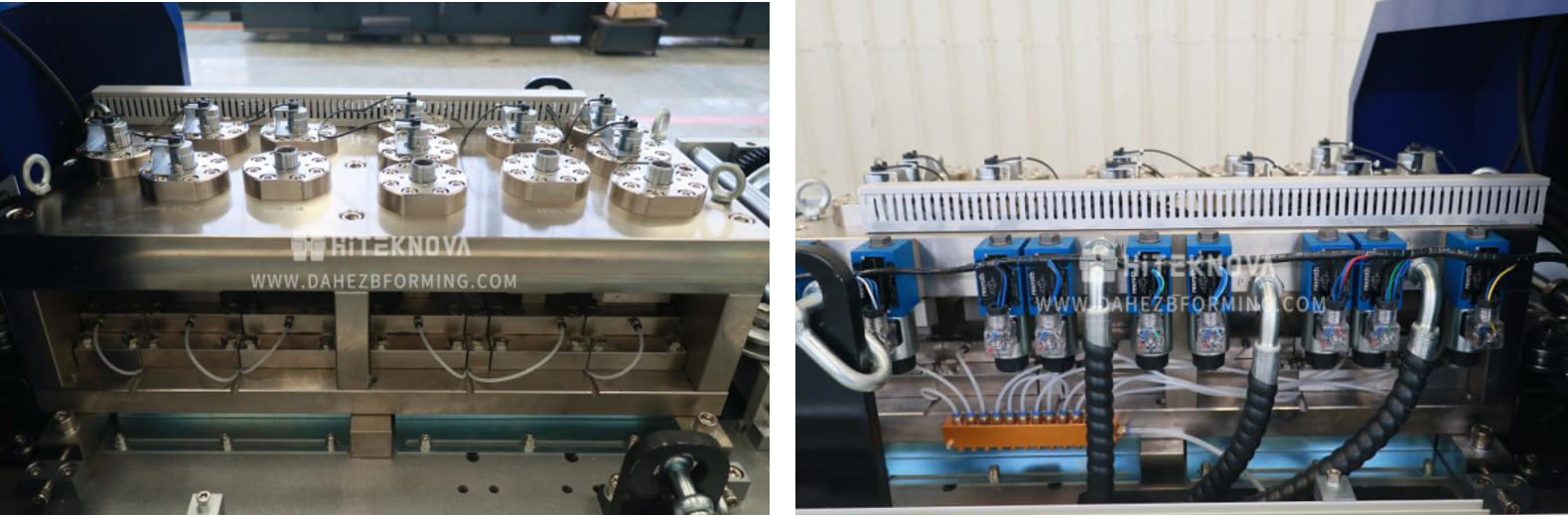

Tooling	11 Standard Tools

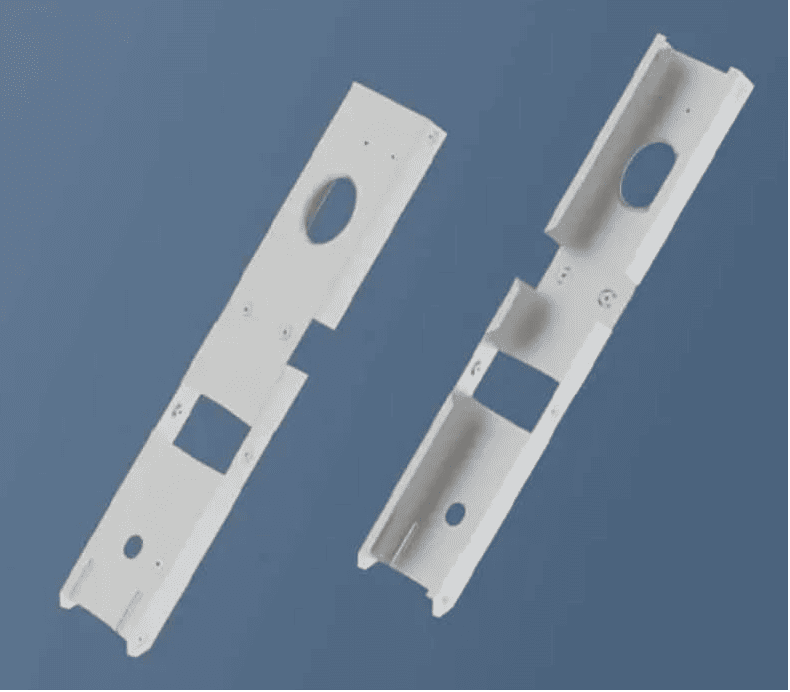

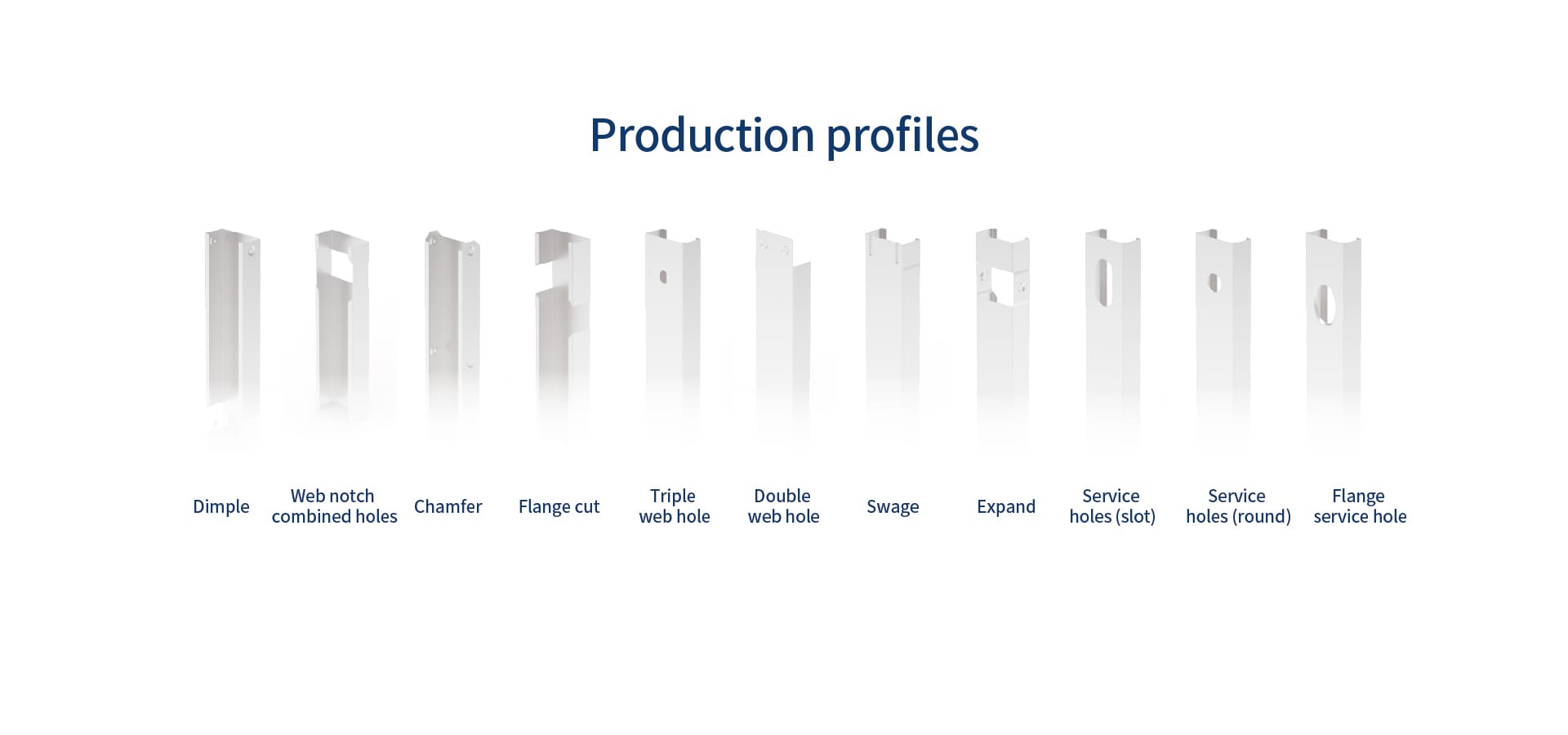

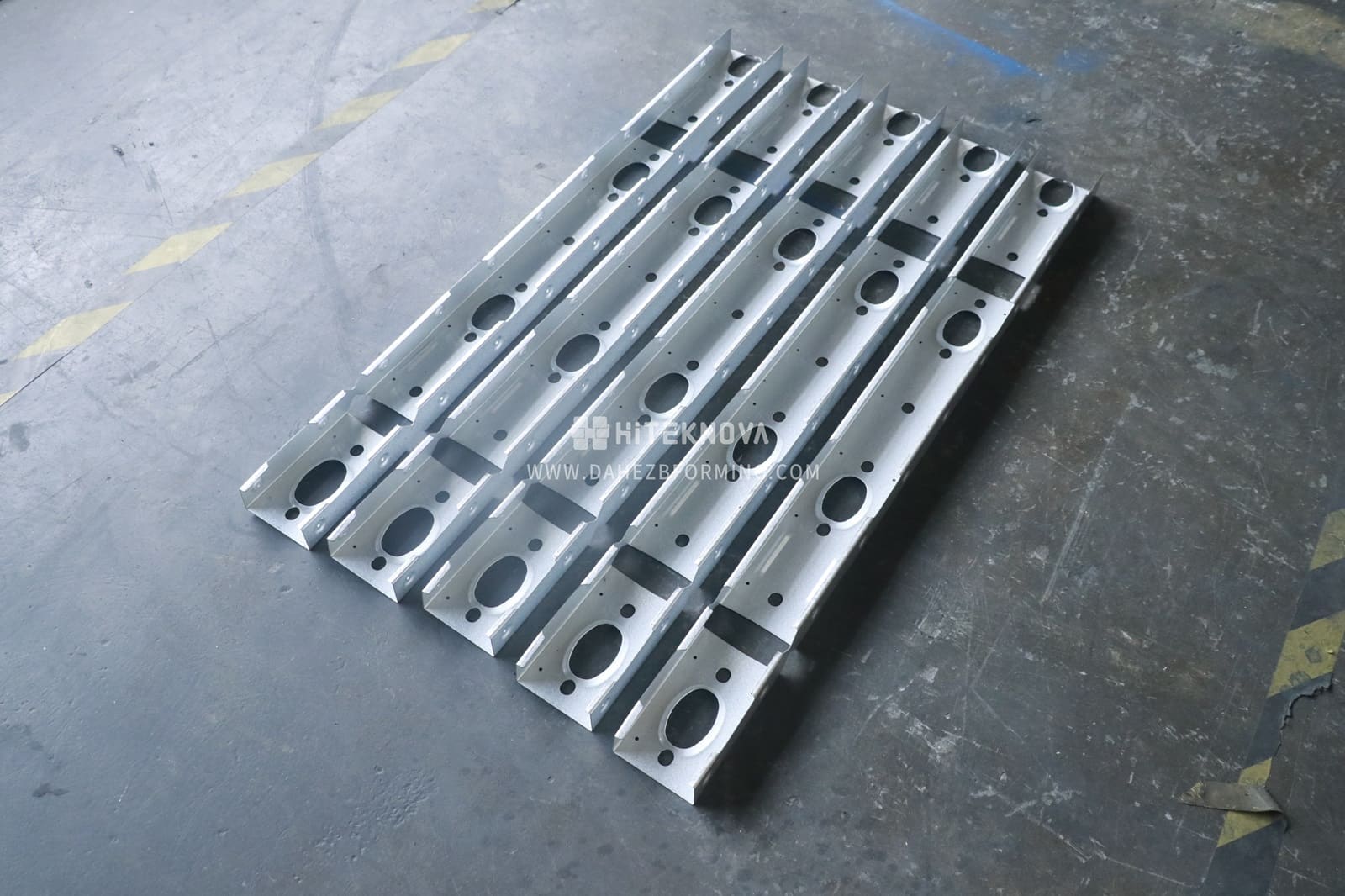

	1. End Truss2. Swage3. Web Hole4. Dimple5. Web Notch6. Web Dimple7. Service Hole8. Triple Web Hole9. Lip Notch10. Flange Cut11. Equipped with punching and expanding molds to facilitate connection of thick plates.

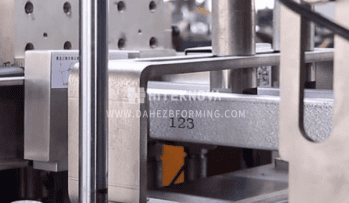

Component Marking	Dual Head Inkjet Printer
