DETAILS

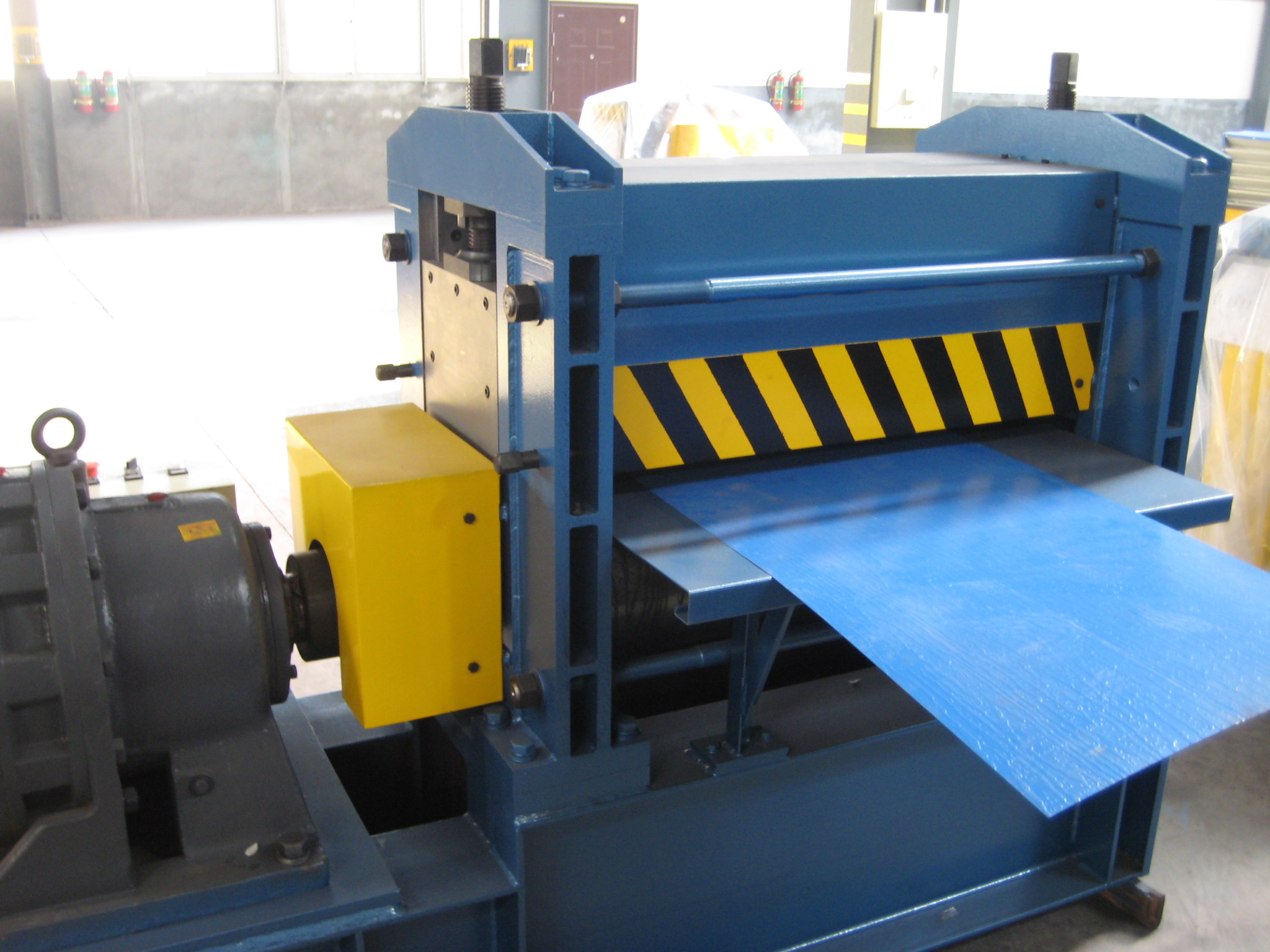

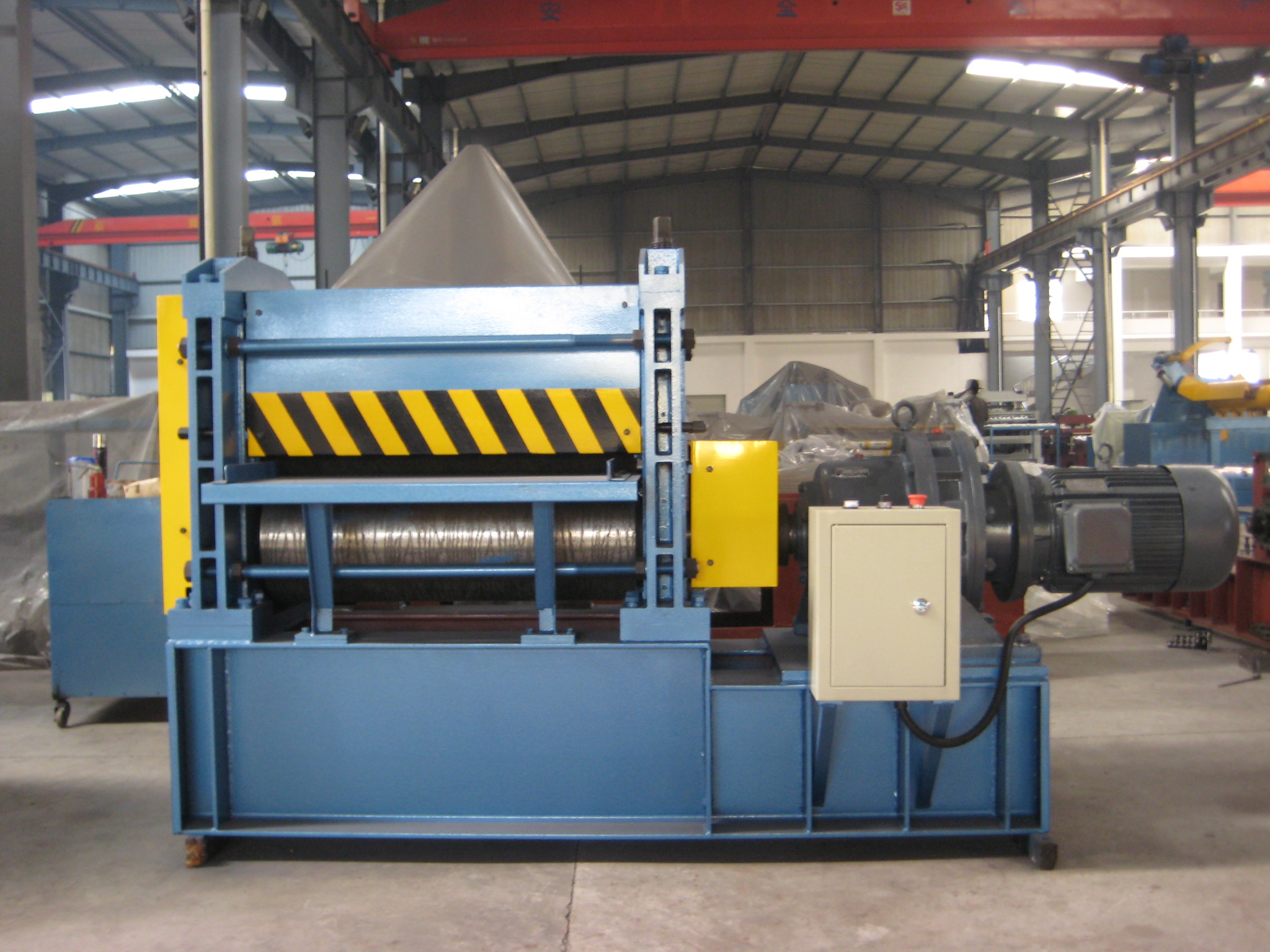

This embossing press machine is suitable for guard door, steel structure.
Technical data of Embossing forming machine
| Suitable Material | Pre-painted Galvanized steel or Galvanized steel |
| Width of raw material | 1250mm (other width is available) |
| Thickness of raw material | 0.3 mm -0.7mm (235-345Mpa) |
| Material of roller | 45# steel embossed with the flower and quenched treetment |
| Power Requirement | motor power: 11Kw(Depend on final design) |
| Weight of machine | About 2700KGS |
| Size of machine | About 1.0 m x 2.55 m x1.5m |
