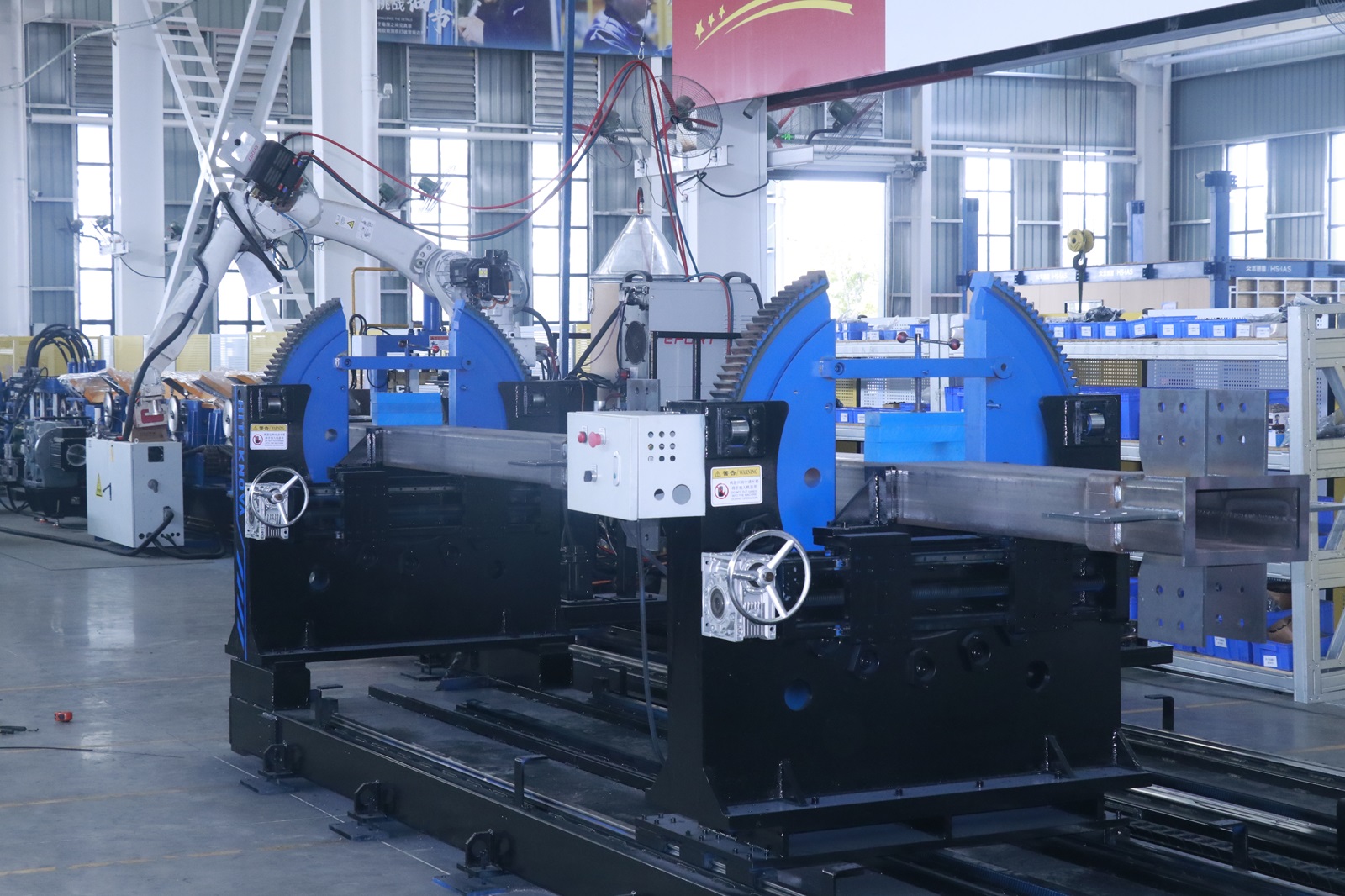

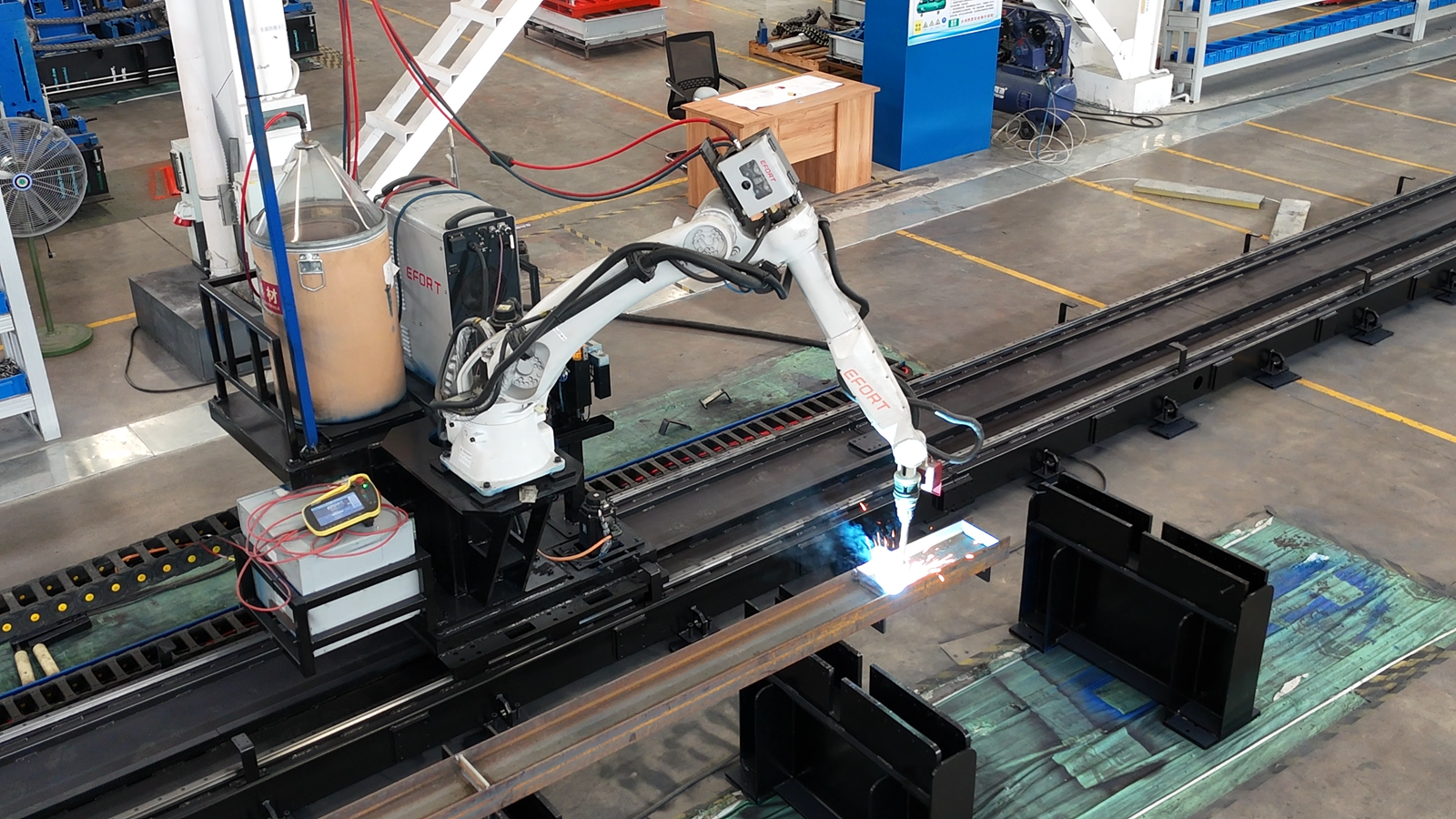

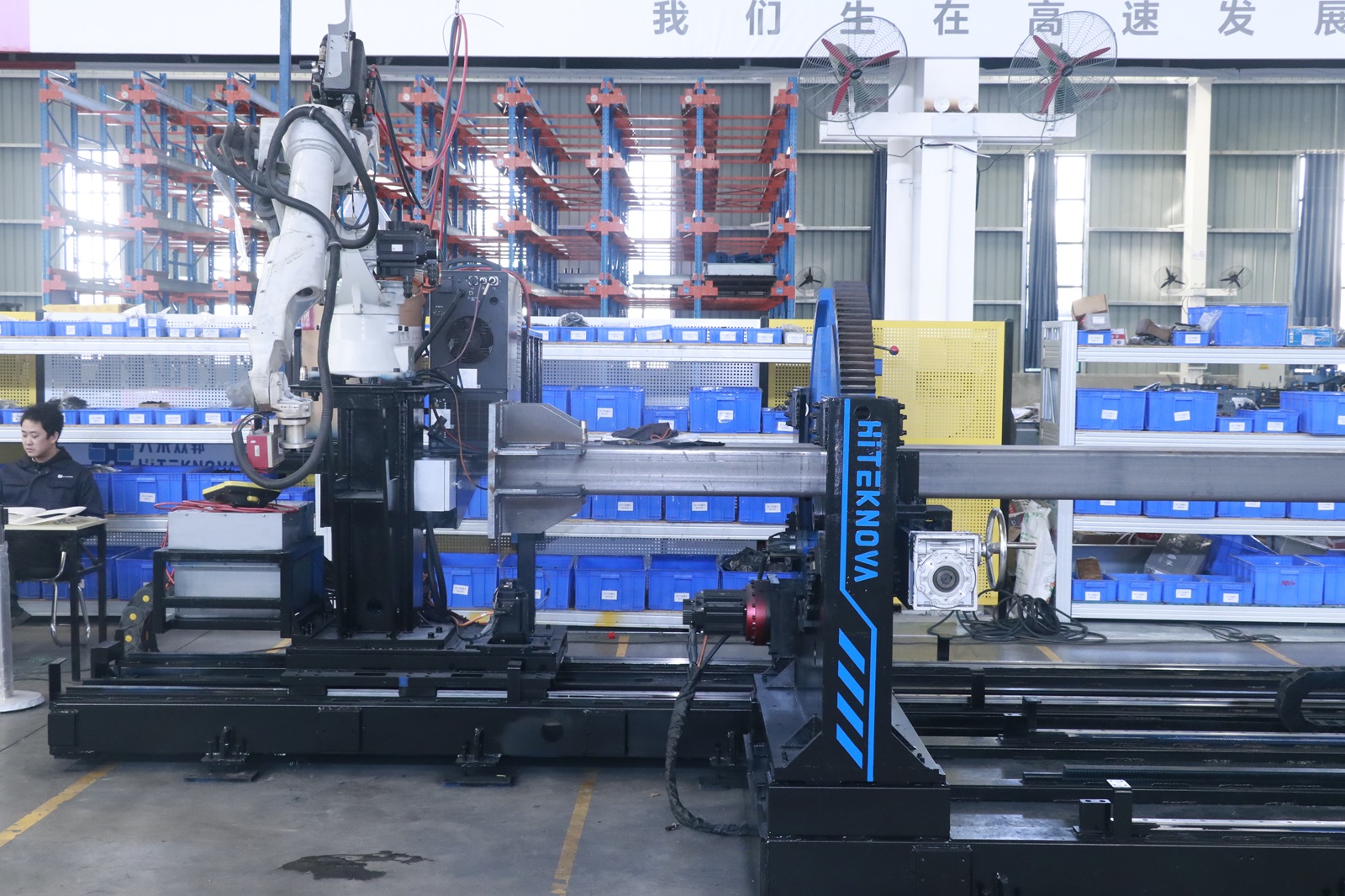

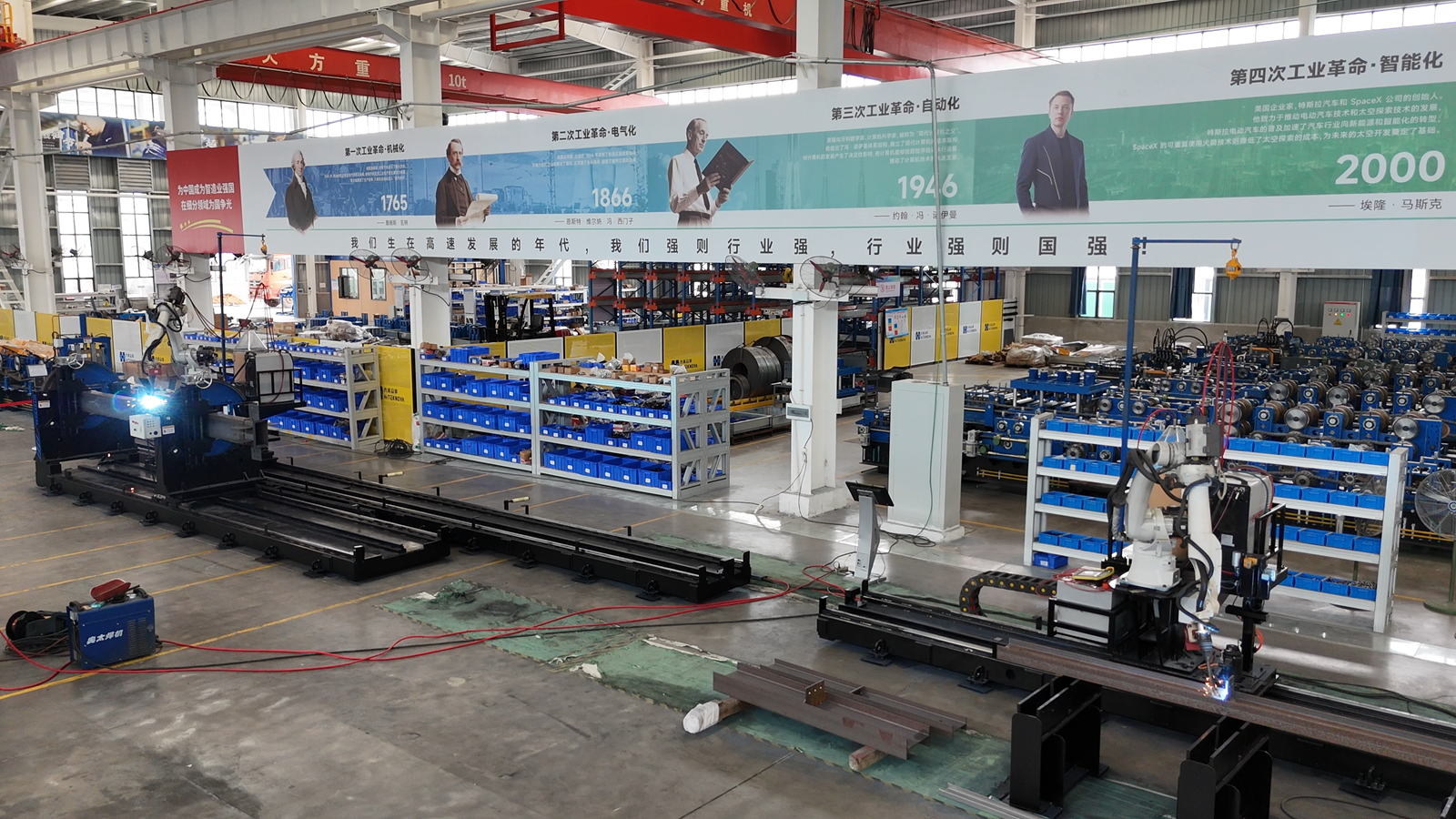

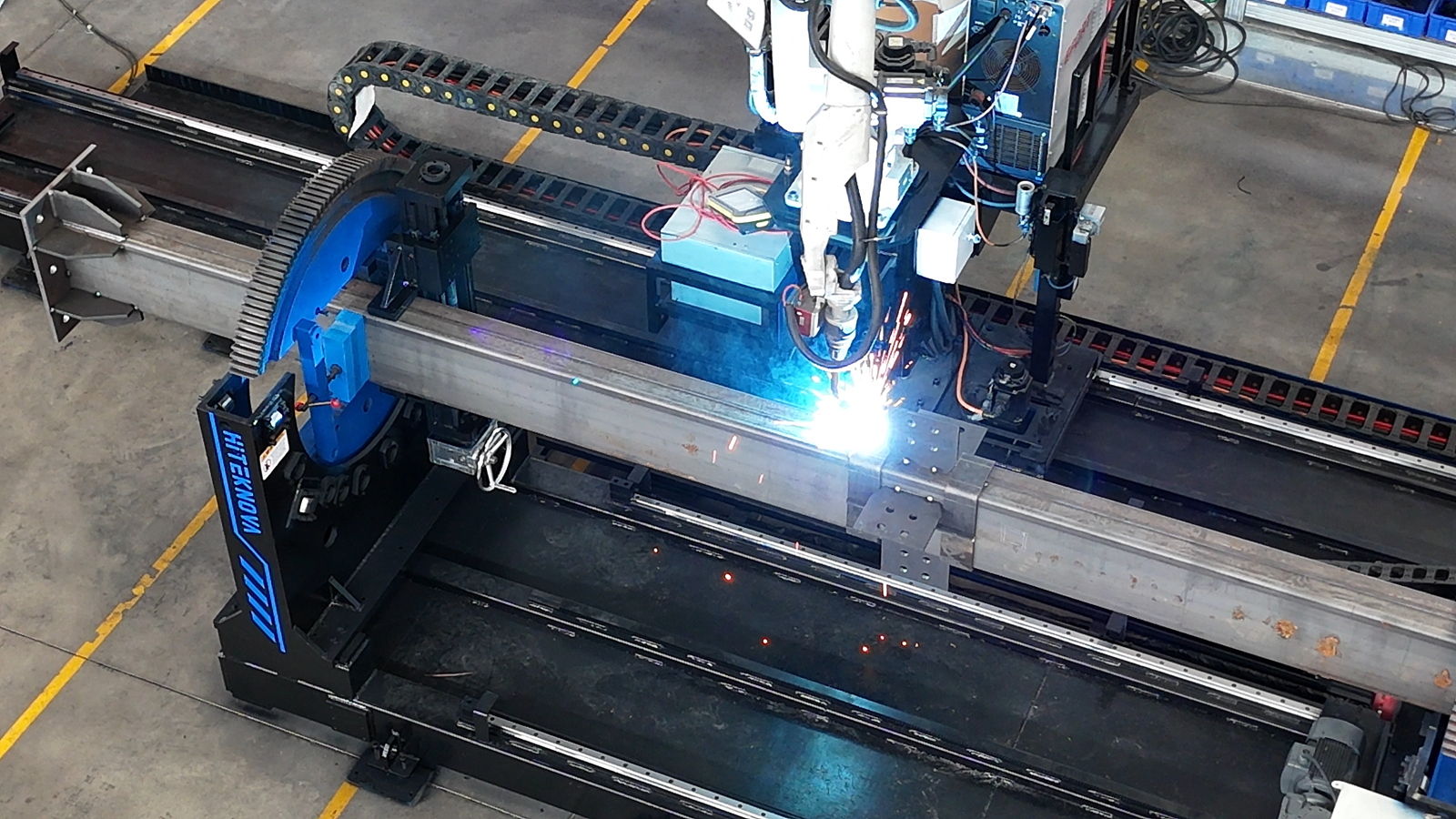

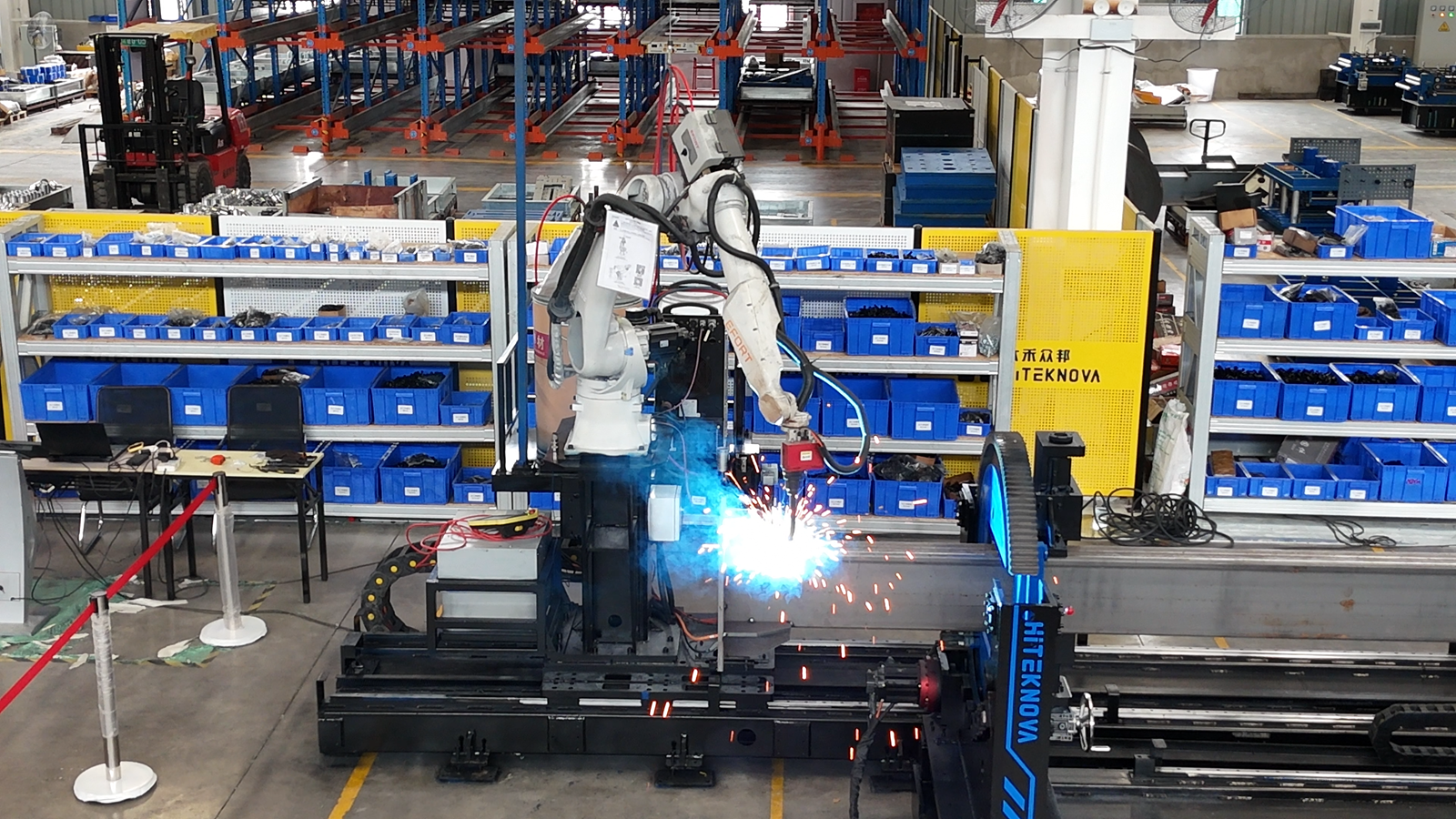

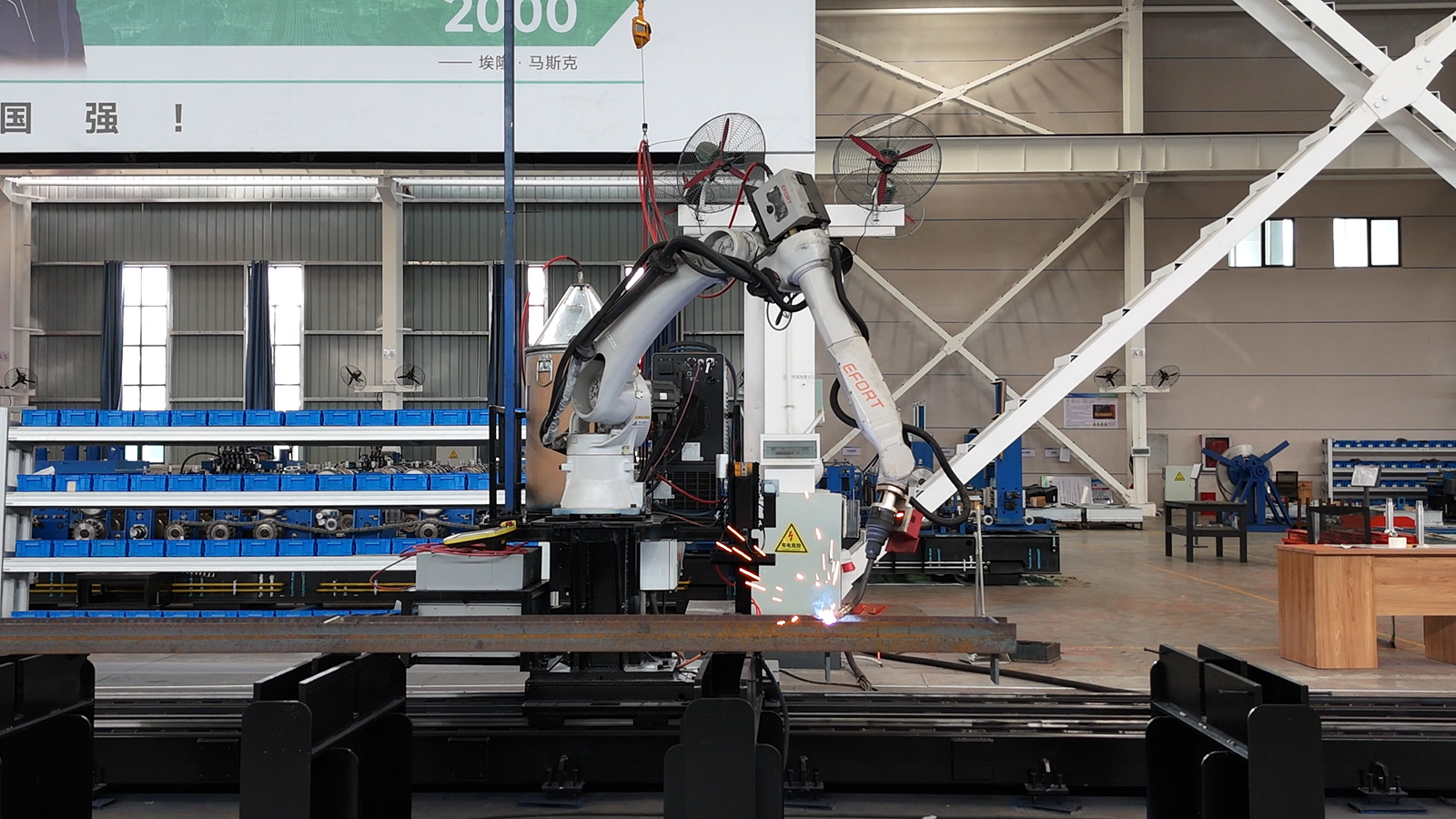

Heavy Steel Robotic Fast Welding Workstation HW1240F

DETAILS

The HW1240F Heavy Steel Robotic Fast Welding Workstation is engineered for efficient welding of H-beams, steel beams, and medium-to-small structural components.

Designed for high-throughput steel fabrication, it supports long workpieces, automated weld seam recognition, intelligent path planning, and coordinated dual-robot operation. The system improves welding consistency while reducing manual programming and rework caused by thermal deformation.

Key Features

Designed specifically for H-beam and structural steel welding
Handles extra-long workpieces with stable and reliable operation
Supports single-robot or dual-robot coordinated welding
Suitable for symmetrical welding, helping reduce deformation and improve productivity
Automatic weld seam recognition, path calculation, and welding sequence planning
No teaching required for routine welding tasks
Automatic pre-weld correction for thermal deformation on long structural components
Intelligent and stable welding control for improved consistency and detail accuracy
Custom configurations available for different workpiece sizes and production requirements

Machine Parameters

Item	Specification
Model	HW1240F
Maximum Workpiece Size	12,000 × 400 × 500 mm
Welding Speed	5–10 mm/s
Applicable Material	Q235 / Q355 Structural Steel
Application	H-Beams, Steel Beams, Medium and Small Steel Structures
Customization	Available

Intelligent Welding Advantages

IFC Drawing Import

Import IFC drawings with one click. The system automatically generates welding paths based on the structural model, reducing manual setup time and improving programming efficiency.

Automated Weld Seam Recognition

The workstation identifies weld seams automatically, calculates the welding trajectory, and arranges the welding sequence for more efficient operation.

Dual-Robot Linkage

Single-robot and dual-robot modes are available. Dual-robot coordinated welding supports symmetrical welding processes, improves productivity, and helps minimize workpiece deformation.

Long Workpiece Deformation Correction

For extra-long structural components, the system can automatically correct thermal deformation before welding, helping ensure better dimensional accuracy.

Multi-Layer Weld Path Generation

For wide weld seams, the system automatically generates multi-layer welding paths, reducing the need for manual intervention and editing.

HW1240F vs. Conventional Welding Equipment

Comparison Item	HW1240F	Conventional Equipment
IFC Drawing Import	One-click import with automatic welding path generation	Manual setup of weld seam connection points required
Weld Seam Imaging	No separate pre-capture process required, enabling direct production welding	Pre-capture process required, increasing cycle time
Wide Weld Seam Handling	Automatically generates multi-layer welding paths	Requires manual intervention and manual editing
Welding Path Planning	Automatic recognition, path calculation, and sequence arrangement	Manual programming and path adjustment required
Long Component Welding	Supports long workpieces with automatic deformation correction	More dependent on manual correction and experience

Typical Applications

H-beam fabrication
Steel beam welding
Structural steel workshops
Prefabricated steel building components
Medium and small steel structure production
Steel frame and industrial construction components
