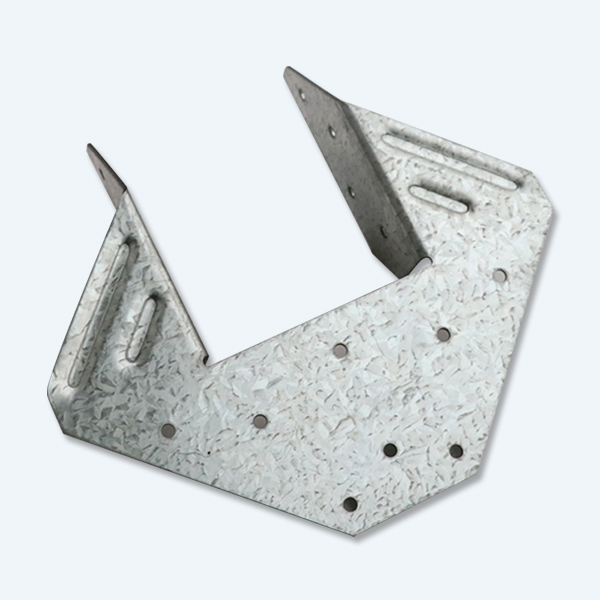

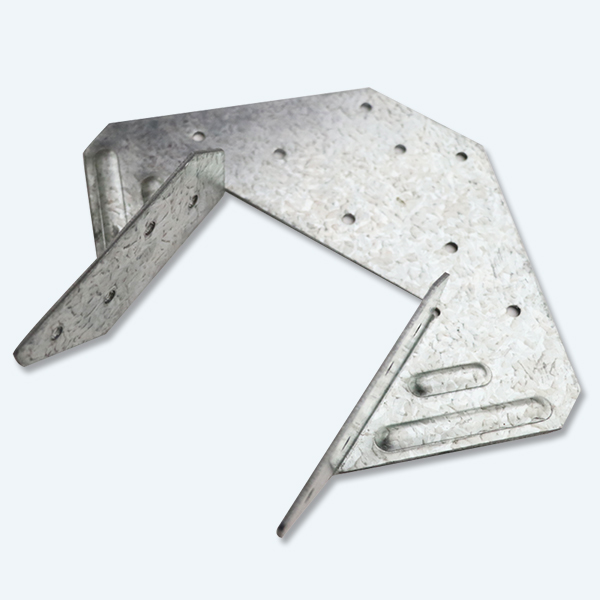

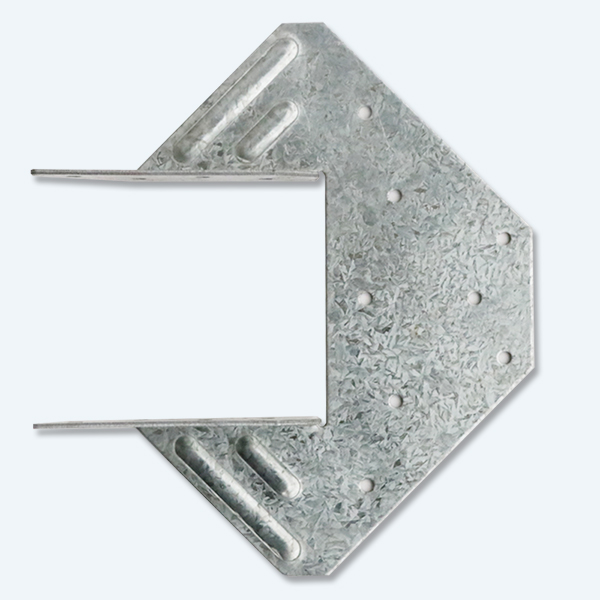

Rhombus strengthening connect parts

Rhombus strengthening connect parts

Model：LX210-20

Dimensions：210*189*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation instructions

Rhombus strengthening connect parts applied in connection of wall and roof trusses generally, and shall be applied in exterior wall as far as possible, in order to avoid unsmoothness in internal wall plates. the thin flat or round head washer drlling screw are used to connect the parts of the trusses, when there are no other spaces on the two sides, the outer hexagonal tail screws may be used.

Truss,， A top of wall LGS，A vertical wall LGS，

Rhombus strengthening connect parts

Introduction

Integral molding and add rib, pre-punching, with higher strength. Replace truss connect parts and Wind resistance connect parts in the case of no small truss,

Installation Diagram

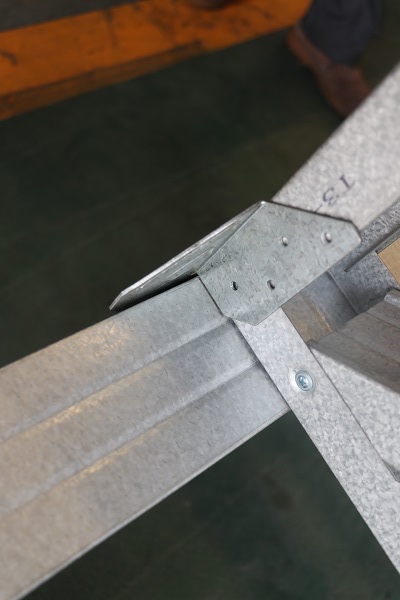

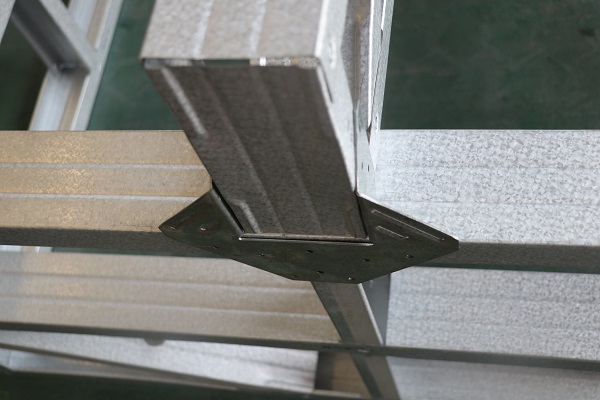

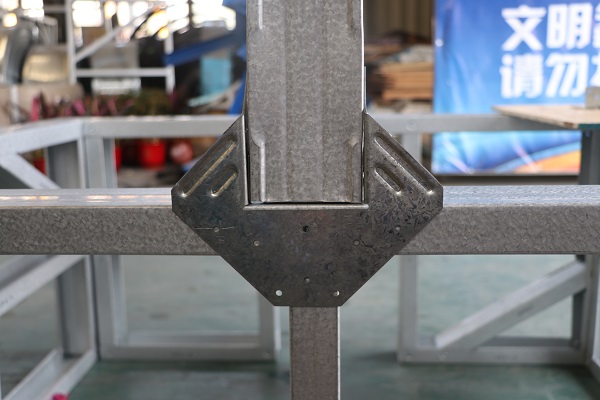

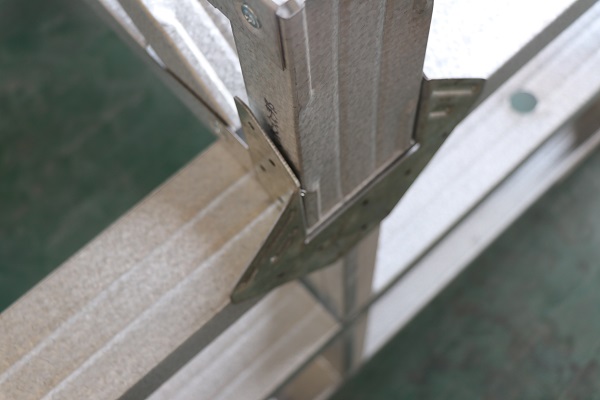

Truss and wall connect
