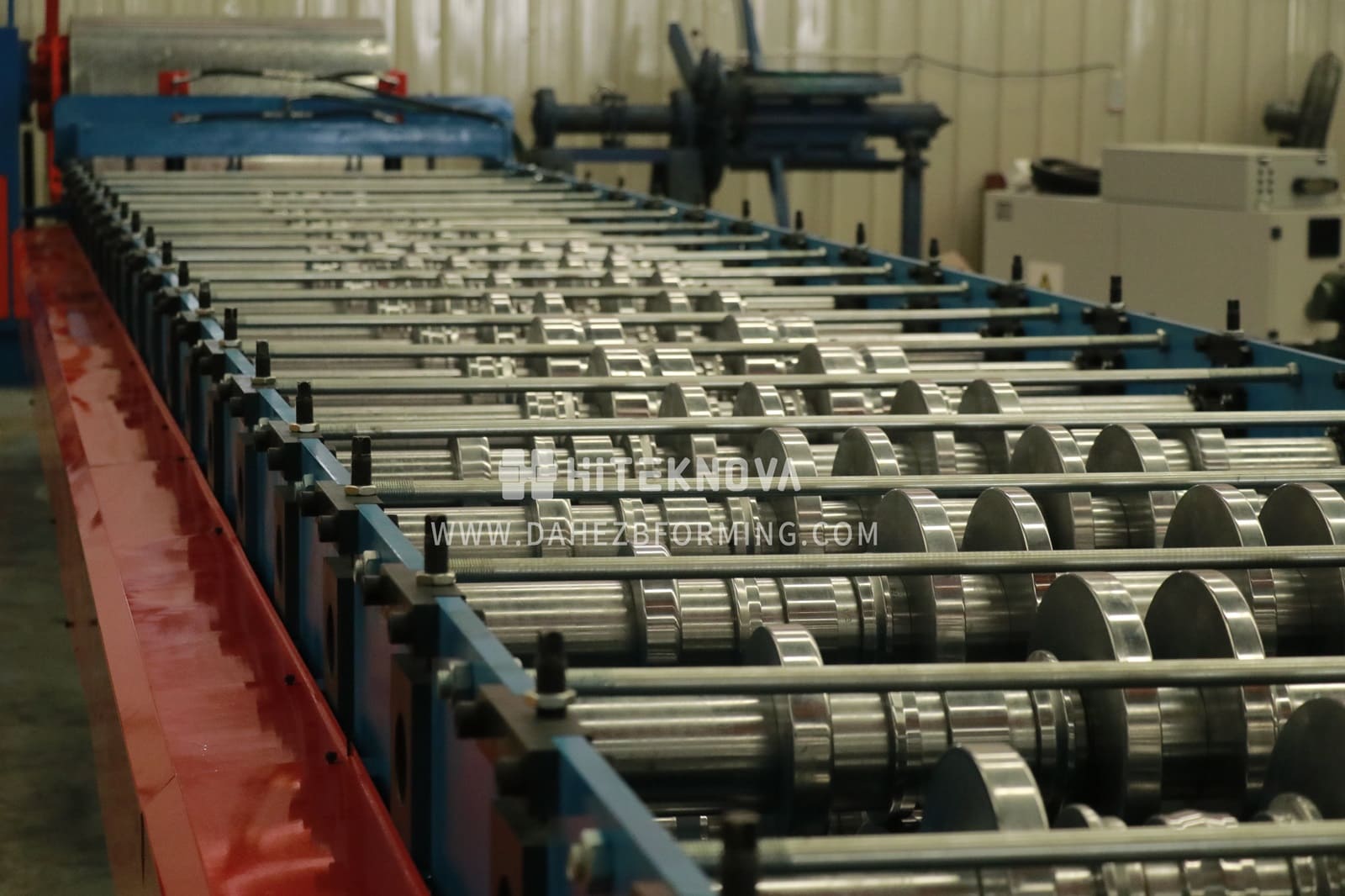

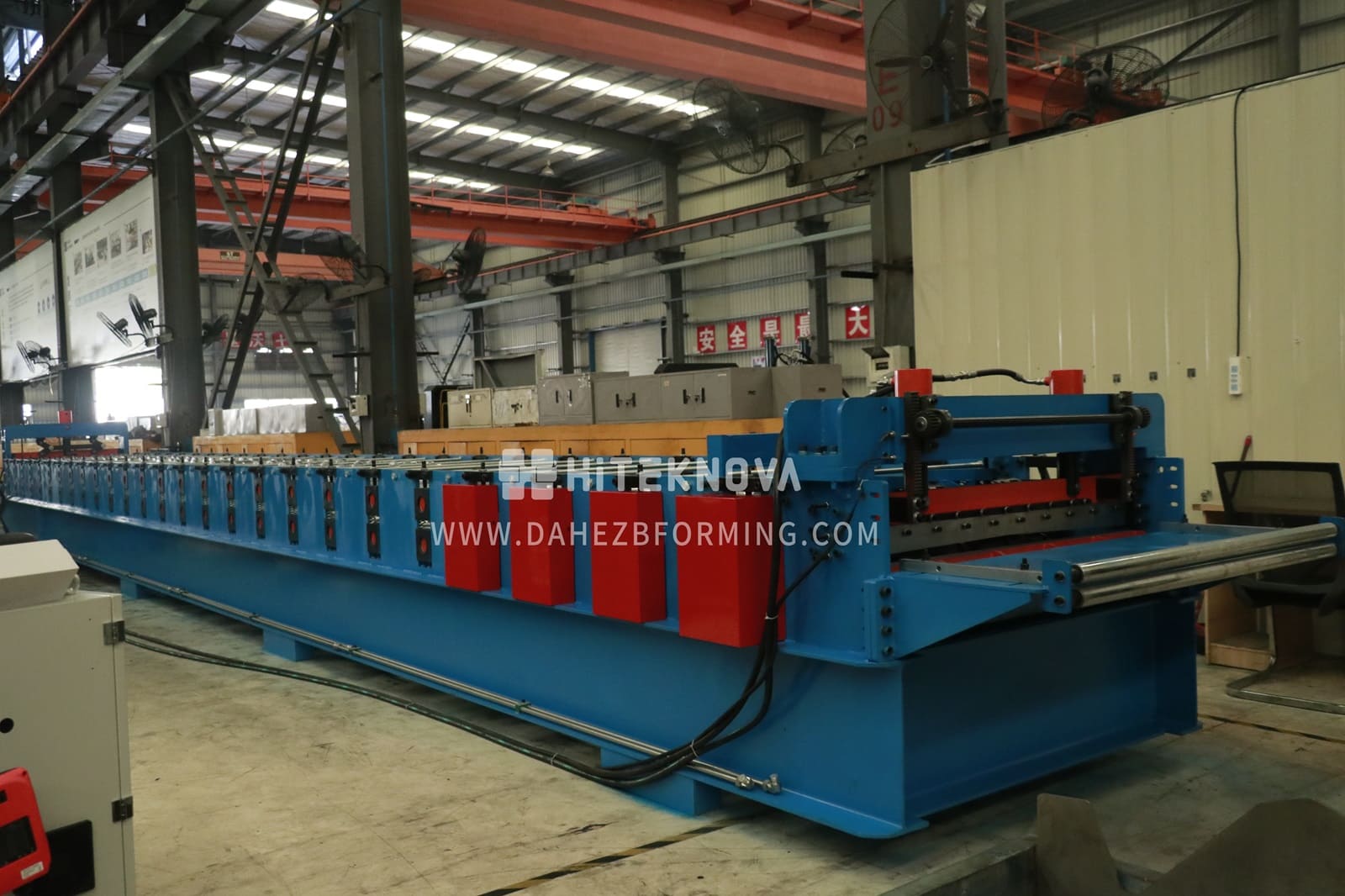

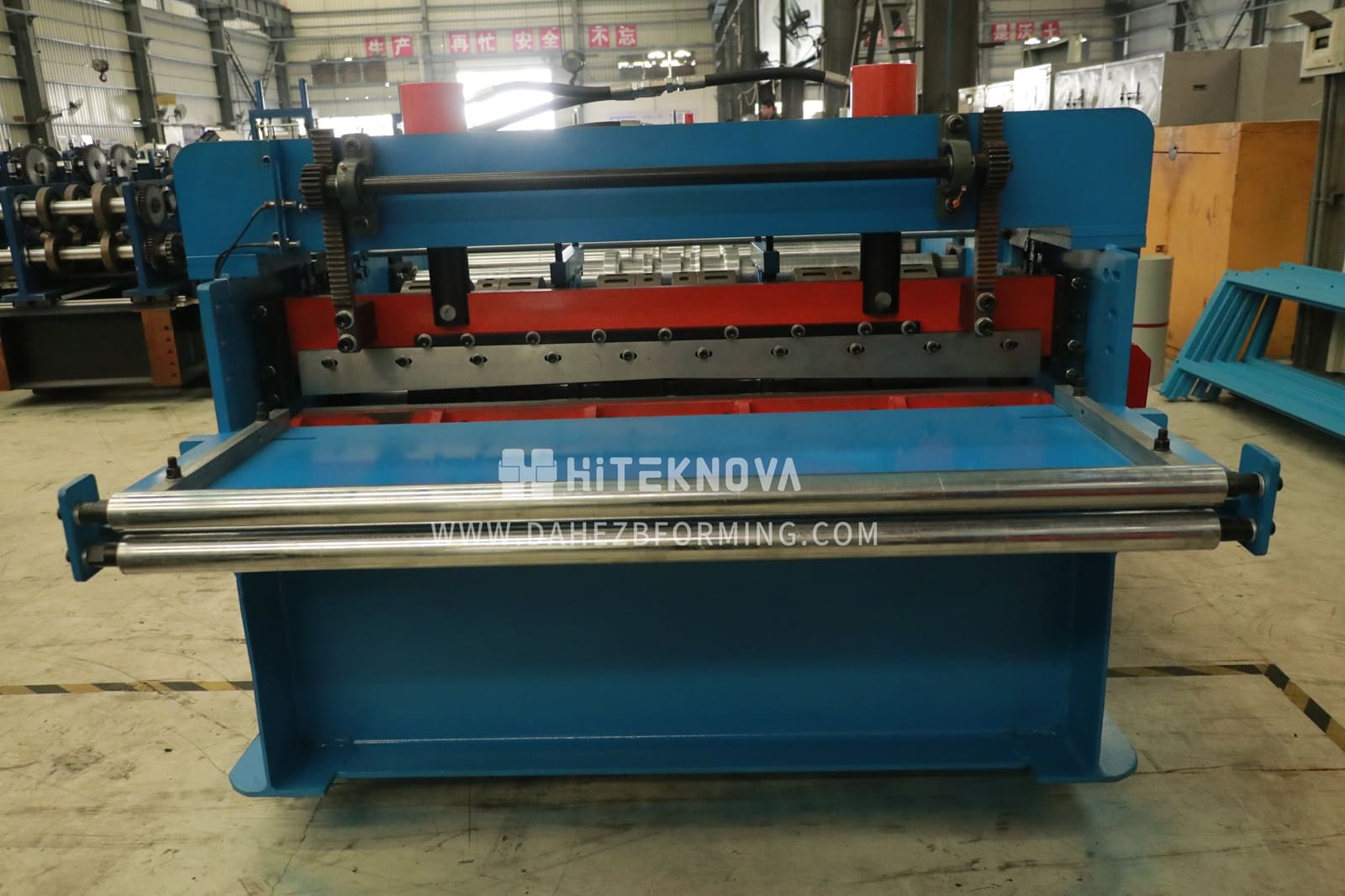

YX-Floor Deck Roll Forming Machine

DETAILS

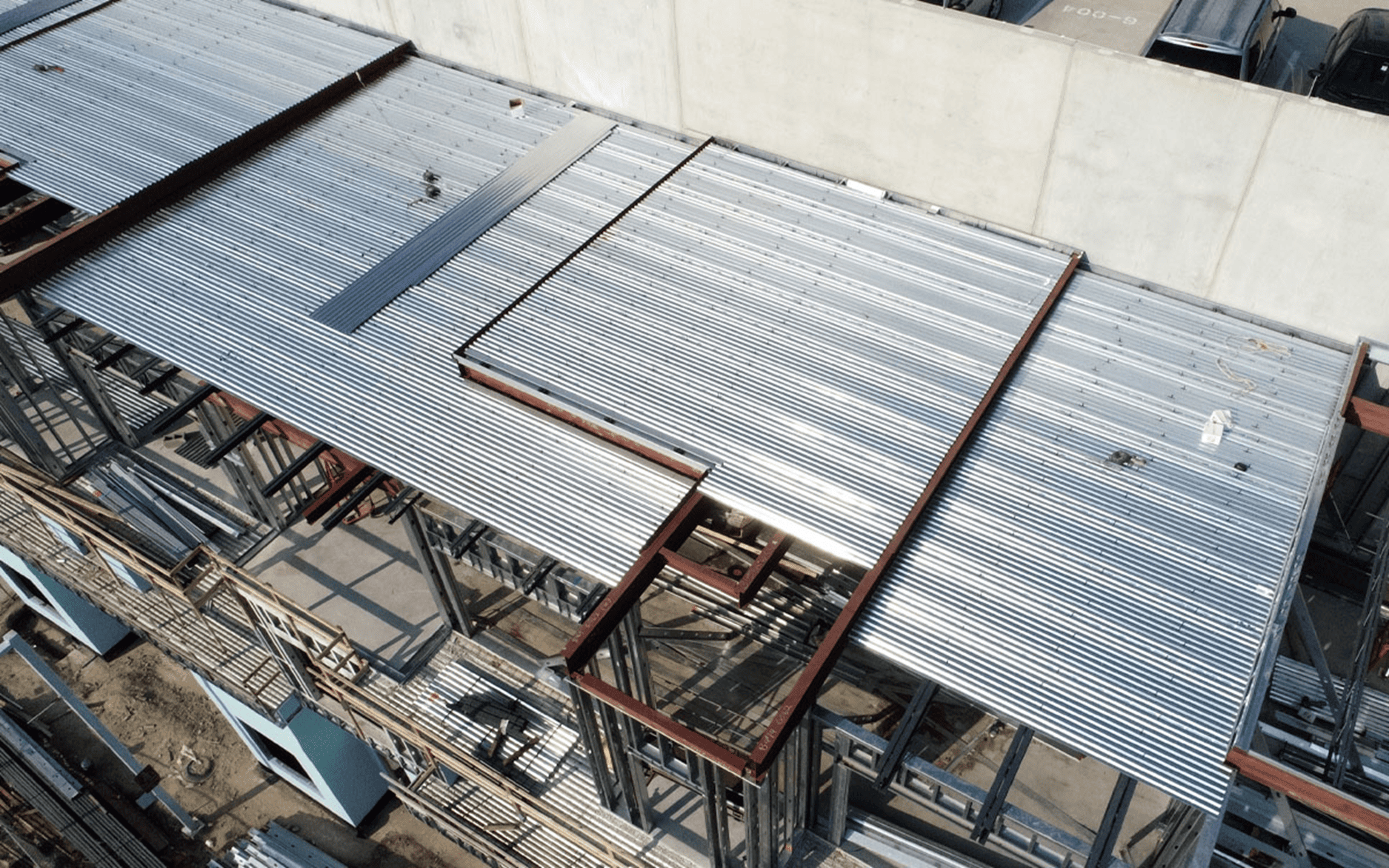

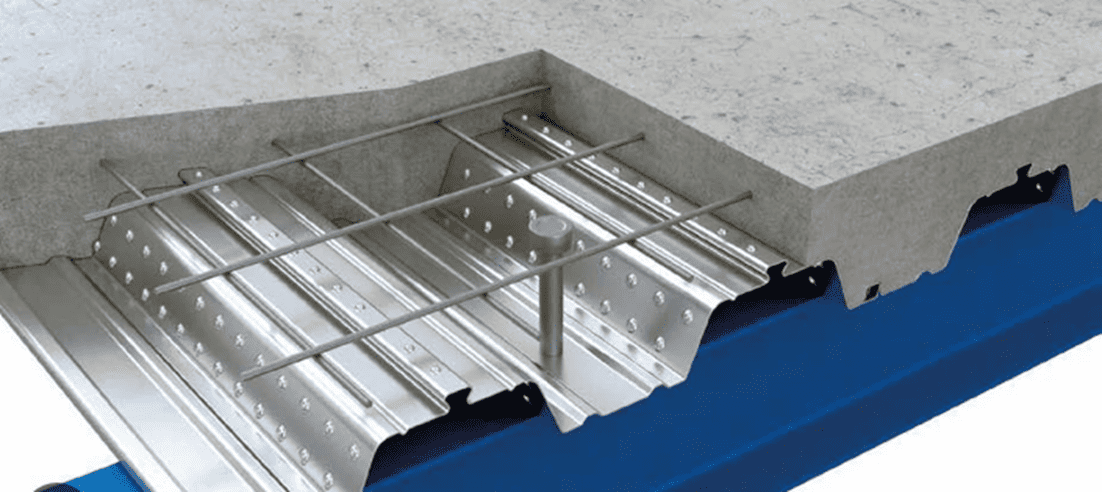

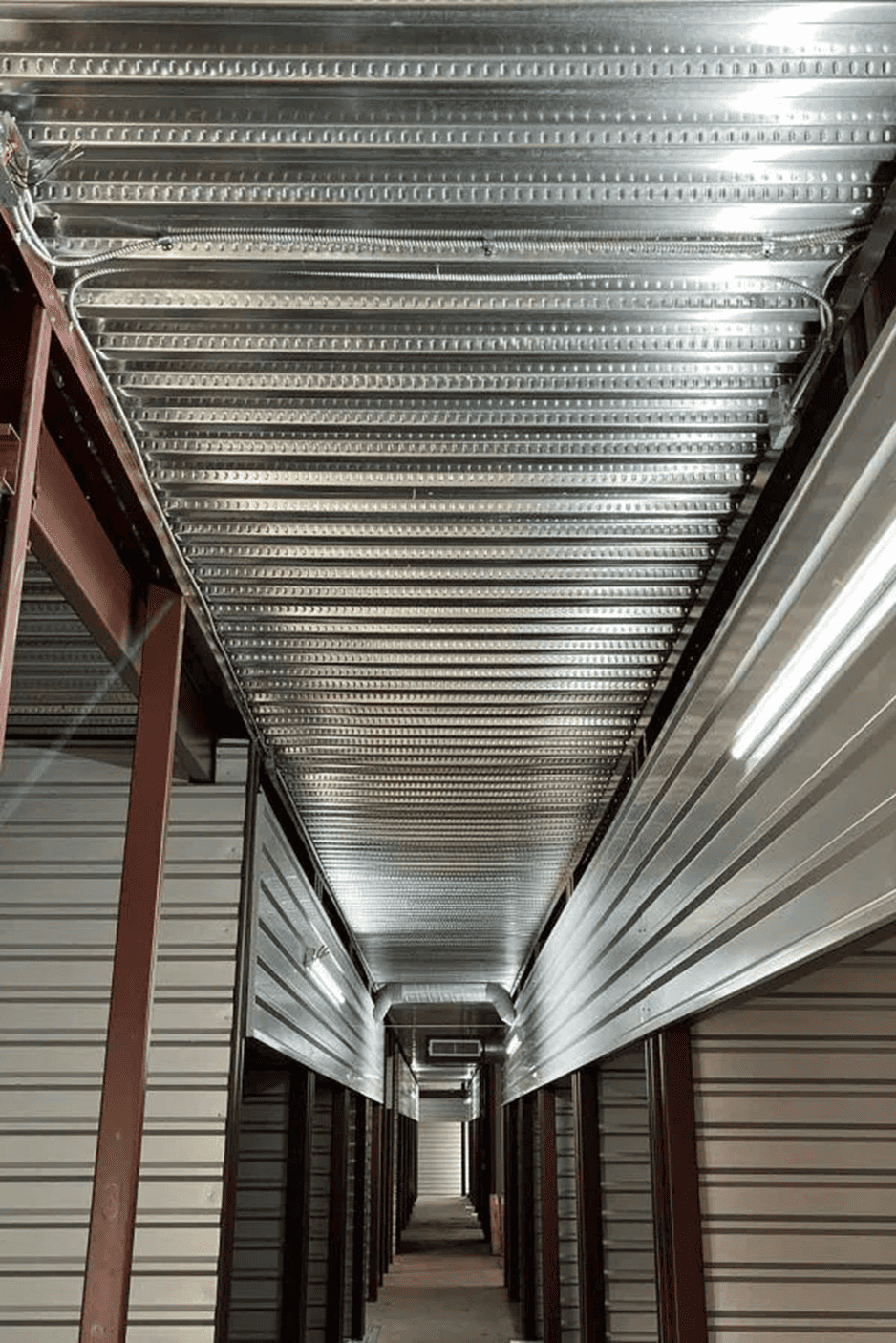

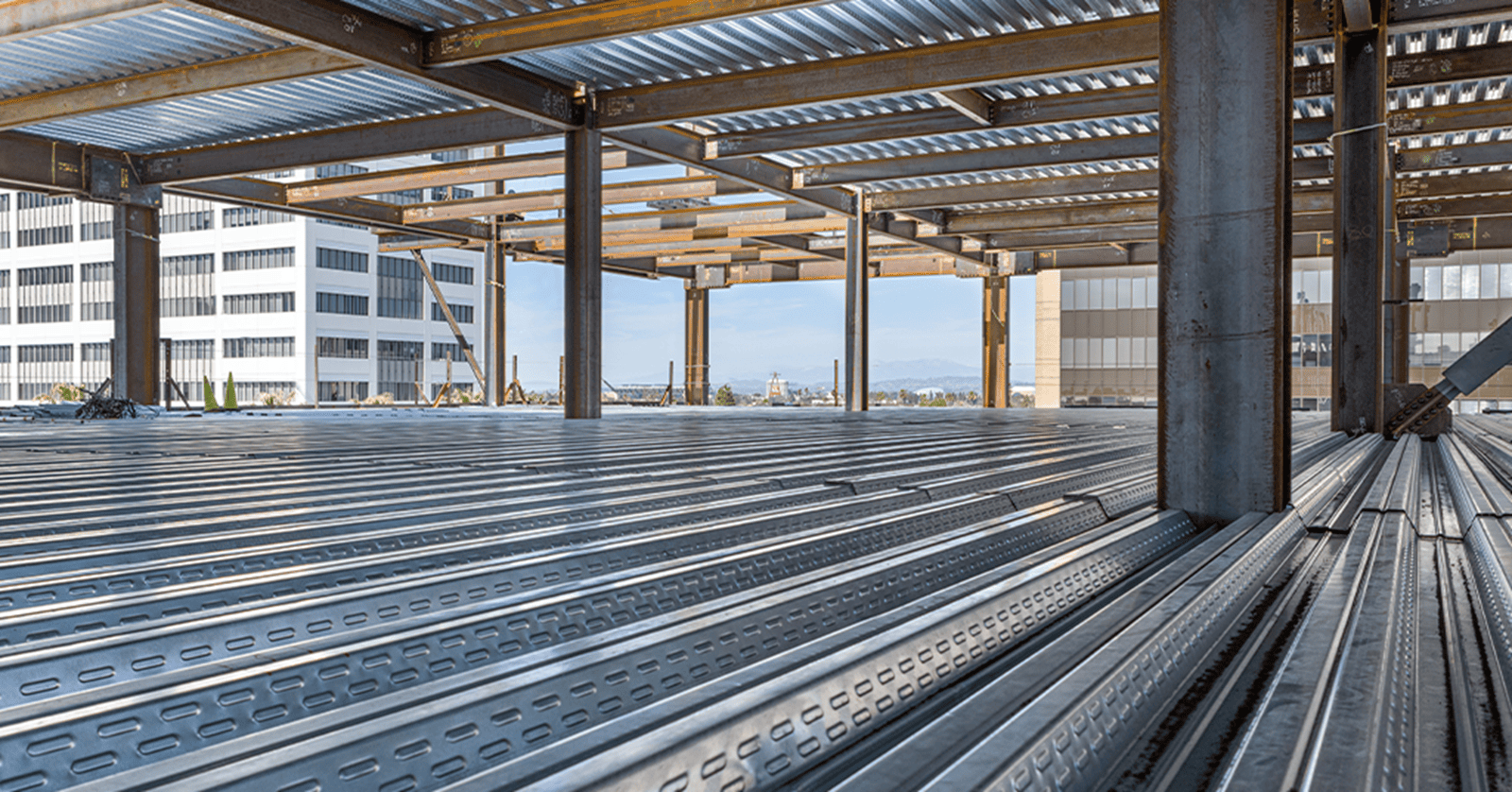

The YX-Floor Deck Roll Forming Machine is a robust and high-efficiency roll-forming solution specifically engineered for the production of steel floor deck panels used in composite floor systems and structural decking applications. Designed to meet the demands of modern building construction, this machine delivers stable forming performance, consistent profile geometry, and reliable productivity for medium- to large-scale floor deck manufacturing.

The YX-Floor Deck system produces panels with an effective width of 620 mm (±5 mm) from a feeding width of 1000 mm, and supports material thicknesses ranging from 0.8 to 1.2 mm using galvanized steel sheets. With a maximum line speed of approximately 20 m/min, the machine ensures efficient throughput while maintaining accurate profile dimensions and surface quality.

Quick detail
Item	Specification
Model number	YX-Floor Deck Roll Forming Machine
Machine Function:	floor deck panels
Drive Motor Power	2*11KW

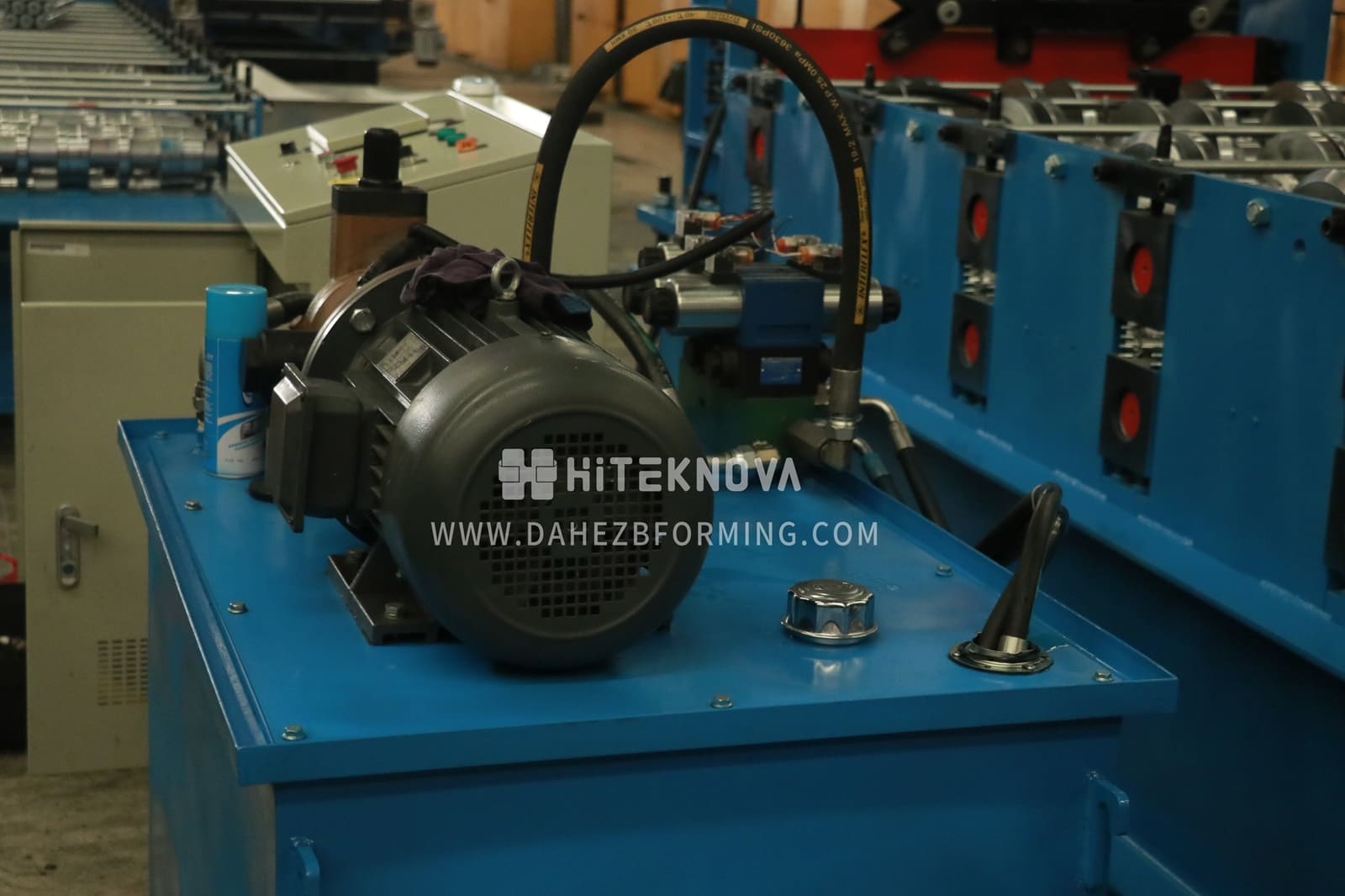

Hydraulic Power	5.5KW

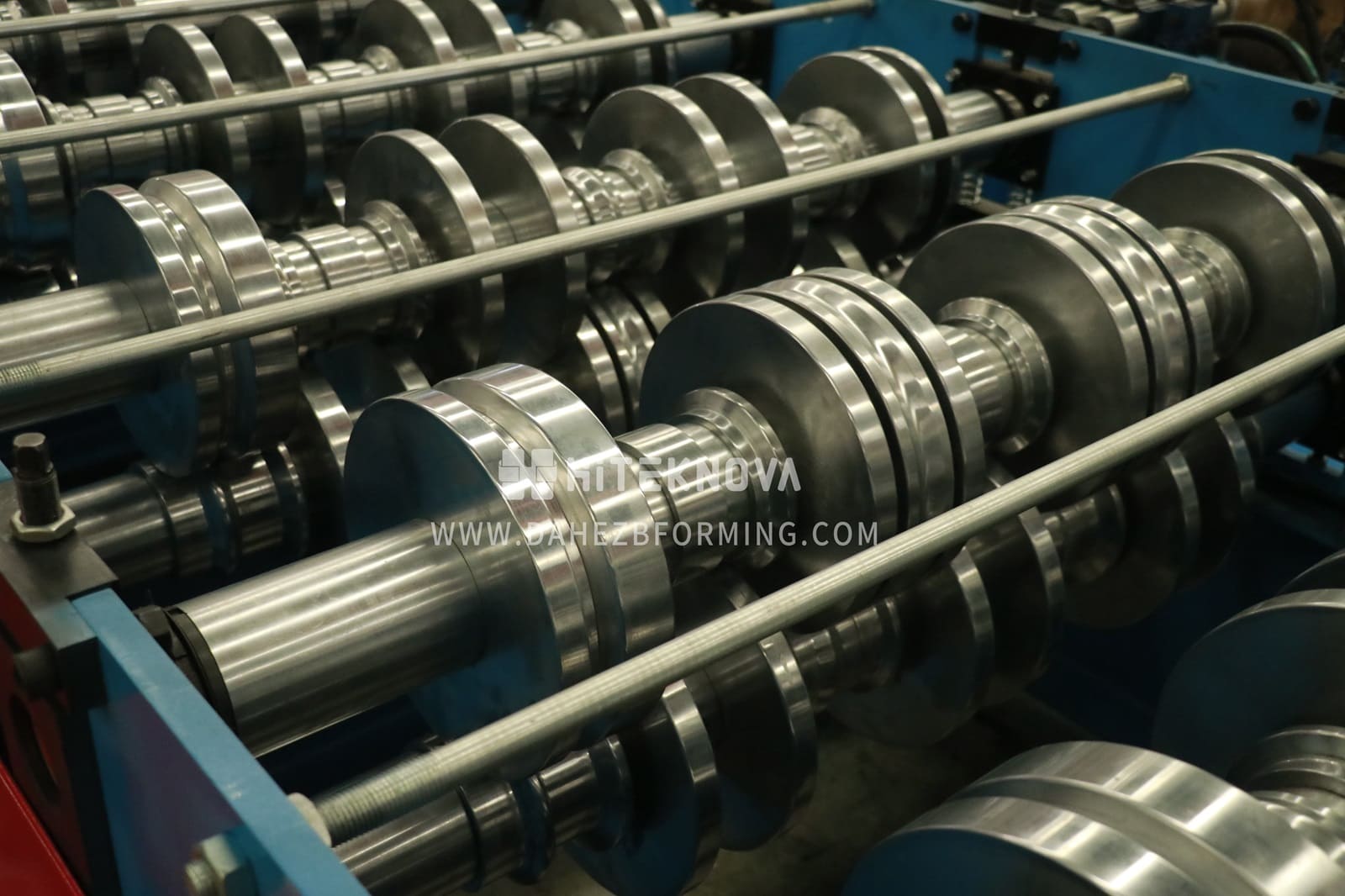

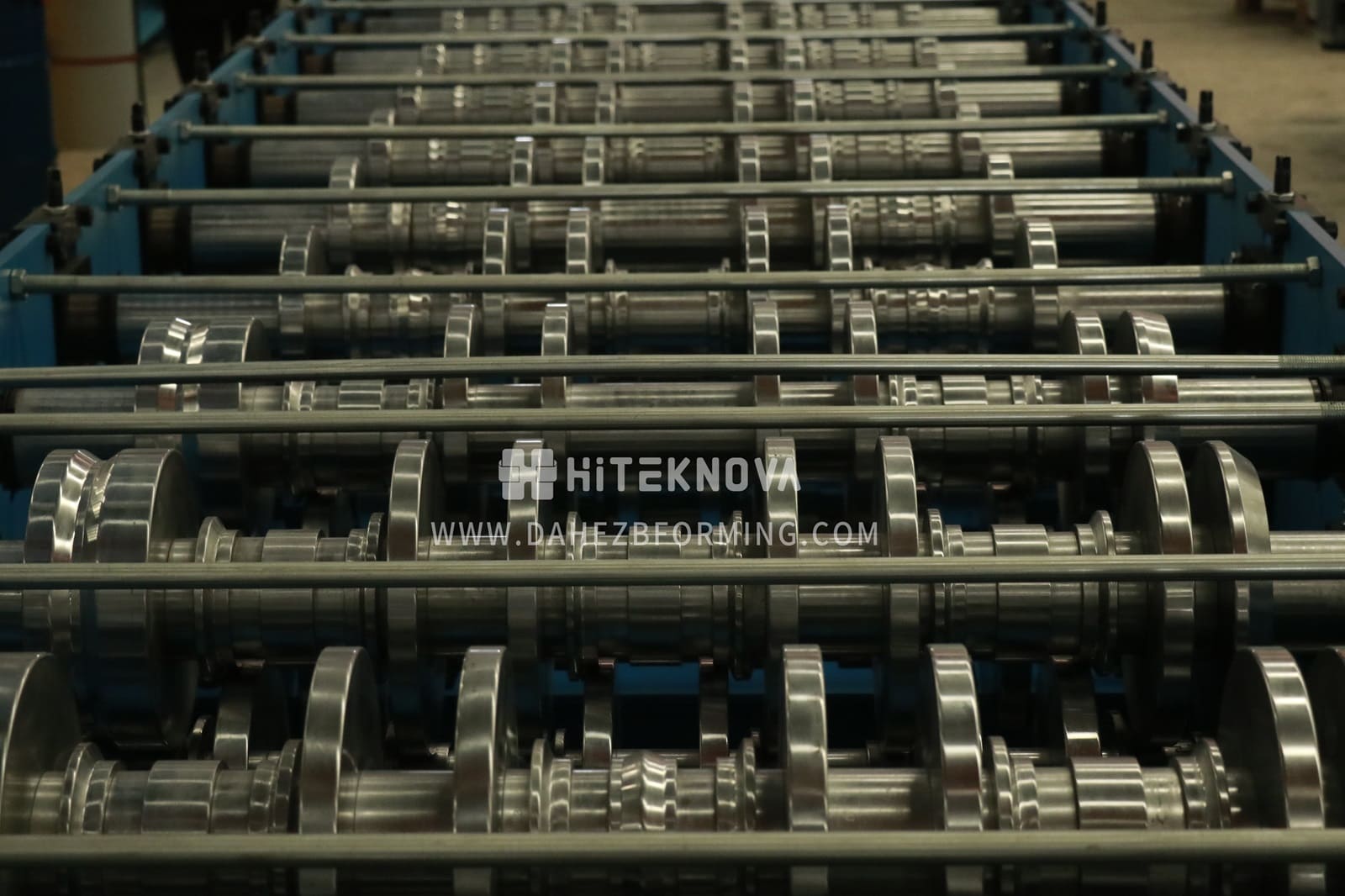

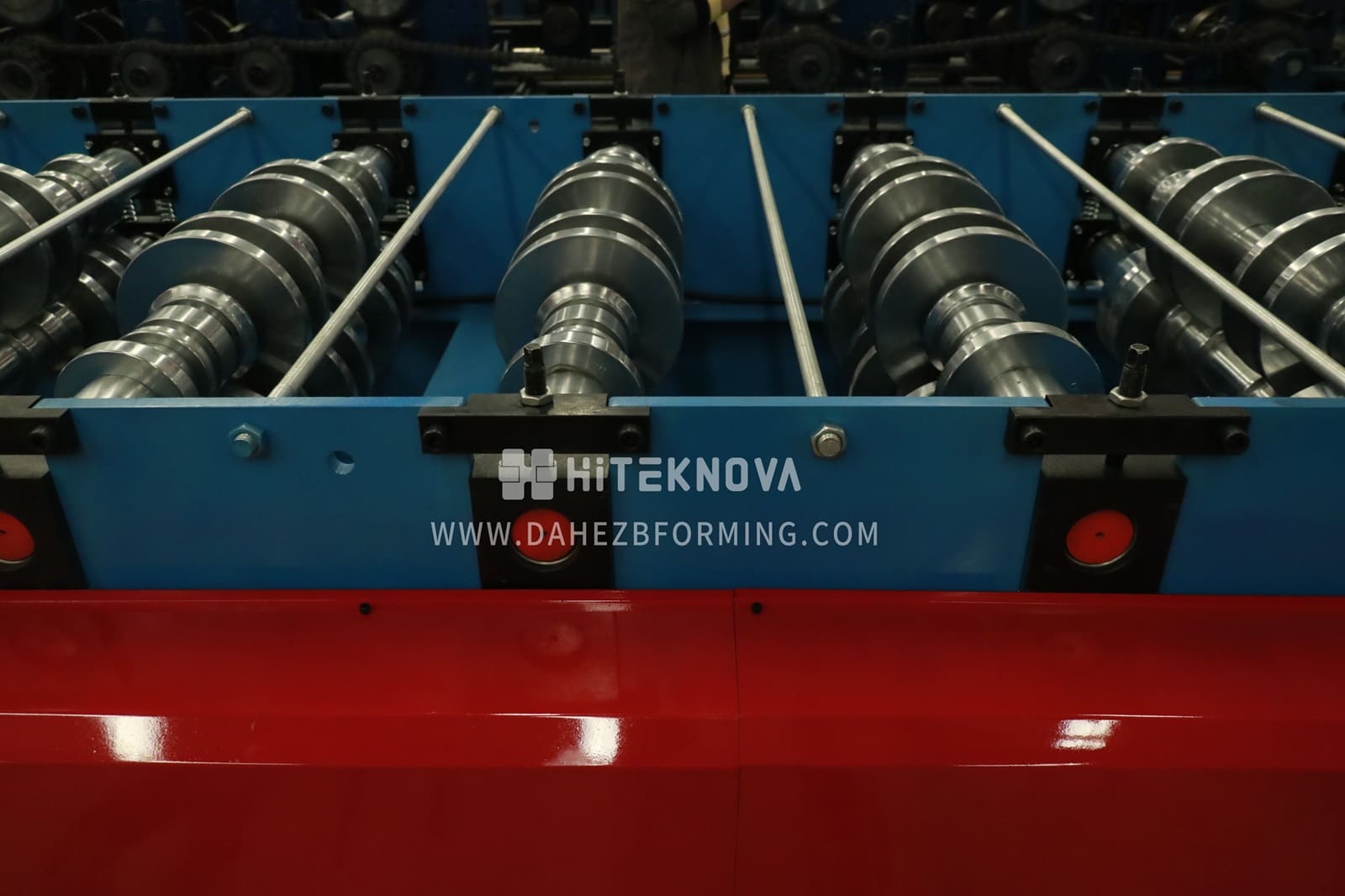

Forming Stages	24
Line Speed	20m/min

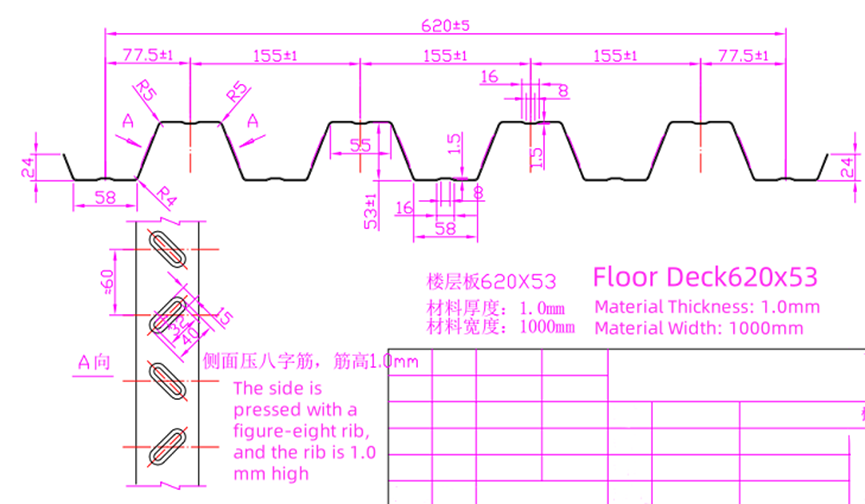

Products Specification	Effect width：620mm+-5mm Feeding width：1000mm Material：Galvanized sheet镀锌板
Thickness	0.8-1.2mm
