DETAILS

Model:KB252-30

Dimensions:252*64*3.0(mm)

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation Instructions

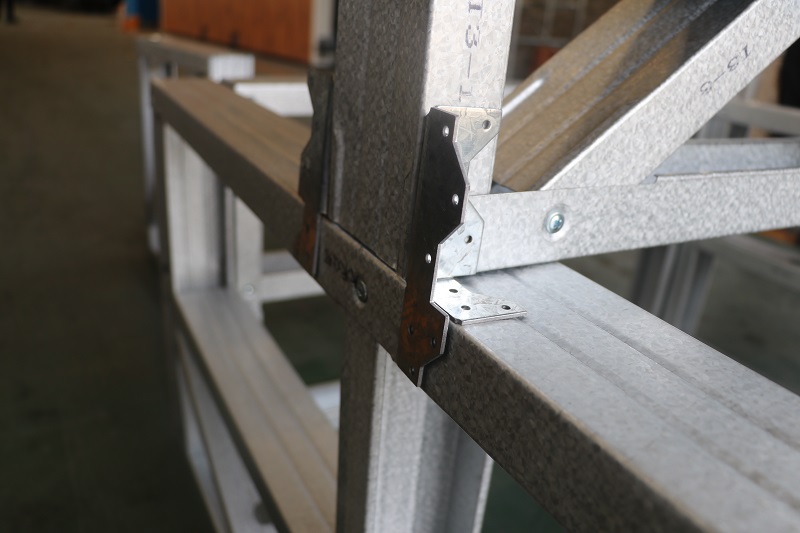

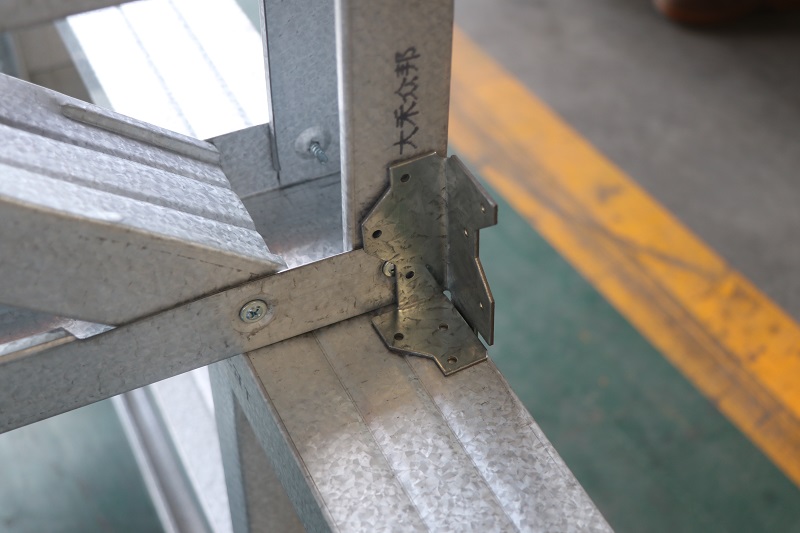

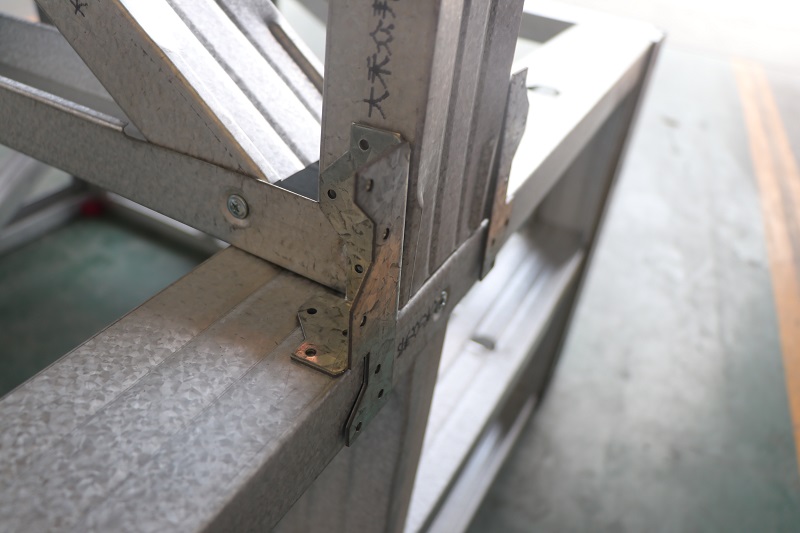

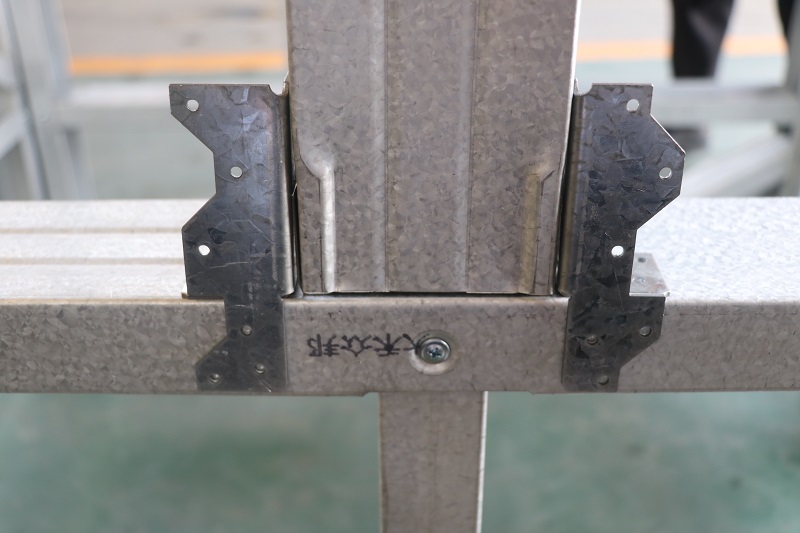

The anti-pullout connect parts are installed in the wall LGS, normally, the anti-pullout parts used interval with expansion bolt, used to connect the ground floor to the foundation,used to connect between floors. Fix the side on the vertical LGS with hexagonal round head drill tail screw, the basic is fixed with M16 anchor bolt (bolt, chemical anchor bolt) , 30-50 mm gap is left for anti-earthquake.

Anti- pullout parts, Interval, Foundation, Gasket, M16 bolt, Chemical anchor bolt, Expansion bolt

Introduction

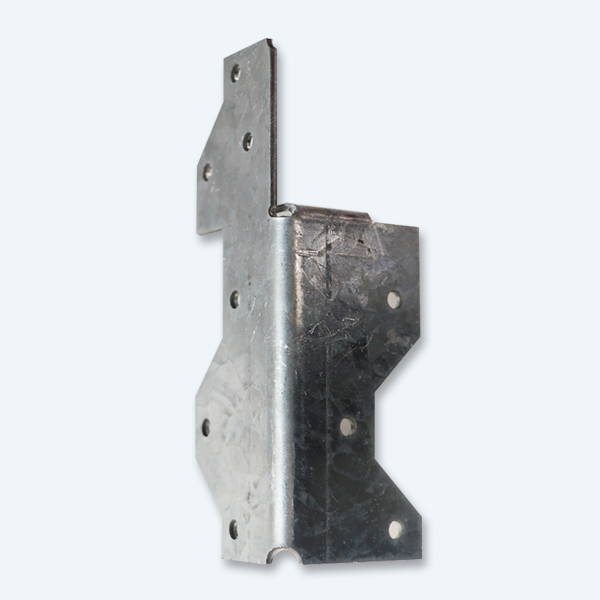

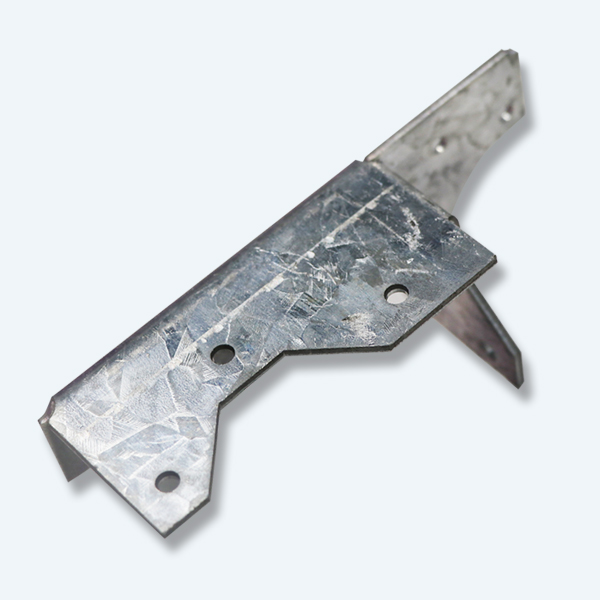

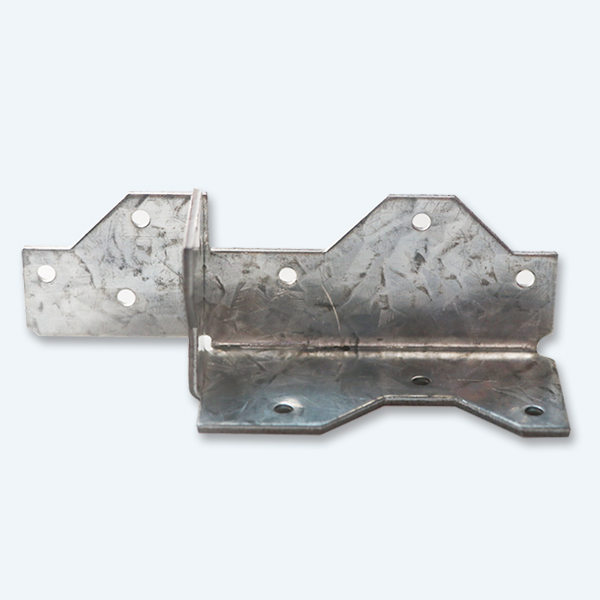

The optimized design of the anti-pullout parts,which add the stiffener in vertical side, it can effectively prevent deformation in the process of pullout, and the bottom bolt hole is integrated forming, which makes the position more accurate.

Installation Diagram – Connection between floors – Connect the ground floor to the foundation
