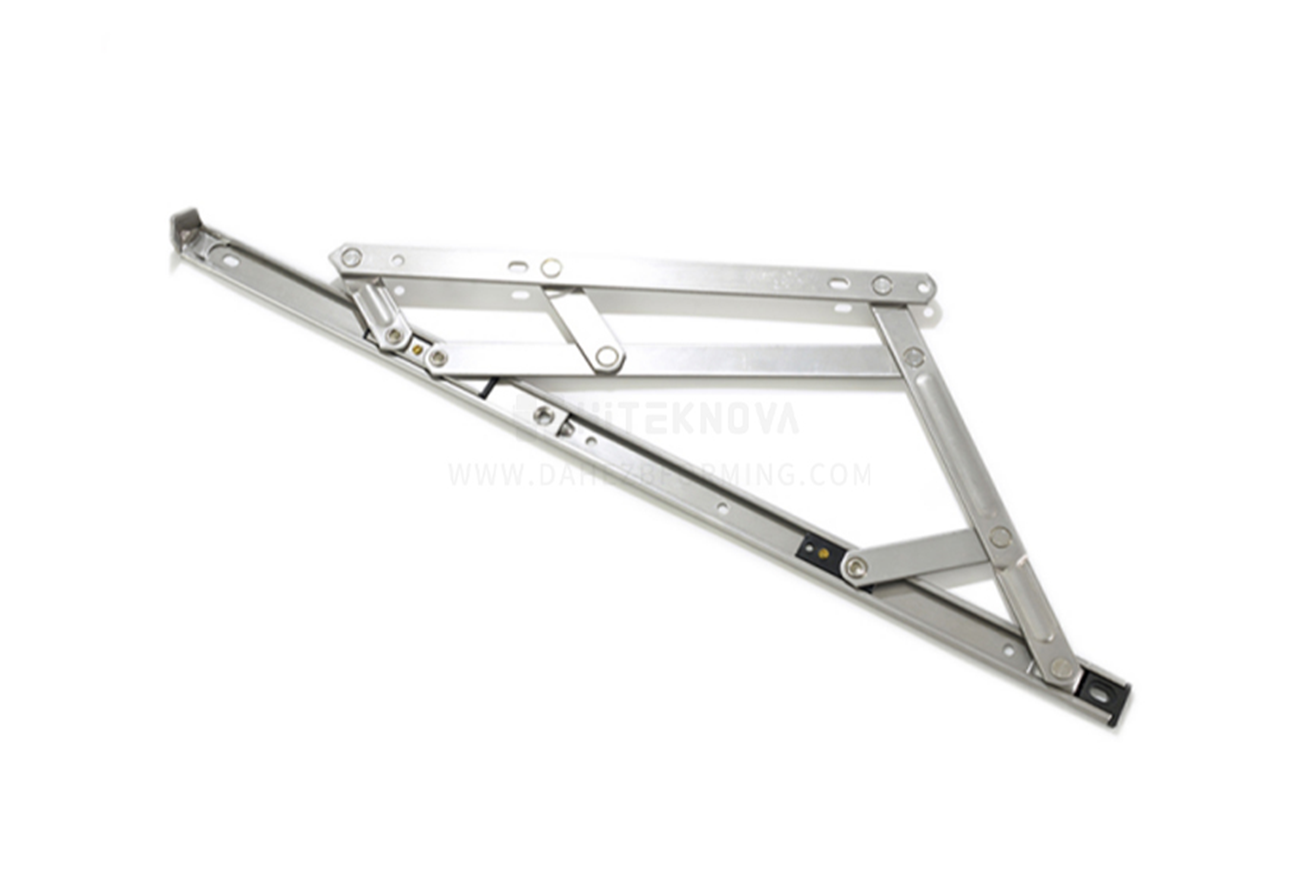

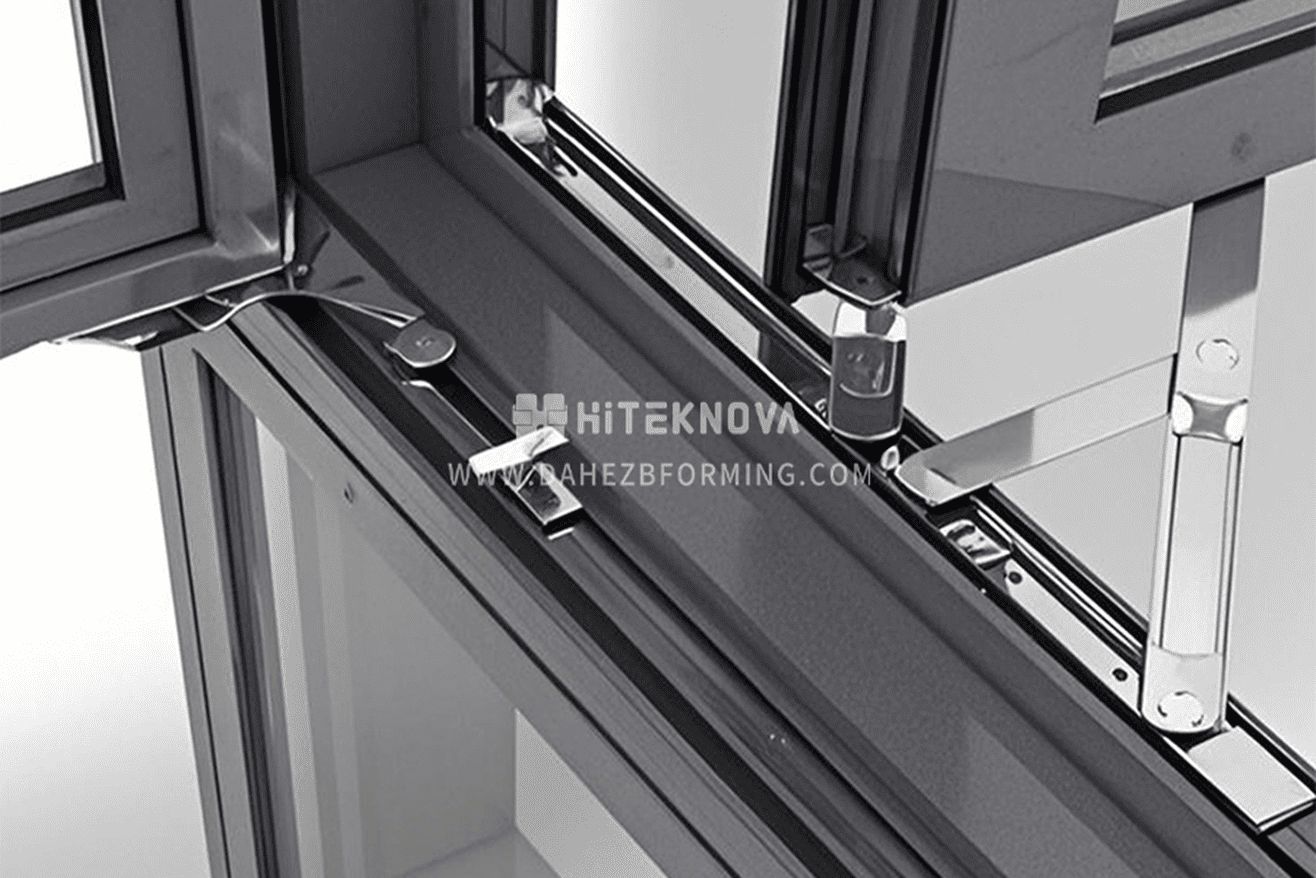

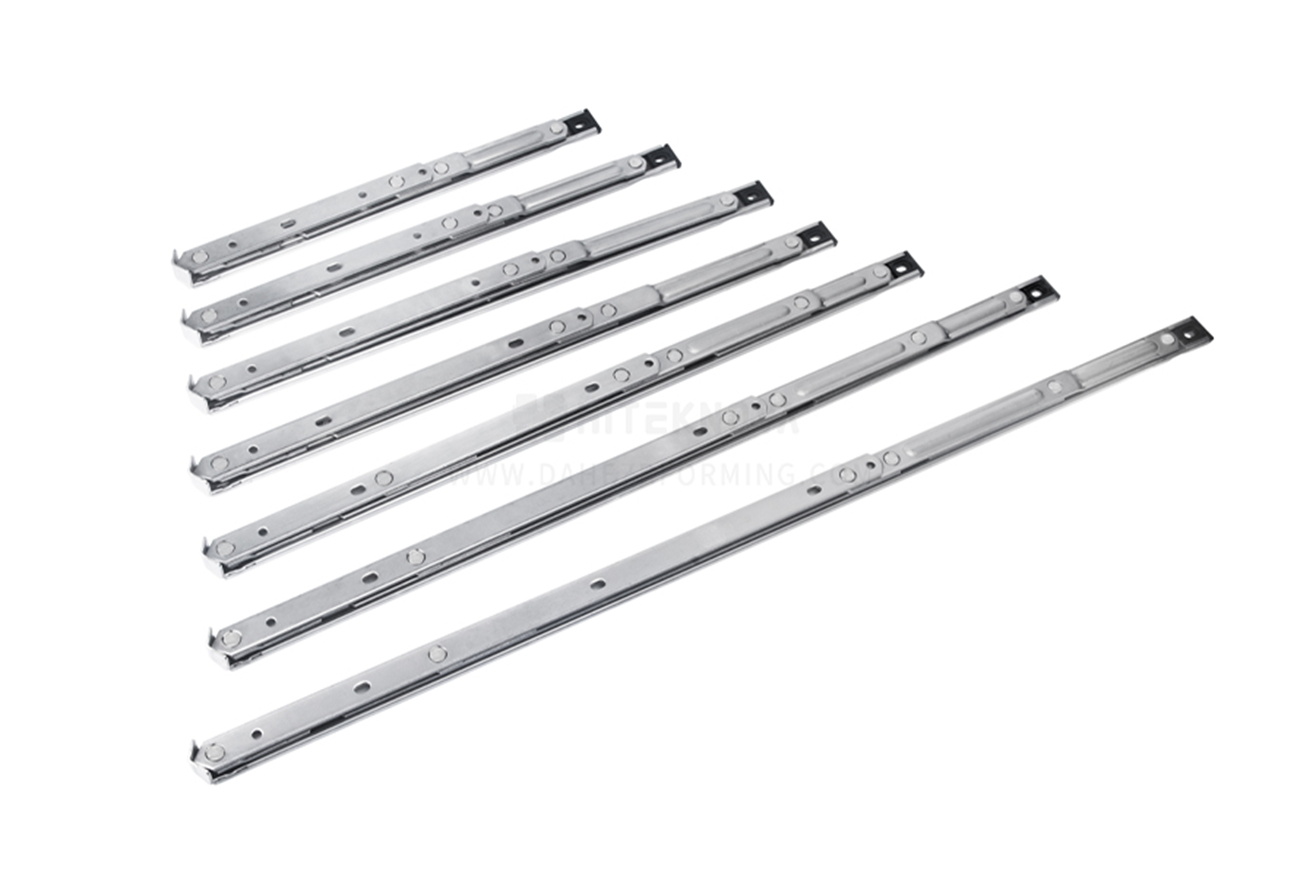

This machine is for C-type hinges—key hardware for doors, windows, and cabinets.It makes hinges with slot widths of 13.5mm, 19mm, 22mm, etc. An advanced servo system ensures stable precision, smooth friction adjustment, and minimal waste. It supports customization for dimensions, specs, and surface treatments.Easy to operate, low maintenance, 25–30 pcs/min speed. Meets strict quality standards—ideal for custom-focused hardware makers.
| Equipment | Parameter |
| De-coiler | Material Width：≤200mm
Max Load Capacity：1.5t Feeding Speed：6-10m/min Expansion Mode：Manual Expansion Transmission Mode：Power-Driven |
| Roll Forming Machine | Roller Group Quantity：16 Groups
Roller Material：Gr12MoV Drive Motor：7.5KW Servo Motor Transmission Mode：Gear Transmission Control Mode：Human-Machine Interface Length Fixing Mode：Optical Fiber/Encoder Wheel Production Speed：25-30pcs/min |
| Hydraulic Press | Power：11KW
Punching Frequency：35 Cycles/min Hydraulic Oil Type：No.60 Hydraulic Oil Cooling Mode：Air-Cooled |
| Punching & Cutting | Mold Structure：3-Plate 4-Column
Process Method：Hydraulic Shearing/Punching After Forming Disassembly Mode：Quick-Change Structure Mold Material：DC53 |
| Electric Control System | Core Function：Adjustable Length & Speed
PLC：Mitsubishi Frequency Converter：Sine/Chinese Famous Brand Encoder：Japanese Brand |
| Product | Materials | DC04 LC MA EN10139 |
| Forming | Speed | Stable production speed: 25 pcs/min; 29 pcs/min can be achieved under certain conditions but not recommended for long-term operation |
| Main Forming | 14 forming group | |
| Roller material | Cr12 | |
| Shaft material | 40Cr(Diameter 50mm) | |
| Cutting & Punching & Bending system | Motor | Servo motor （Inovance） |
| Power | 2.3KW | |
| Type | Hydraulic cutter | |
| Materials | SKD11 | |
| Control system | Motor | Hydraulic motor |
| Power | 7.5KW | |
| Voltage | 380V 50Hz,3 Phase | |
| Machine Component | Decoiler | 1T |
| Receiving Frame | Roller receiving table | |
| Brand | PLC | Inovance |
| Inverter | Inovance | |
| Main Motor | Inovance | |
| Electrical Accessories | Omron | |
| HMI (Human-Machine Interface) | Inovance | |
| Machine | Size | Length 5.8m *Width 1m *Height 1.3m |
| Weight | About 3.5T | |
| Safety & Operation | Operation Mode | No manual contact required during normal production |
| Safety Protection | Protective cover + emergency stop | |
| Commissioning Requirement：Adjustment must be done under stop & power-off condition Safety Restriction：It is strictly prohibited to place hands into forming area during operation |
||
| Enclosure & Safety Level | Enclosure & Safety Level | Fully enclosed protective cover (openable for maintenance) |
| Safety Type | Mechanical protection (no safety interlock in standard configuration) | |
| Technical Documentation | Hydraulic Cylinder | Model & specifications provided |
| Wear Parts Drawings | Available (cutting blade, punching die, punch, etc.) | |
| Forming Rollers | Not included in standard documentation (core forming components) | |
| After-sales Support | Technical support provided | |
| Operation Process Video | Coil replacement process | Operation process videos will be recorded after machine production is completed and provided to the buyer for reference. |
| Machine startup procedure | ||
| Full machine operation | ||

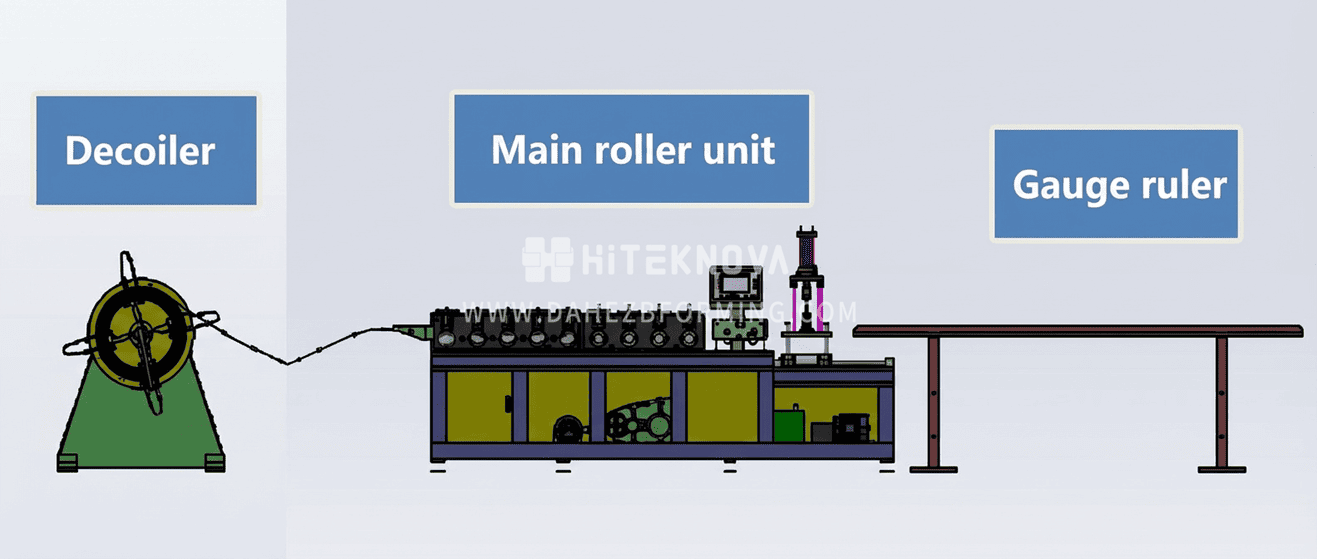

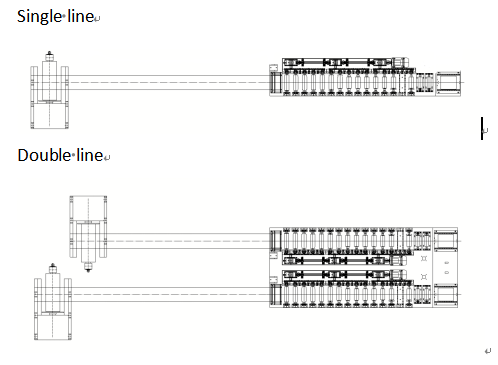

Flow Chart: Decoiler → Feeding and leveling → Main roll forming → Cutting → Receiving Frame

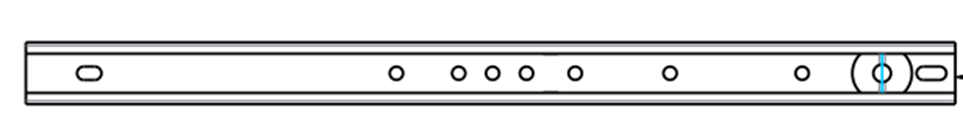

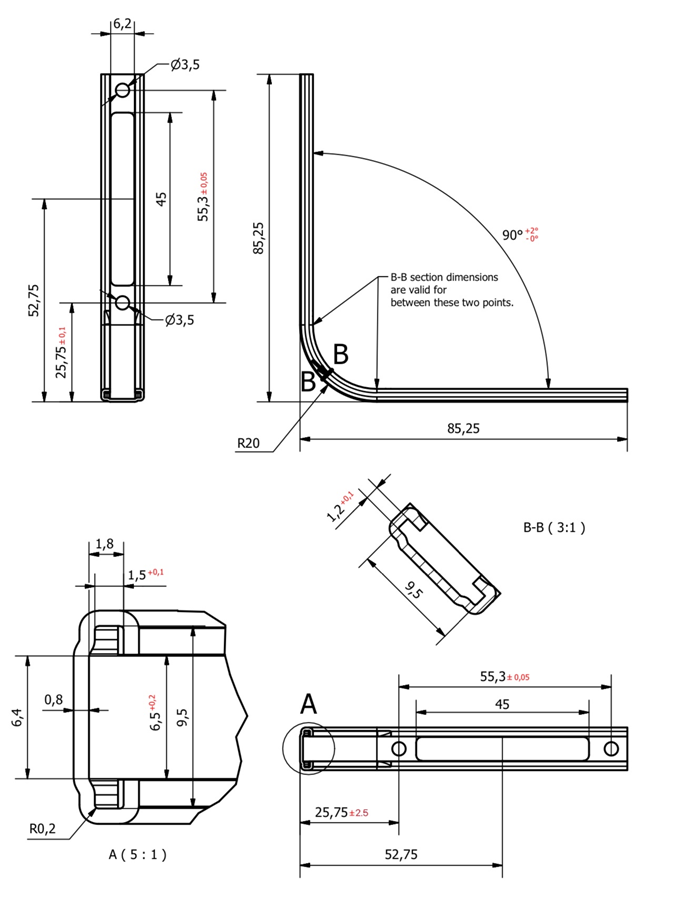

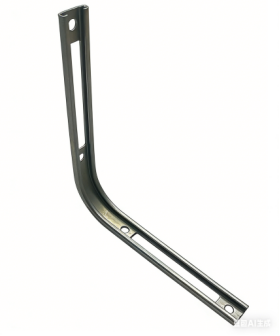

Profile Drawing:
Technical Features
- Multi-station roll forming process ensures stable shaping
- High forming precision up to ±0.15 mm (depending on material)
- Compatible with various materials such as GI and stainless steel
- Equipped with automatic punching and cutting system
- Easy operation with high automation level
Installation:
This machine is suitable for producing:
- Window and door track profiles
- Sliding track systems
Customization & Service
We provide customized solutions based on customer drawings or samples, along with full technical support and after-sales service to ensure stable machine operation.
